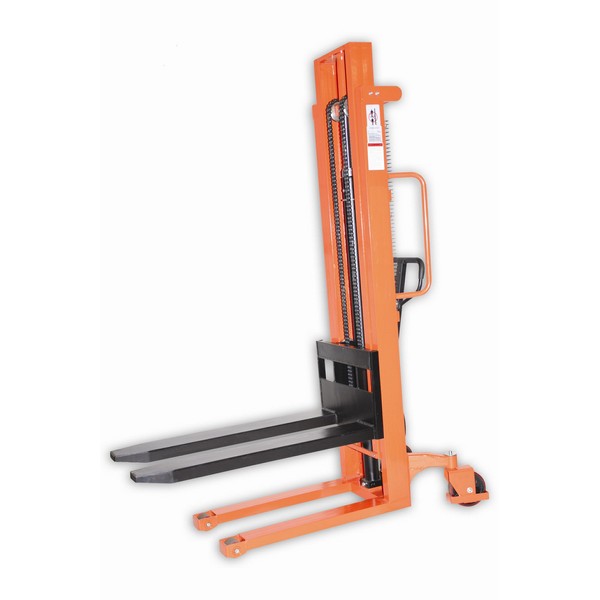

Warrior Manual Stacker
The Warrior range of stacking equipment has been designed, developed and built to give outstanding long service with minimum maintenance required and assist with all manner of lifting, stacking, de-stacking, pallet handling etc.. within industry and commerce. A sound long term investment!
Our Warrior Manual Stacker is manually operated and very easy to use. With its powerful hydraulics system it will lift your load and enable the operator to precisely position it as required. Whether it’s into a rack or onto a vehicle the stacker will make easy work of occasional lifting applications.
Simple and easy to operate, lift is by means of a manually operated hydraulic pump unit and lowering is effected by a “deadmans” release trigger in the pulling handle.
Description
- 1000 kg maximum load capacity
- Pulling handle
- Brakes
- Steer wheel foot guards
- Full guarding
- Tandem lift chains
- Manual lift
- Manual travel
- Hard wearing nylon wheels & load rollers
- Maximum lift heights up to 3000 mm (depending on model)
- Adjustable forks (some models)
- CE Marked
- Issued with a test certificate in conformance with EU standard on request
- Full 12 month on site warranty
| Overall Dimensions (L x W x H) |
Ground Clearance | Load Centre | Adjustable Forks Fitted | Fork Dimensions (L x W) |
Width Over Forks | Minimum Lowered Height | Maximum Lift Height | Rollers | Parking Brake Fitted | Model Number |
|---|---|---|---|---|---|---|---|---|---|---|
| 1488 x 850 x 1980 mm | 20 mm | 450 mm | Yes 800 mm spread |
900 x 140 mm | 300 mm | 80 mm | 1600 mm | Single | Yes | WRVFS1016 |
| 1496 x 800 x 2060 mm | 23 mm | 450 mm | Yes 740 mm spread |
900 x 140 mm | 300 mm | 80 mm | 3000 mm | Single | WRVFS1030 |
