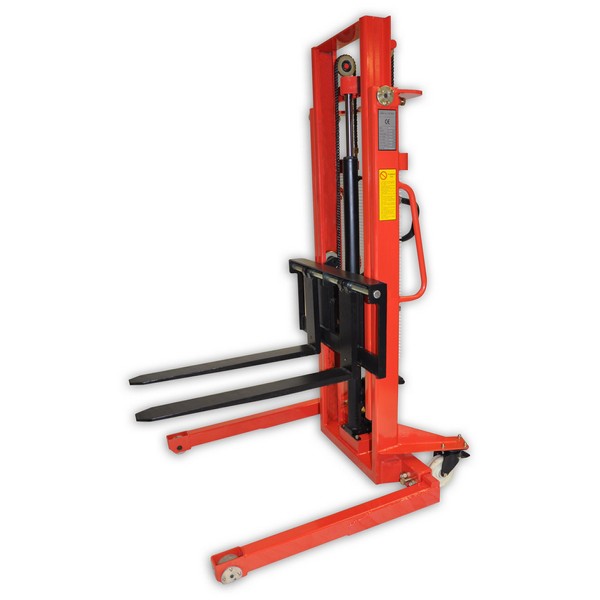

Warrior Manual Straddle Stacker
The Warrior range of stacking equipment has been designed, developed and built to give outstanding long service with minimum maintenance required and assist with all manner of lifting, stacking, de-stacking, pallet handling etc… within industry and commerce. A sound long term investment!
Our Warrior Manual Straddle Stacker is manually operated and very easy to use. With its powerful hydraulics system it will lift your load and enable the operator to precisely position it as required. Whether it’s into a rack or onto a vehicle the stacker will make easy work of occasional lifting applications. The “straddle” allows lifting of “Full Perimeter Board” pallets like the Blue “Chep” Pallets found in some UK warehouses.
Simple and easy to operate, lift is by means of a manually operated hydraulic pump unit and lowering is effected by a “deadmans” release trigger in the pulling handle.
Description
- 1000 kg maximum load capacity
- 1240 mm inside straddle width
- 1150 mm fork length
- Adjustable forks fitted
- Pulling handle
- Brakes
- Steer wheel foot guards
- Full guarding
- Tandem lift chains
- Single rollers
- Manual lift
- Manual travel
- Hardwearing nylon wheels & load rollers
- Maximum lift heights up to 3000 mm (depending on model)
- Adjustable forks
- CE Marked
- Issued with a test certificate in conformance with EU standard on request
- Full 12 month On Site Warranty
| Overall Dimensions (L x W x H) | Turning Radius | To Fit Forks (Spread) | Width Over Forks | Minimum Lowered Height | Maximum Lift Height | Model Number |
|---|---|---|---|---|---|---|
| 1580 mm x 1080 mm 2020 mm | ø 1250 mm | 700 mm | 330 mm | 85 mm | 1600 mm | WRMSS1016 |
| 1480 mm x 1080 mm x 1770 mm | ø 1650 mm | 800 mm | 210 mm | 75 mm | 2500 mm | WRMSS1025 |
| 1480 mm x 1080 mm x 2020 mm | ø 1650 mm | 800 mm | 210 mm | 75 mm | 3000 mm | WRMSS1030 |
