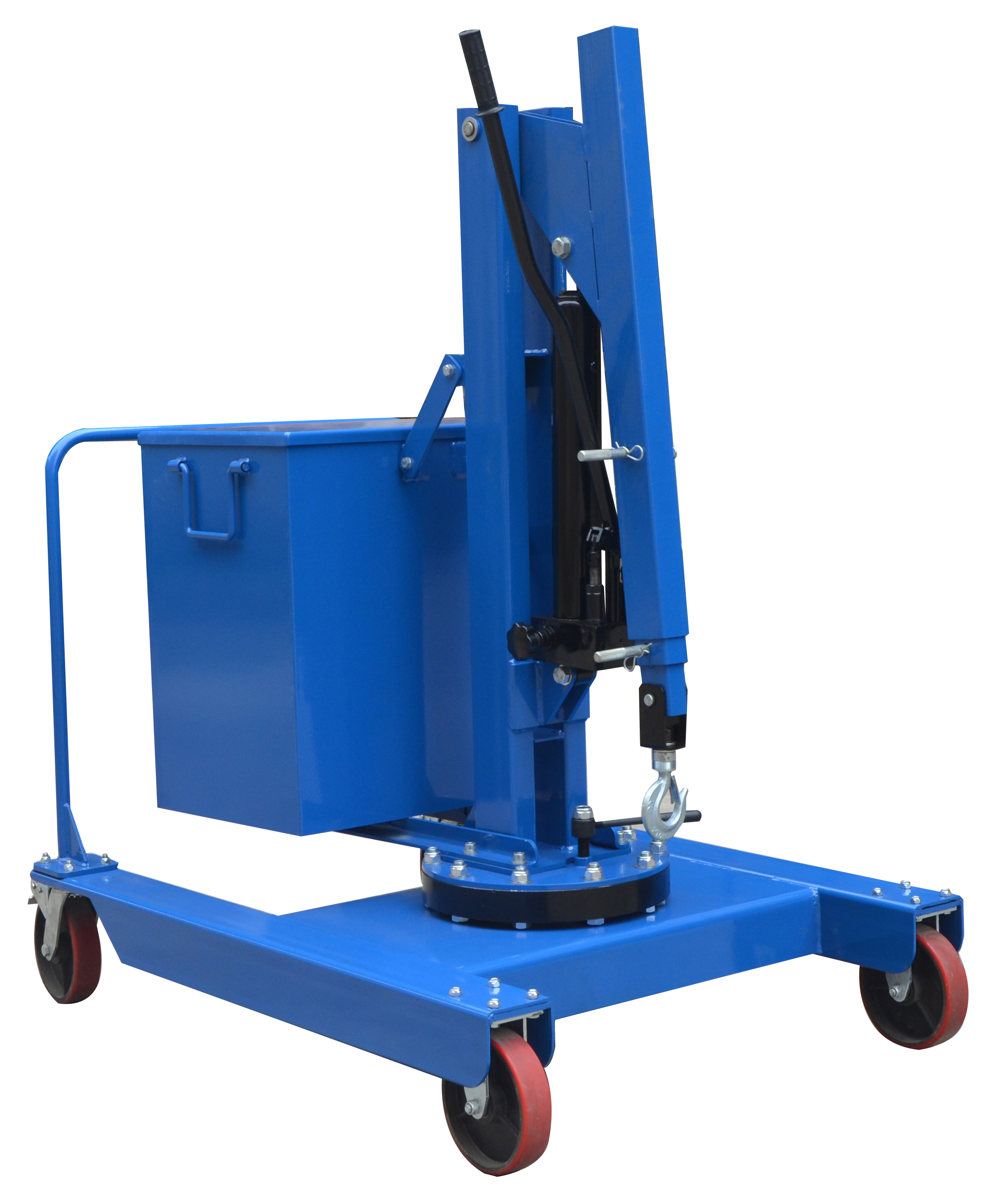

Warrior 550kg Manual Rotating Counterbalanced Shop Crane with Slewing Jib

Description

Featuring a 360-degree slewing jib, the Warrior 550kg Manual Rotating Crane is ideal for making the most of confined workshop spaces. Mounted on a precision-engineered slewing ring, a built-in counterbalance provides stability during operation. Additionally, the manually adjustable four-position jib provides great flexibility for handling a wide range of loads.

Moreover, this mobile unit is designed to accommodate businesses who prefer an adaptable layout over fixed structures. It includes a light double-acting hand hydraulic pump, swivel hook, adjustable knob and block valve for overload protection. So, you can be sure of the highest safety standards during operation.

With a compact design and a heavy-duty construction, the Warrior Manual Rotating Crane is your ideal lifting solution, requiring no operating license. This model is CE marked, and we test your purchase with a 25% overload before delivery. In addition, it arrives fully assembled with a counterbalance included.

Key Features – Warrior Manual Rotating Crane with Slewing Jib:

• 550kg Maximum Load Capacity
• 360-degree Pivoting Arm
• Four-position Manually Adjustable Jib
• Double-acting Hand Hydraulic Pump
• Swivel Hook with Block Valve

Basic Dimensions:

• Overall Dimensions: 1400 x 985 x 1600mm
• Wheel  Diameter: 200mm
• Balance Weight: 250kg
• Net Weight: 612kg
• Tank Capacity: 1 Litre

Outreach with standard jib:

1: 1900mm adjustable position at 550kg capacity with 977mm turning radius
2: 2160mm adjustable position at 450kg capacity with 1267mm turning radius
3: 2260mm adjustable position at 350kg capacity with 1560mm turning radius
4: 2450mm adjustable position at 250kg capacity with 1850mm turning radius
5: 2600mm adjustable position at 150kg capacity with 2140mm turning radius

This crane is covered by our warranty – click here to learn more.
