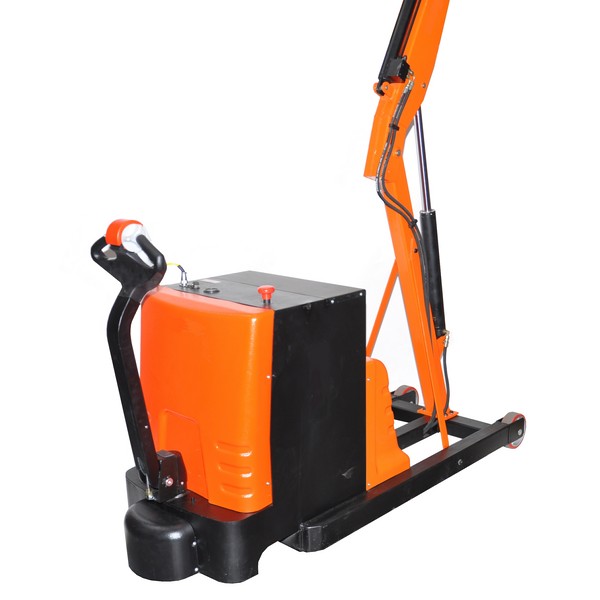

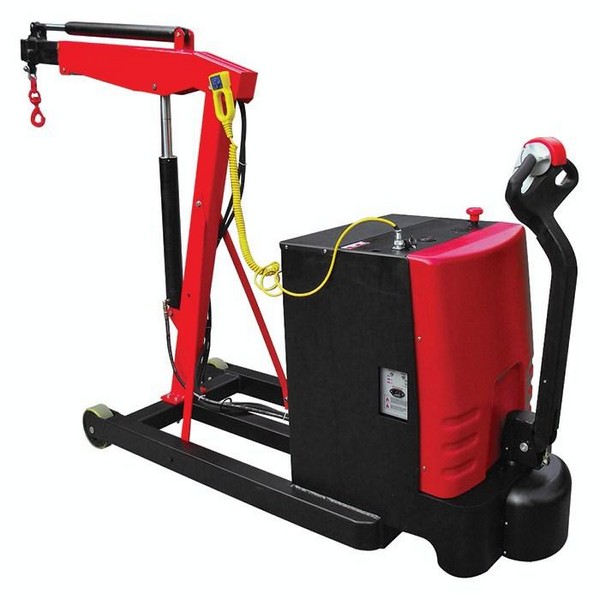

Warrior Pedestrian Controlled Power Driven Counterbalanced Floor Crane
The Warrior Pedestrian Controlled Powered Counterbalanced floor crane is an ideal machine to assist in the access of those hard to reach areas where the traditional outrigger cranes cannot reach.
The Warrior 700 is a counterbalanced floor crane with added power for handling and transporting heavy loads up to 700kg.
This electric floor crane has a compact 763mm width and powered drive so it can be easily manoeuvred into position on congested sites. Ideal for handling industrial equipment, stacks of building materials and unitized glazing when fitted with a vacuum lifter, the Warrior 700 has supportive struts on its base and can travel at a speed of up to 2.5km/h with a load.
With a convenient on-board battery charger, the Warrior 700’s powered boom can move up and down as well as telescoping in and out for precisely lifting loads from the ground up. This floor crane takes the strain out of lifting to a height of 3.3 metres and has a maximum reach of 2.3 metres (at 200kg capacity).
· Capacity: 700kg (minimum extension)/ 200kg (maximum extension)
· Dimensions: 1670mm (h) x 763mm (w)
· Maximum hook height: 3300mm
· Maximum reach: 2322mm
· Boom type: hydraulic with manual third section
· Weight of crane: 650kg
· 24V/70AH battery
· Integral battery charger
· Maximum speed with load: 2.5km/h
· Ref: TTPDCB700
