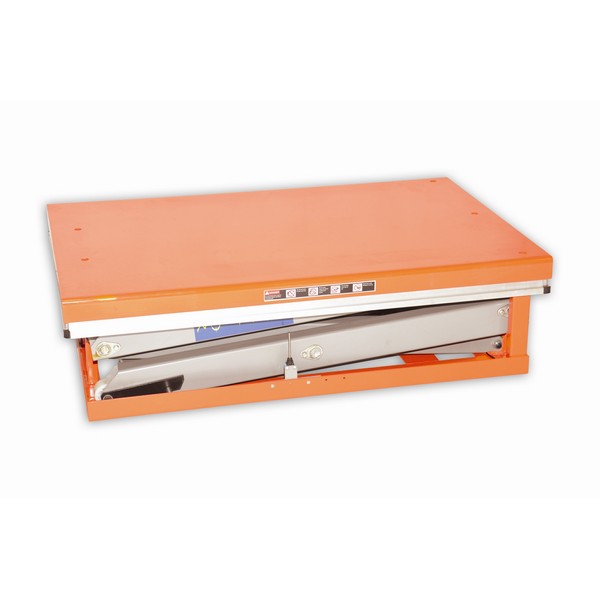

Warrior Static Lift Table
The Warrior Static Lift Table has been designed, developed and built to give long service with minimum maintenance required and assist with all manner of manual handling within industry and commerce. A sound long term investment!
Description
- Load capacity: 1000 kg – 3000 kg
- Max table height: 1010/1020 mm
Min Table height: 190/220mm - Platform size: 1300 x 800mm
- Heavy duty steel construction
- Powerful lifting motor
- High quality Orange RAL2002 powder coating
- 380V/16A 3 Phase
- Safety arrestor bars on all sides
- Hydraulic arrestor in case of fluid transfer failure
- European design and components
- Can be fixed or sunk into the ground
- CE certified
- EN 1570:1980
- 12 month on site warranty
| Capacity | Max Height | Min Height | Platform Size (L x W) | Lifting Time | Lowering Time | Motor | Weight | Model Number |
|---|---|---|---|---|---|---|---|---|
| 1000 kg | 1010 mm | 190 mm | 1300 x 800 mm | 25 secs | 20 secs | 750 w | 220 kg | WRSLT10 |
| 2000 kg | 1010 mm | 190 mm | 1300 x 800 mm | 40 secs | 30 secs | 750 w | 280 kg | WRSLT20 |
| 3000 kg | 1020 mm | 220 mm | 1300 x 800 mm | 26 secs | 22 secs | 1500 w | 320 kg | WRSLT30 |
| 2000 kg | 1780 mm | 360 mm | 1300 x 850 mm | 40 secs | 35 secs | 2200 w | 295 kg | WRSHD20 |
