Warrior 1000kg Low Profile Electric Lift Table c/w Rotating Platform

The Warrior 1000kg Low Profile Static Lift Table with Rotating Platform has been designed, developed and built to give long service with minimum maintenance required and assist with all manner of manual handling within industry and commerce. A sound long term investment!

Buy Now


Call us 01384 895 859

Available on backorder

Call us 01384 895 859
SKU: WR(NUL)HY1001 Category:

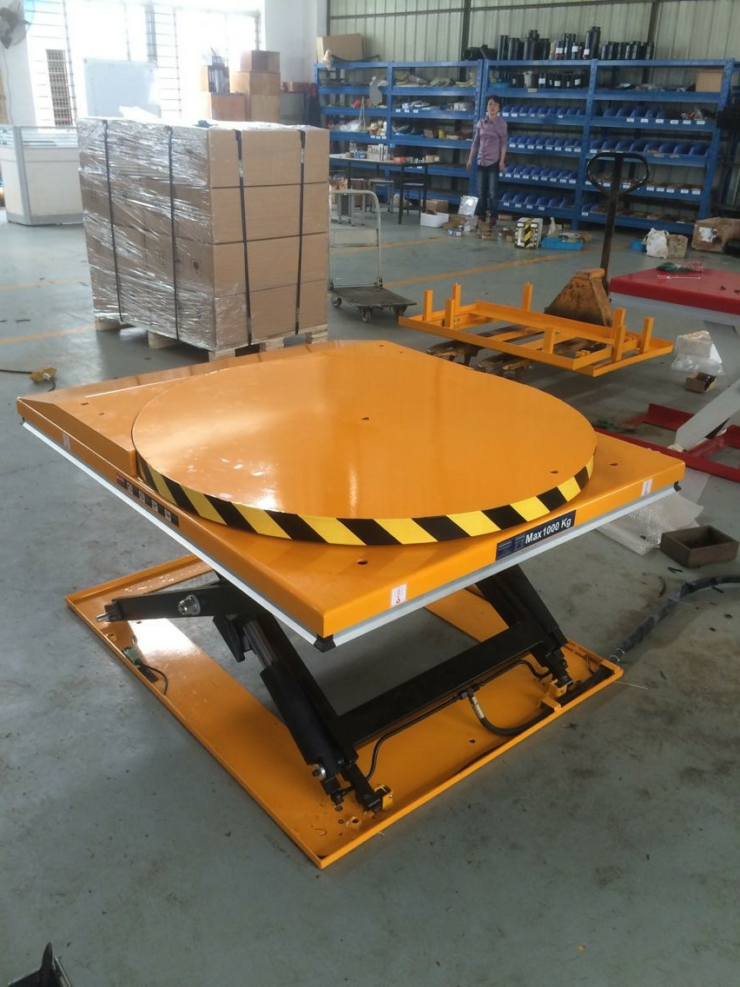

The HY1001 1000kg Low Profile Static Lift Table with Manual Rotating Platform achieves a low, closed height thus eliminating the need for a pit installation with the upper platform fitted with safety perimeter to prevent descent upon contact with obstructions.

Capacity:- 1000kg

  • Lowered Height: 85mm
  • Raised Height:- 860mm
  • Platform Size:- (l x w) 1450mm x 1140mm/1550mm long with rotating platform)
  • Lift Height:- 155/930mm (including rotating platform)
  • Round Table Size Diameter:- 1200mm
  • Loading Ramp (Standard Equipment)
  • Manual Rotating Platform
  • Maximum Height of Round Platform:- 900mm
  • Stroke:- 730mm
  • Lifting Time:- 25 seconds
  • Power Pack:- 380V/50HZ, AC 0.75kw
  • Net Weight:- 400kg
  • Hose burst safety valve
  • Electric Lift (Up/Down)
  • Manual Rotating
  • Removable lifting eyes to prevent lowering of table
  • Oiless bushings on pivot points
  • Customised specifications are acceptable
  • Manufactured to  EN1570:1999
