Warrior 550kg Electric Hydraulic Lifting Counterbalanced Workshop Crane
The Warrior 550kg Semi Electric Hydraulic Counterbalanced Crane range has been designed, developed and built to give long service with minimum maintenance required and assist with all manner of lifting and handling within industry and commerce. They are extremely versatile and innovative hence allow the accommodation of moulds, spare parts and any other product on the machine tools which have perimeter protections or small openings difficult to reach. A Sound Long Term Investment!
Description

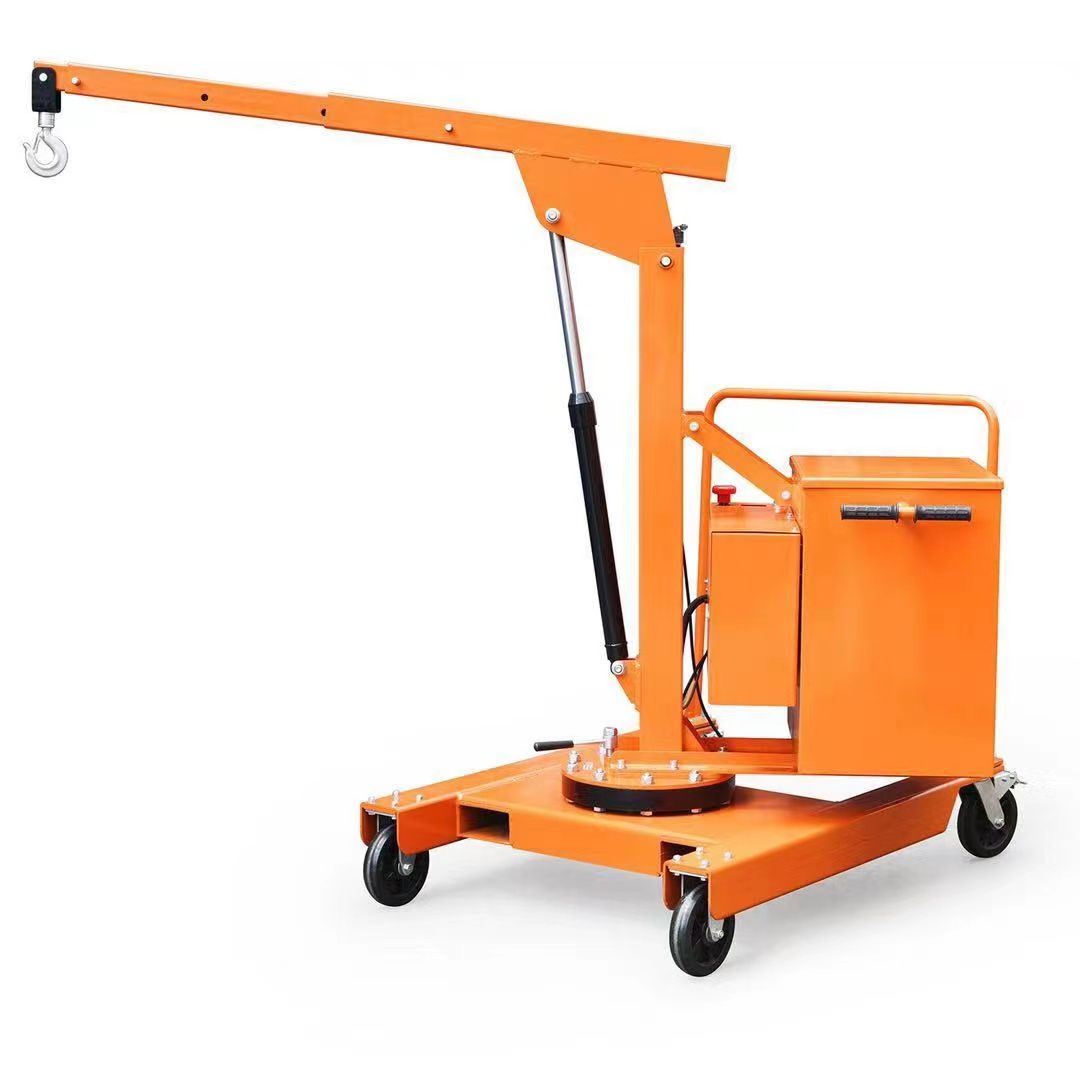

The Warrior 550kg Semi Electric Hydraulic Counterbalanced Crane with 360 degree slewing jib is mobile free standing workshop crane which has the ability to safely slew its jib through 360 degrees. The built in ballast weight which counterbalances the crane jib is mounted on a precision engineered slewing ring which allows maximum accessibility. Its has a five function hydraulic distributor which allows for adjustable and smooth jib lifting, lowering, extension and retraction. Lowering speed can be reduced through a knob.
The lifting system is semi electric with a key switch voltmeter with an emergency stop button and lockable rotation.
Counterbalanced floor cranes with a high capacity slewing jib are the perfect solution for those industries that choose not to invest in fixed structures in order to have the possibility to modify their layout without constraints. These are primarily useful in tooling environments
- Semi Electric Hydraulic Counterbalanced Crane with five function hydraulic distributor
- Jib extension available to increase the crane maximum reach to to 2600mm @ 150kg capacity
- Up to 550kg capacity
- 360 degree pivoting arm
- Key switch, voltameter & emergency stop button
- Lockable rotation
- Extremely easy to manoeuvre due to minimal foot print area
- Fully folded
- 5 variable capacity settings
- Battery:- 12V/80Ah
- Charger:- 12V/8Ah
- Fully Charge Time:- 10 hours
- 5 position jib
- CE Marked
- NOTE THIS CRANE IS SUPPLIED COMPLETE WITH COUNTERBALANCE UNLIKE OTHERS ON THE MARKET WHERE YOU NEED TO ADD YOUR OWN!!
Basic Dimensions
Overall Dimensions:- 1430 x 995 x 1630mm
Balance Weight:- 250kg
Net Weight:- 662kg
Motor:- 0.8kW
Wheel Diameter:- 200mm
Capacity/Position:- 150kg @ 2600mm – Turning Radius 2140mm
250kg @ 2450mm – Turning Radius 1850mm
350kg @ 2260mm – Turning Radius 1560mm
450kg @ 2160mm – Turning Radius 1267mm
550kg @ 1900mm – Turning Radius 977mm
