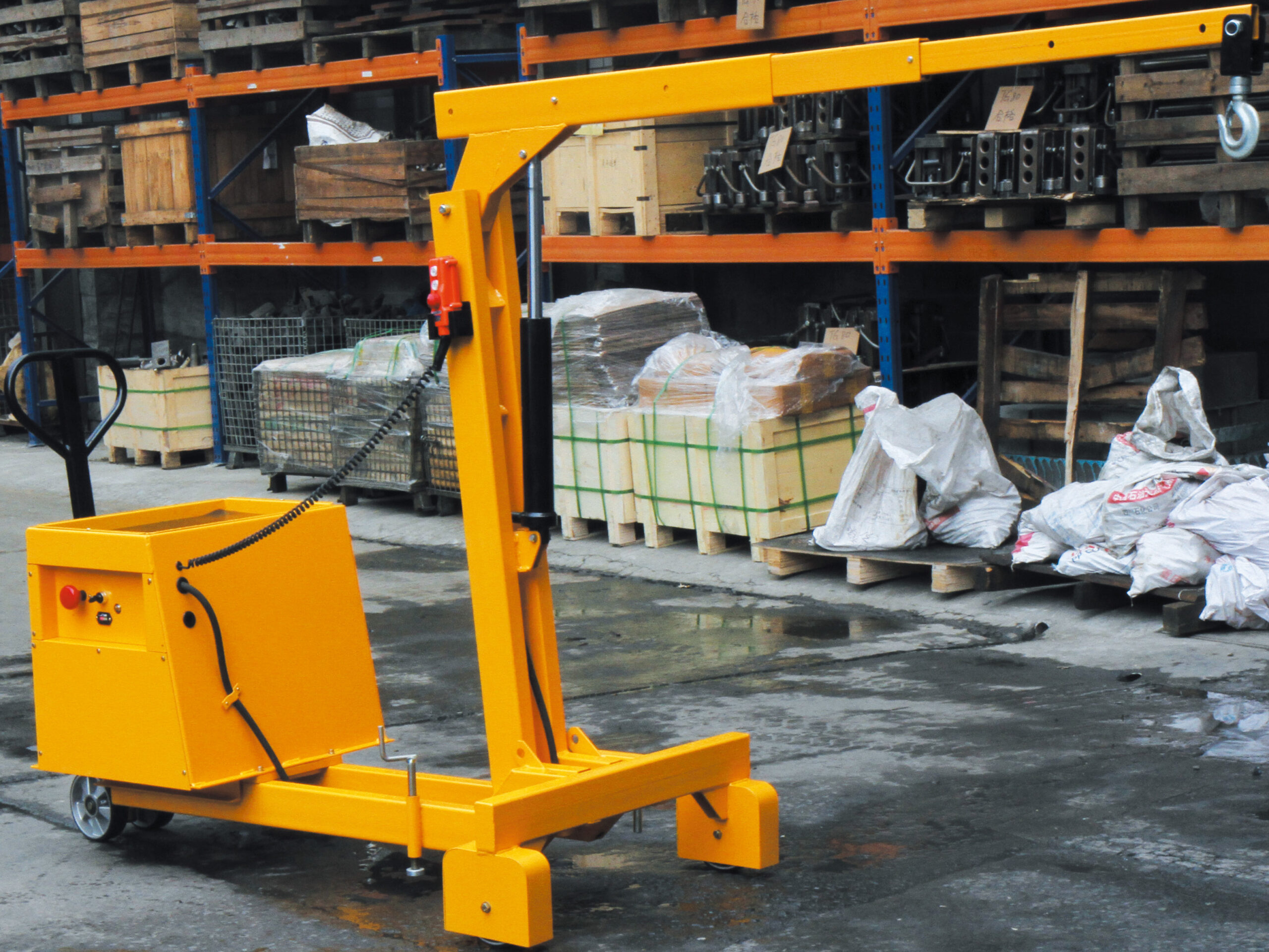

Warrior Counterbalanced Mobile Semi-Electric Workshop Crane – 550kg

Description

The Warrior Heavy-Duty Counterbalanced Semi-Electric Crane is a freestanding unit designed for efficient lifting in restricted spaces. It features a 5-position telescopic jib with 5 variable capacity settings, offering a maximum load capacity of 550kg. A heavy-duty swivel hook with a safety catch ensures secure handling during operation.

Additionally, this crane provides full jib access thanks to a counterbalanced design. This makes it especially useful when working around floor-level obstructions or loading machinery. Other key features include electric lifting with manual movement, a pressure relief valve to prevent overloading  and easy manoeuvrability. This semi-electric crane offers a maximum lift height of 2600mm and a floor-level minimum hook height for versatility.

Furthermore, this model is CE marked and comes fully equipped with its own counterbalances. Unlike other models on the market, no additional weights are required.

Key Specifications

• Maximum capacity of 550kg
• Maximum lift height of 2600mm
• Electric lift and manual movement
• 5-position telescopic jib
• 5 variable capacity settings
• Heavy-duty swivel hook with safety catch
• Pressure relief valve

Basic Dimensions – Semi-Electric Crane

• Chassis Length – 1650mm
• Chassis Width – 910mm
• Overall Height – 1510mm (jib level)

Capacity at Jib position (mm)

• 550Kg @ 925mm
• 400Kg @ 1210mm
• 300Kg @ 1500mm
• 220Kg @ 1800mm
• 150Kg @ 2080mm

Maximum capacity at full clear reach is 150Kg.

Battery – 60Ah
Power/Voltage – 0.8Kw/12V

Please call for capacities at other jib settings.

Additionally, this semi-electric crane is covered by our warranty. Please click here for more details.
