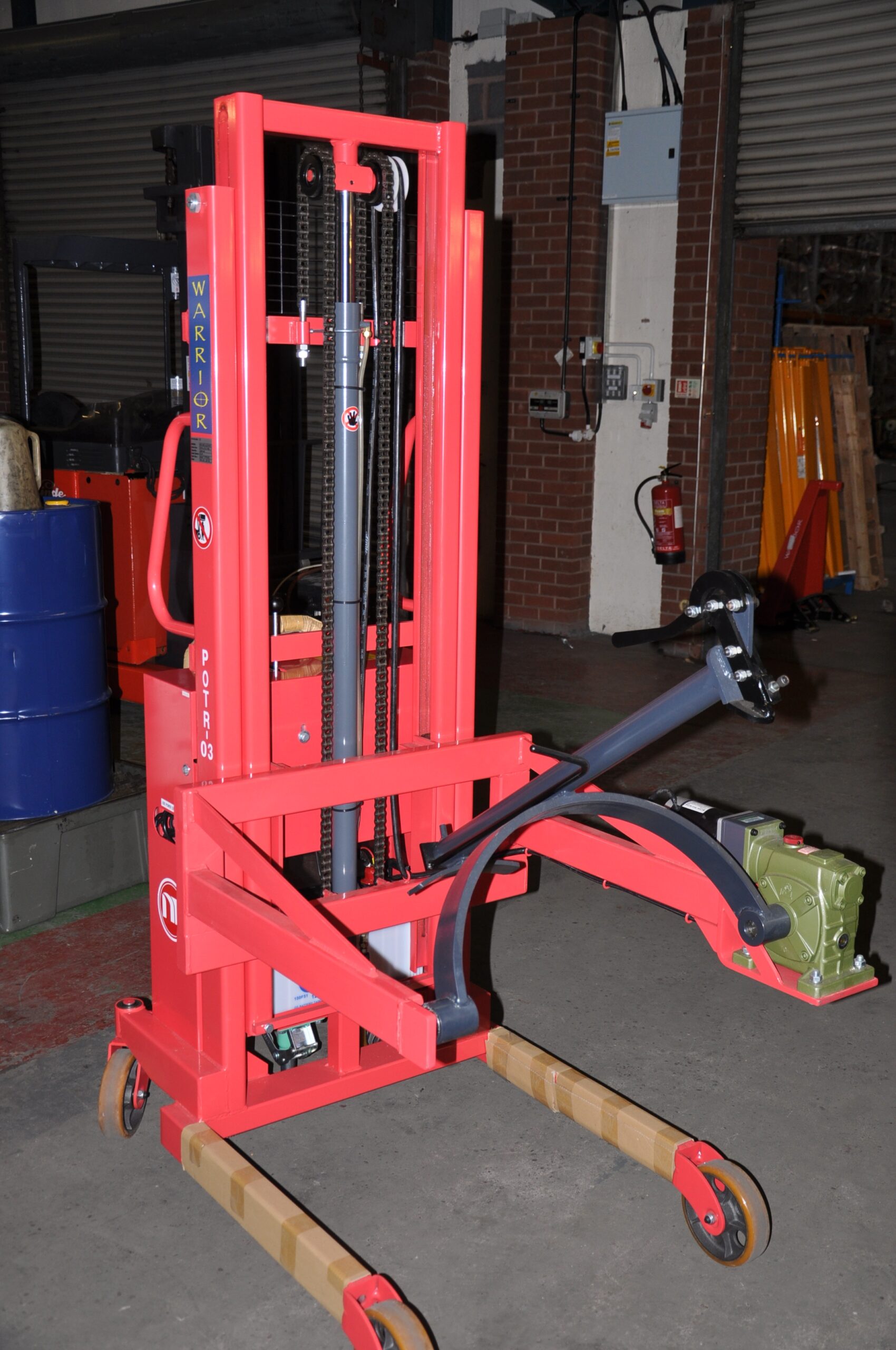

Warrior Semi Electric Tipping Drum Lifter
The Warrior Semi Electric Tipping Barrel Lifter can lift, rotate and pour powered by an electro hydraulic and electro mechanical system. Travel is by manual effort.
Description
- Lifting Capacity – 300Kg
- Max Lift Height to Top of Vertical Oil Drum – 3450mm
- Max Clearance under drum when tilted forward down for pouring at 45 degrees – 2370mm
- Overall Truck Length – 1350mm
- Overall Truck Width – 915mm
- Inside Straddle Width – 770mm
- Lowered Mast Height – 1980mm
- Turning radius – 1300mm
- Lift by means of and electro hydraulic power pack
- Tilting by means on and electro mechanical gearbox.
- Lift by lever
- Tilt by chorded remote control.
- Battery 12v/135ah
- Built in timed battery charger
- Clamp easy and light to use
- Truck weight – 320Kg
