Warrior Drum Clamps
The Warrior range of drum handling equipment has been designed, developed and built to give outstanding long service with minimum maintenance required and assist with all manner of drum handling within industry and commerce. A sound long term investment!

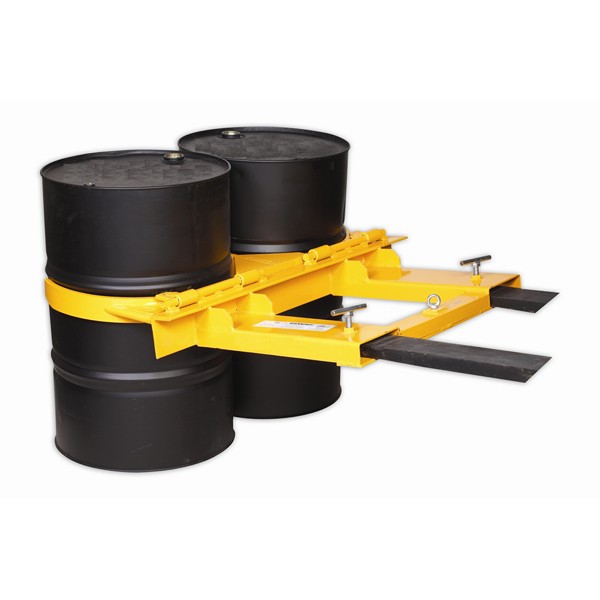

Our Warrior Fork Mounted Auto Drum Clamps for single and double steel and plastic “L” ring drums are mechanically operated and very easy to use.
These are very versatile drum grabs, in particular because they allow the operator to attach the 205 ltr steel drum or “L” ring plastic drums, lift and stack. Operation is easy to effect, having attached the Warrior Fork Mounted Automatic Drum Clamp to the forks of a forklift truck, the operator drives forwards to the drum and lifts. The forwards and lifting motion helps to engage the “arms” and safely clamps the drum for lifting. Release the drum by simply lowering the clamps – release occurs when the drum cannot lower any further.
Description
- Capacity/drum: 680 kg
- Easy to lift & transport 205 ltr steel drum or “L” ring plastic drums (see model variations table)
- CE Marked
| Drum Type | Fork Pocket Dimensions | Net Weight | Model Number |
|---|---|---|---|
| Single Steel 45 Gallon | 140 mm x 50 mm | 55 kg | WRDG10 |
| Double Steel 45 Gallon | 180 mm x 65 mm | 90 kg | WRDG20 |
| Single Steel & “L” Ring Plastic 45/47 Gallon | 180 mm x 65 mm | 57 kg | WRDG40 |
| Singe “L” Ring Plastic 45/47 Gallon | 145 mm x 40 mm | 19 kg | WRDG50 |
