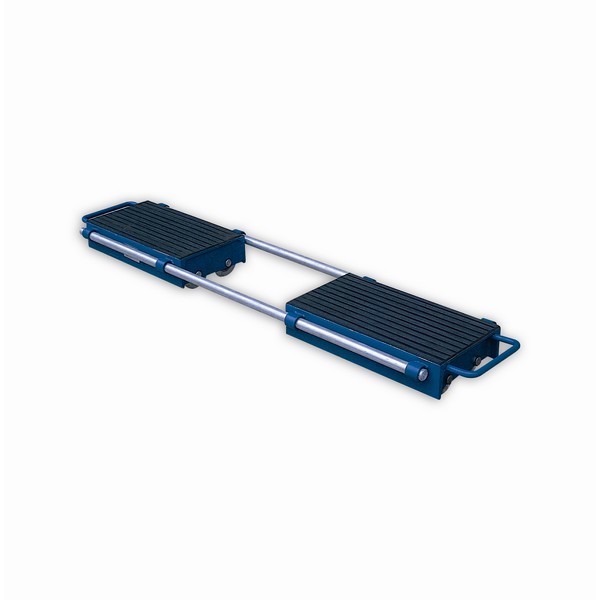

Warrior Heavy Duty Adjustable Machinery Skates
The Warrior Heavy Duty Skate range has been designed, developed and built to give long service with minimum maintenance required and assist with all manner of heavy handling within industry and commerce. A sound long term investment!
Our heavy duty skates are ideal where weighty equipment needs to be moved. The skates are available in a selection of different types allowing the user to “mix & match” according to requirements. For instance, two 12 tonnes steerable skates and two sets of 24 tonnes adjustable skates will allow a total load of 72 tonnes to be handled! Of course there are standard “Skate Kits” available too, which are supplied in their own mobile box.
Use of the skates is easy. Simply jack up the load, safely position the skates and away you go!
Description
- Nylon or steel rollers with sealed bearings
- Rubber anti slip top
- Adjustable skates TTSKA (sold as a pair with tie bars)
- Compact and adjustable
- TTSKA60 adjustable from 500 mm to 1400 mm
- TTSKA120 & TTSKA240 adjustable from 720 mm to 1500 mm
- Rugged
- Further details on request
| Capacity | No. of Rollers | Skate Dimensions (L x W x H) | Weight | Model Number |
|---|---|---|---|---|
| 6000 kg | 8 | 300 mm x 250 mm x 115 mm | 30 kg | TTSKA60 |
| 12000 kg | 12 | 360 mm x 220 mm x 115 mm | 38 kg | TTSKA120 |
| 24000 kg | 16 | 360 mm x 220 mm x 115 mm | 65 kg | TTSKA240 |
