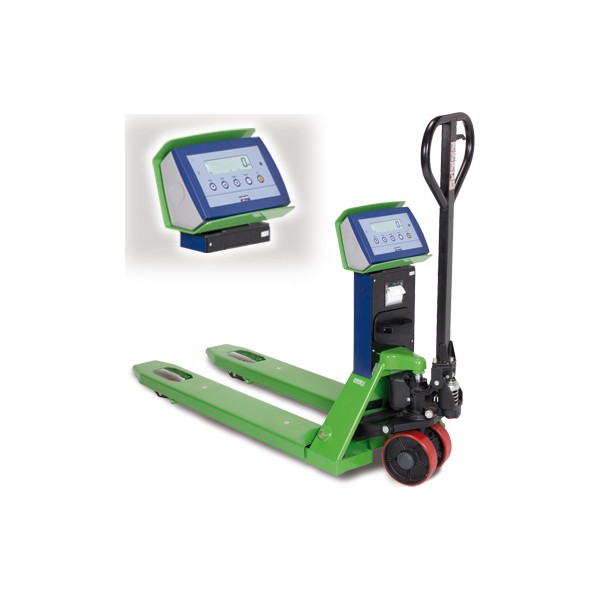

Dini Argeo TPWA Weigh Scale Pallet Truck
TPWA “ACTIVITY” SERIES PALLET TRUCK SCALE
Pallet truck scales, with built-in electronic weighing integrated. The swiveling indicator guarantees the maximum reading ease. Reliable and suitable for one who needs to weigh accurately any type of product on a pallet.
Available also CE-M APPROVED.
Description
Main Features
Maximum lifting capacity: 2000 kg.
Accuracy: +/- 0.1% of the maximum capacity.
Fork dimensions 1150 x 550 x 85 mm.
Weighs about 125 kg.
Bearing structure in extra thick sheet steel and oven-fire painted interior construction.
Standard fitted swivelling column head.
Steering wheels and double loading rollers with a polyurethane coating.
4 shear-beam load cells.
Indicator with easy to clean ABSwaterproofIP65enclosure built to withstand humid and dusty environments; large LCD display 25-mm high contrast digits which are clearly visible even in poor lighting conditions; 5-key numerical/functional waterproof keyboard.
Calibration and Set-Up configurable from keyboard or from PC with DINITOOLS.
Power supply through built-in rechargeable battery.
50-hour approximate operating time or three months with the typical non continuous use, thanks to its auto switch-off function.
Programmable auto power saving function.
Low Battery Warning.
Equipped with 230Vac 50 Hz battery charger (recharging time is about 8 hours).
Bi-directional RS232/C port configurable for connection to printer.
Bi-directional RS232/C serial output for radio modem, PC or portable terminal.
IR input for managing remote control.
Selectable Functions
High Resolution Weighing x 10
Net/Gross or lb/kg conversion
Accumulation
Formula weighing
+/- Check weighing
Percentage weighing
Counting (Max. resolution of 1.500.000 divisions),
In/Out Truck weighing
Hold and Peak
Peer-to-peer (up to 4 remote connectable indicators)
Set Point Control (with optional interface)
