Dini Argeo TPWX2GD Hazardous Zone 1 ATEX Weigh Scale Pallet Truck
Pallet truck scales, with built-in electronic weighing, for dangerous areas classified as hazardous (ZONES 1 and 21 & 2 and 22) in accordance with Ex II 2GD IIB T4 T197°C X.
The Atex certified four load cell weight detection IP68 guarantees the best accuracy in all work conditions.
Available also CE-M APPROVED.
Description
Main Features

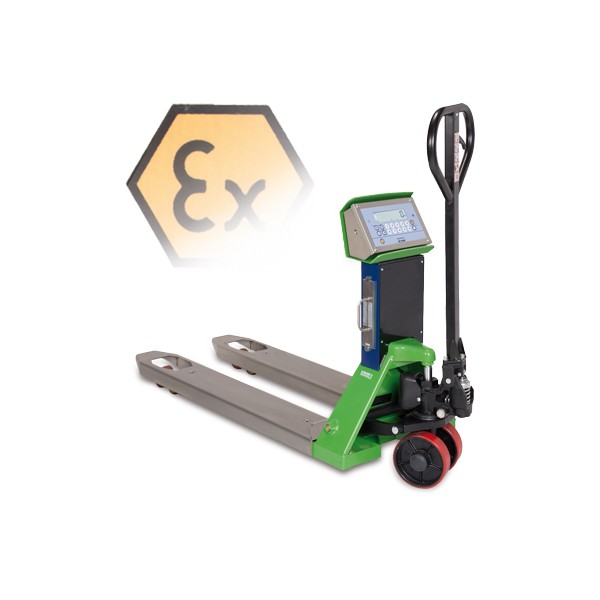

(The standard truck detailed below is fitted with painted mild steel forks, the fully stainless steel forks shown in the picture are an optional extra and the extra price is in the price section SEE suffix code SSFX!)
Two Capacities available : 2500kg TPWXGD25 or 2000kg TPWXGD20
Accuracy: +/- 0.05% of the maximum capacity.
Fork dimensions 1150 x 550 x 85 mm.
Weighs about 125 kg.
Bearing structure in extra thick sheet steel and oven-fire painted interior construction.
Standard fitted swivelling column head.
Steering wheels and double loading rollers with a poliurethane coating.
Atex certified, 4 stainless steel IP68 shear-beam load cells.
Indicator with easy to clean satined stainless steel case with IP68 enclosure built to withstand humid and dusty environments; large LCD display 25-mm high contrast digits which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard.
Calibration and Set-Up parameters configurable from keyboard.
Power supply through extractable battery, rechargeable in safe zone.
150-hour approximate operating time.
Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.
Selectable Functions
High Resolution Weighing x 10
Net/Gross or lb/kg conversion
Weighs accumulation
Formulation
Counting
In/Out weighing
Hold.
Options only available at order placement.
Rechargeable battery kit.
Parking brake system with command pedal mounted on steering wheels.
680 mm fork width (ask for price estimate).
Special fork length from 850 to 1500 mm (ask for price estimate).
3000 kg capacity (ask for price estimate).
Special models, sizes or high resolution (ask for estimate).
Special wheels available with price estimate.
Key Board Functions
Zeroing, Automatic Tare, Presettable Tare, ID1 and ID2 10-digit Codes, Print and data transmission commands, selectable function command,
on/off switching
Additional information
| Models | TPWX2GD20, TPWX2GD20 CE-M APPROVED, TPWX2GD20 SSFX, TPWX2GD20 SSFX CE-M APPROVED, TPWX2GD25, TPWX2GD25 CE-M APPROVED, TPWX2GD25 SSFX, TPWX2GD25 SSFX CE-M APPROVED |
|---|
