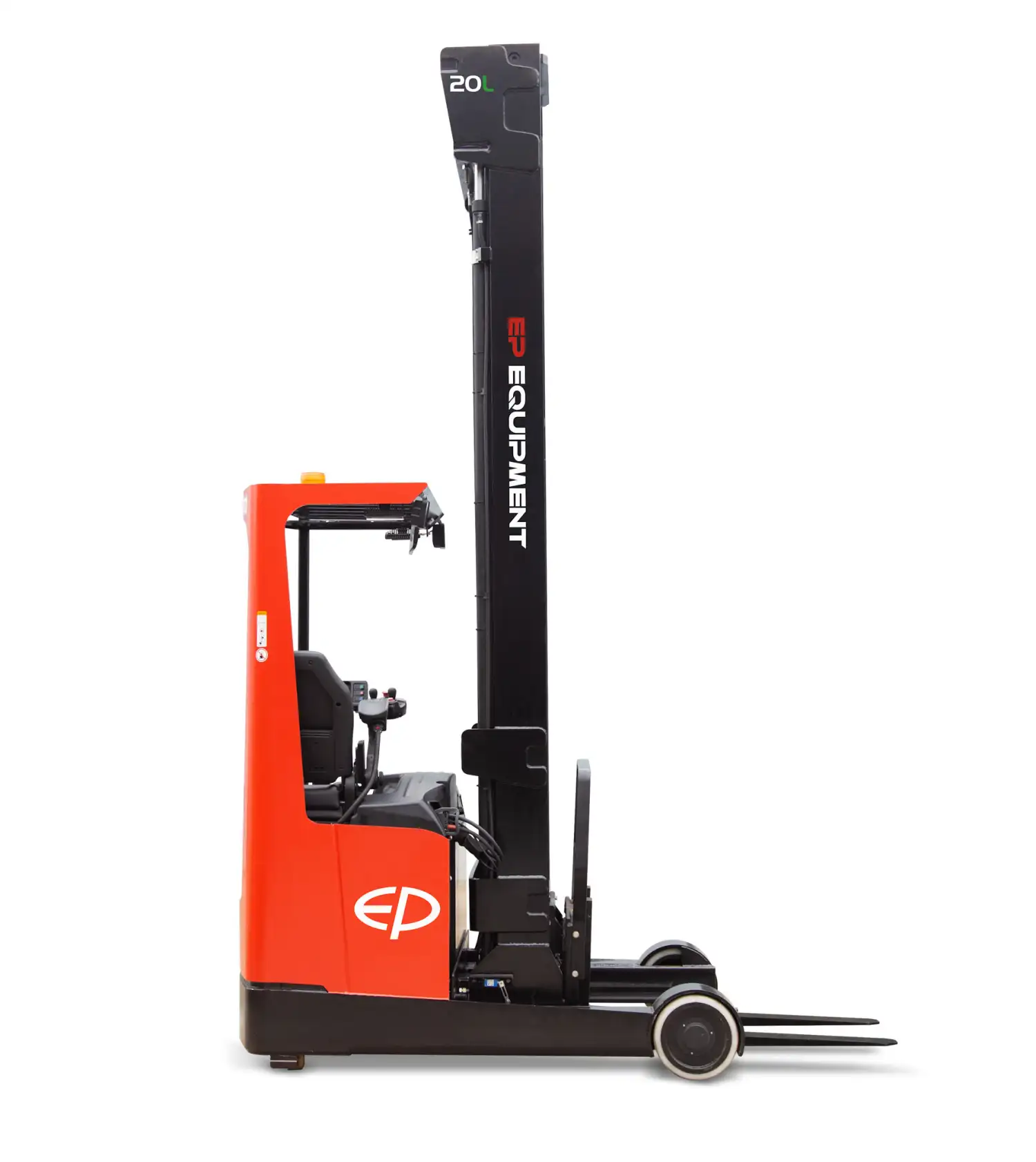

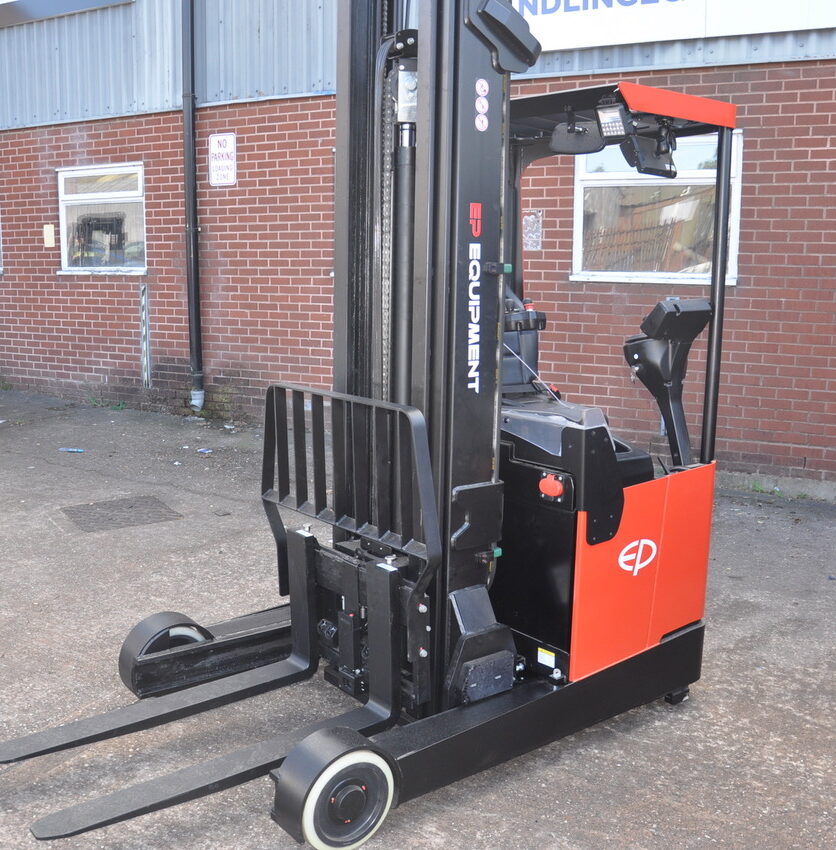

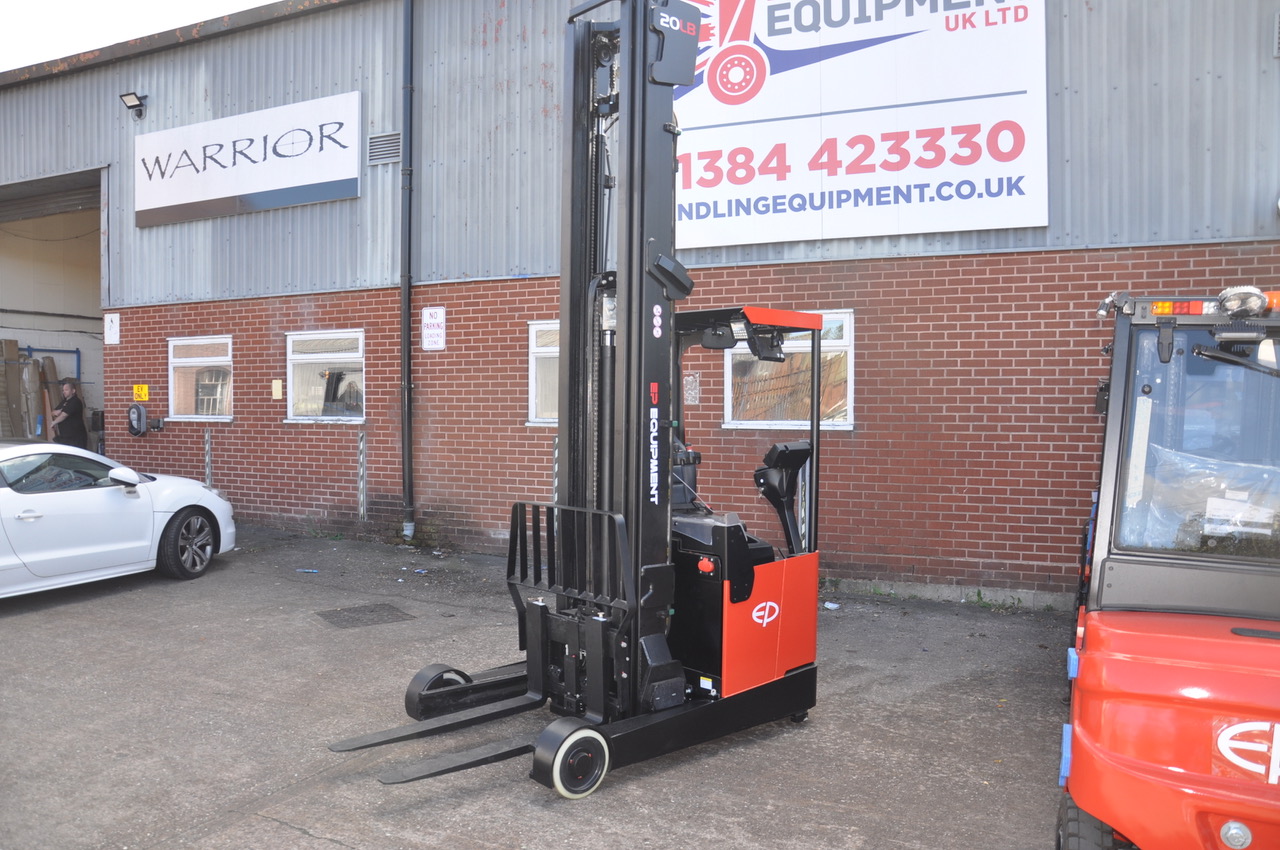

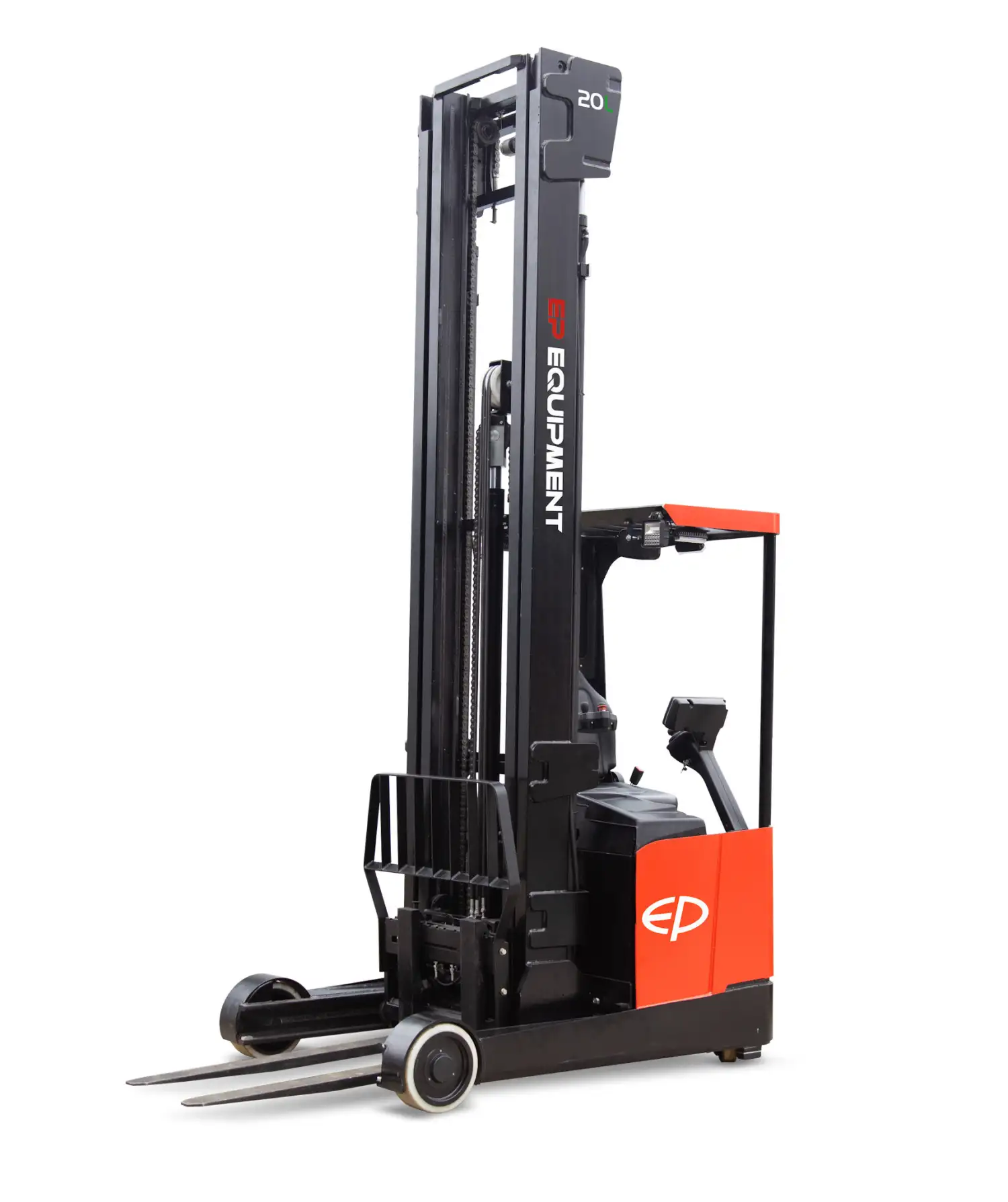

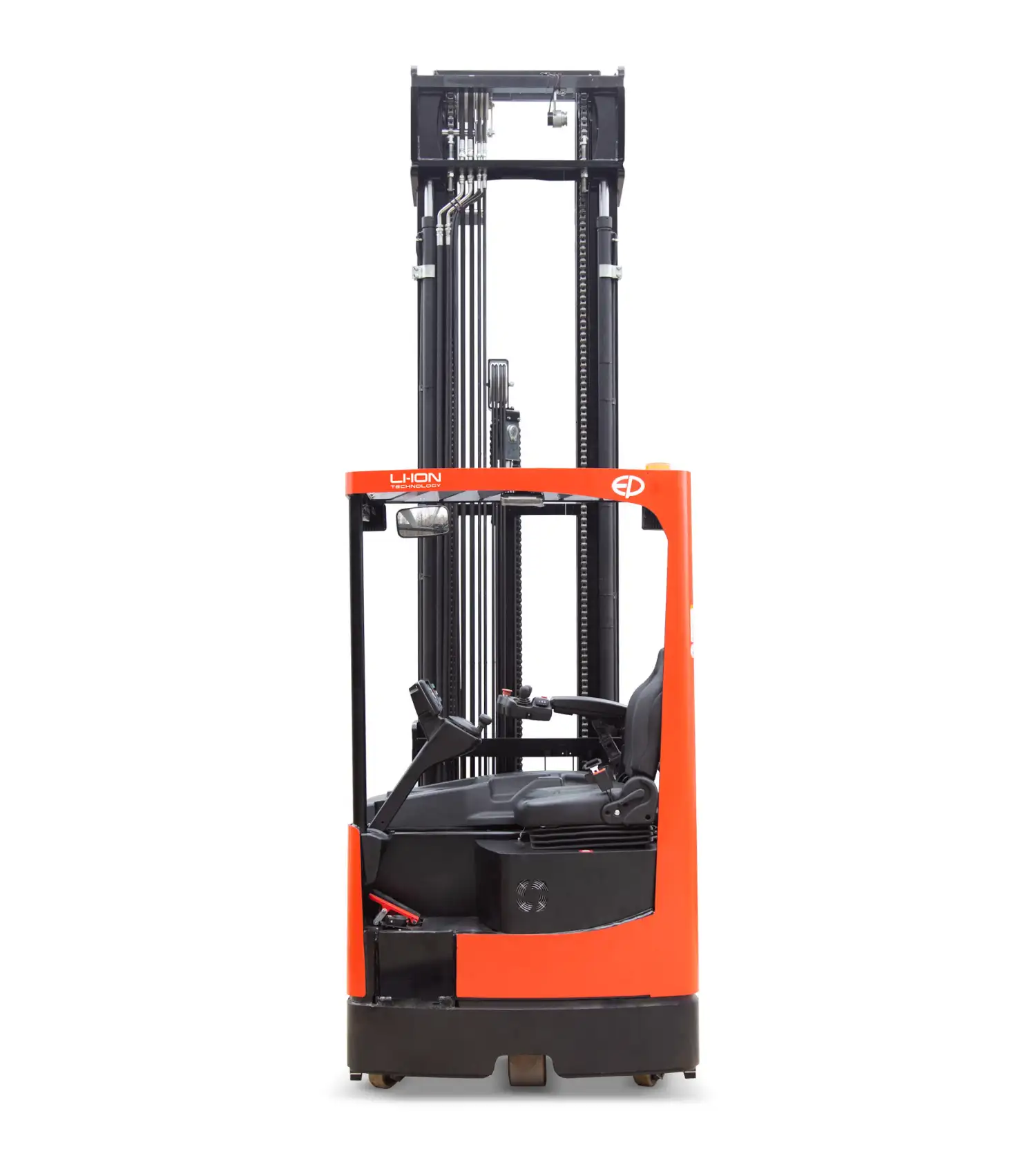

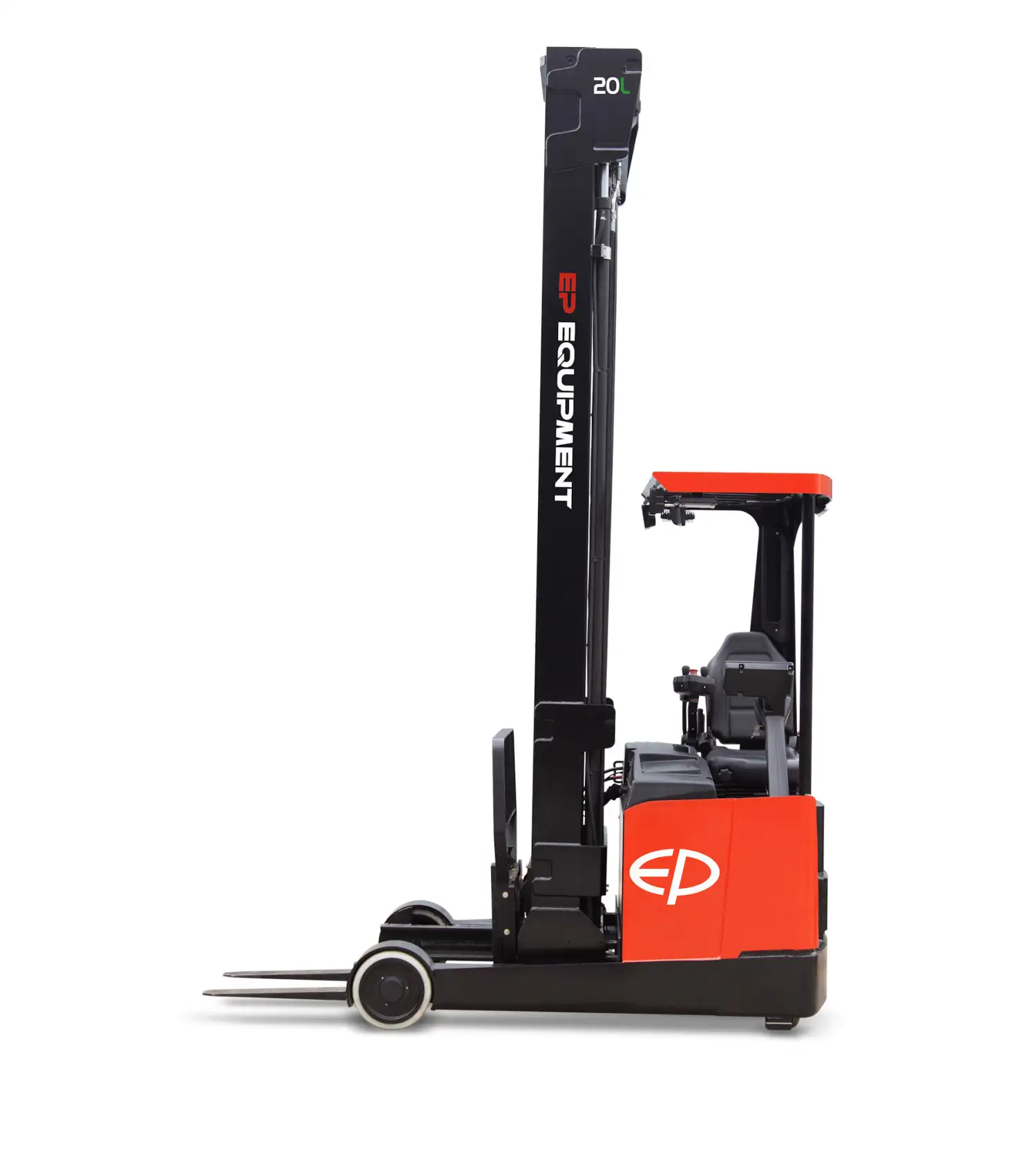

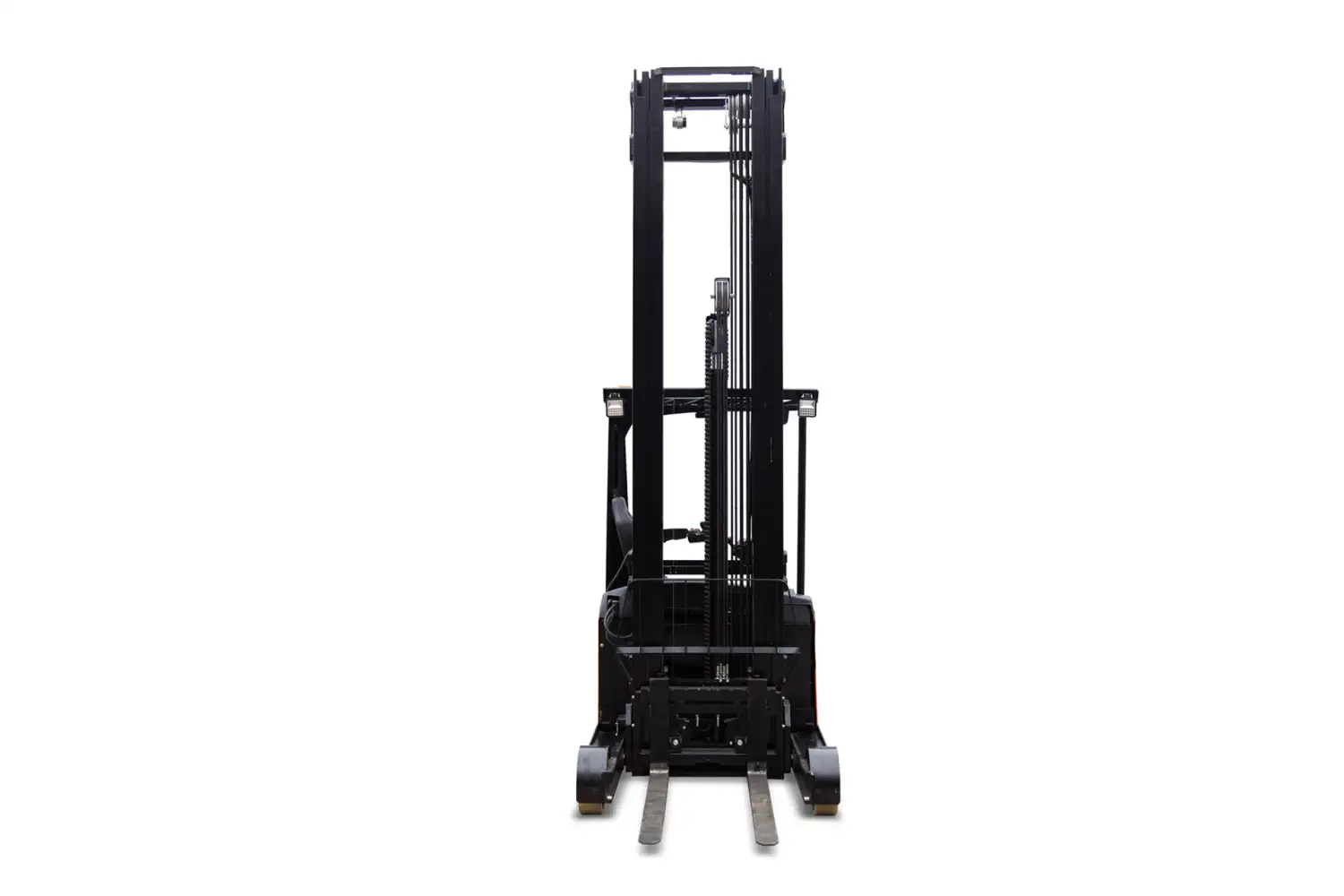

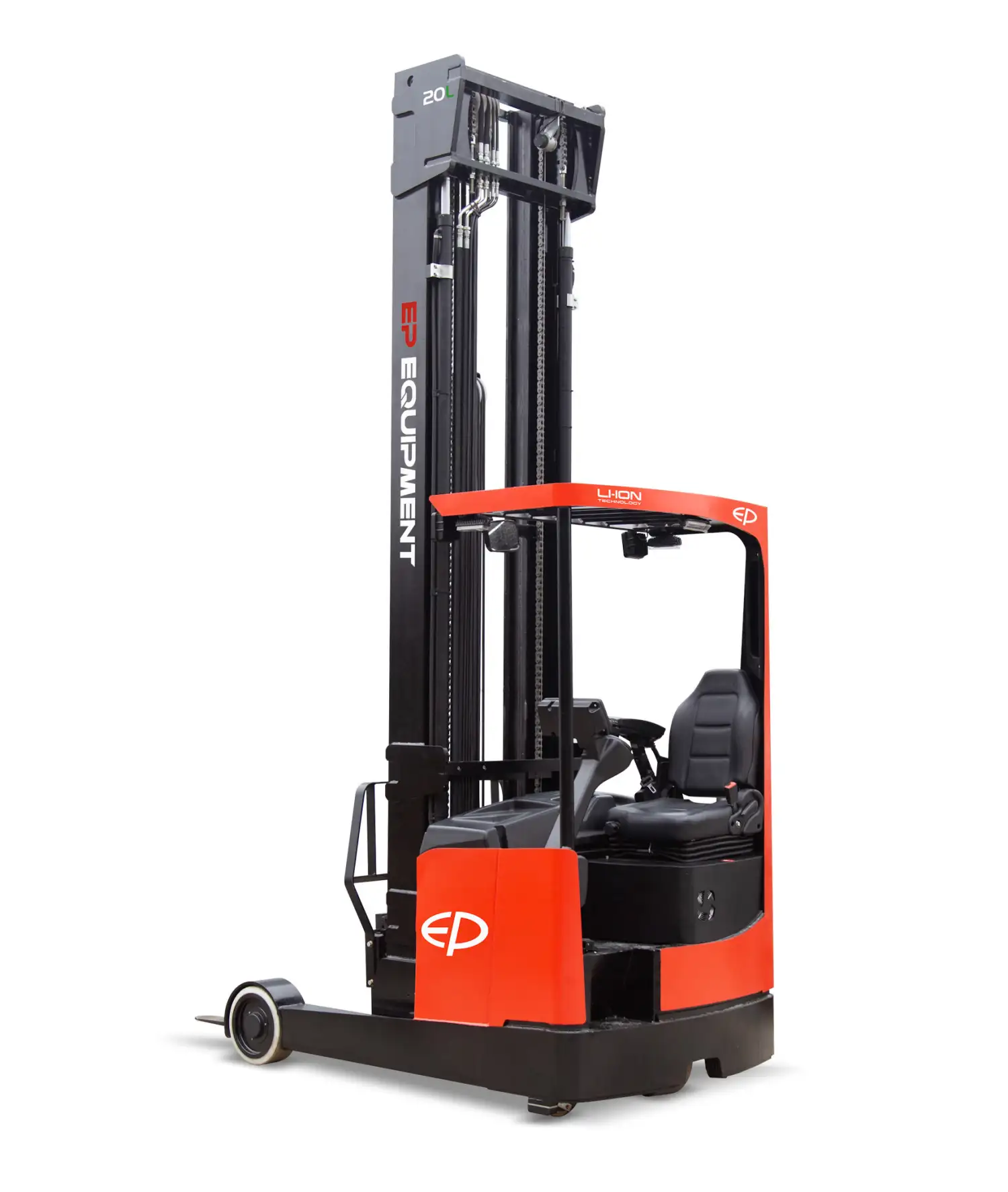

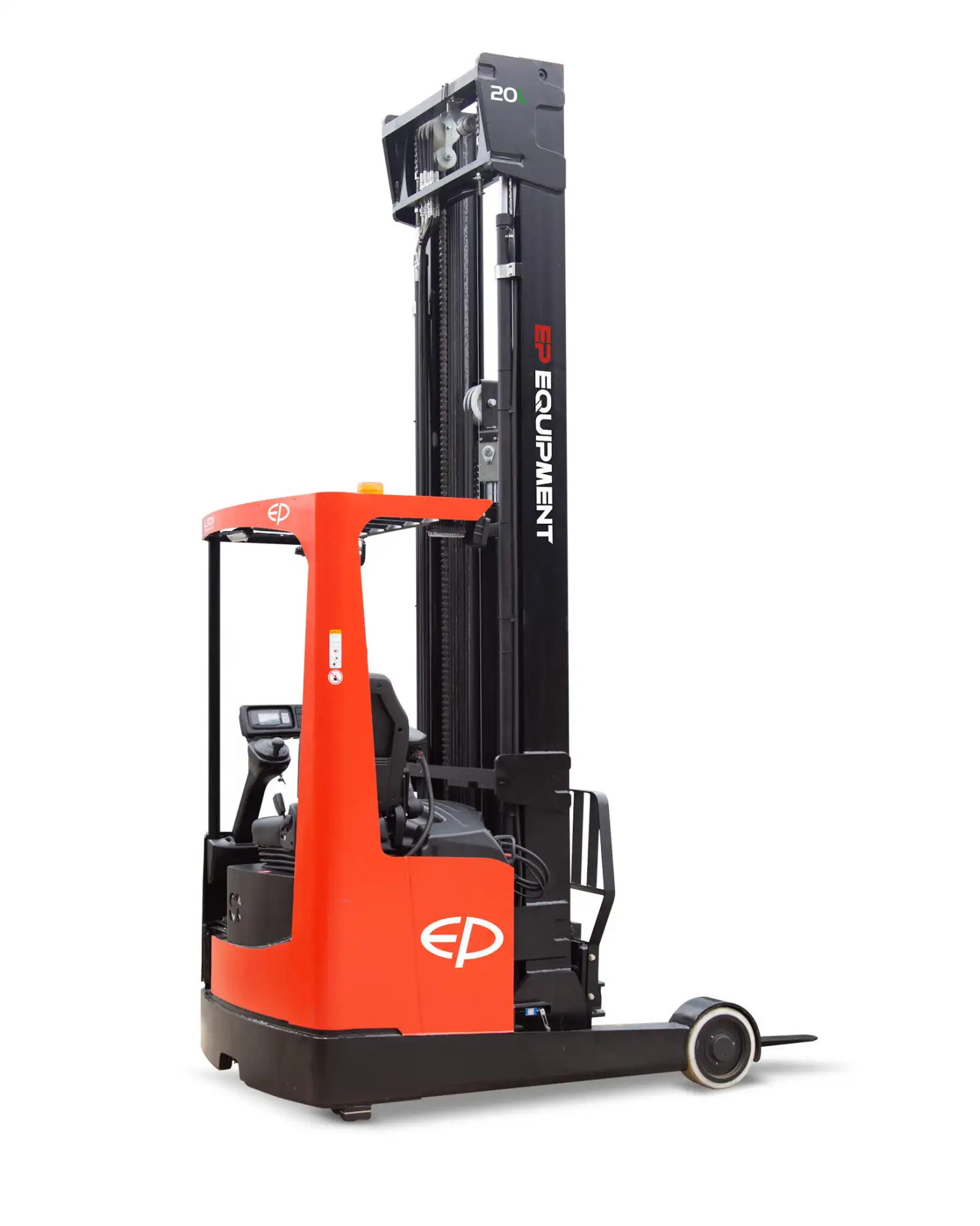

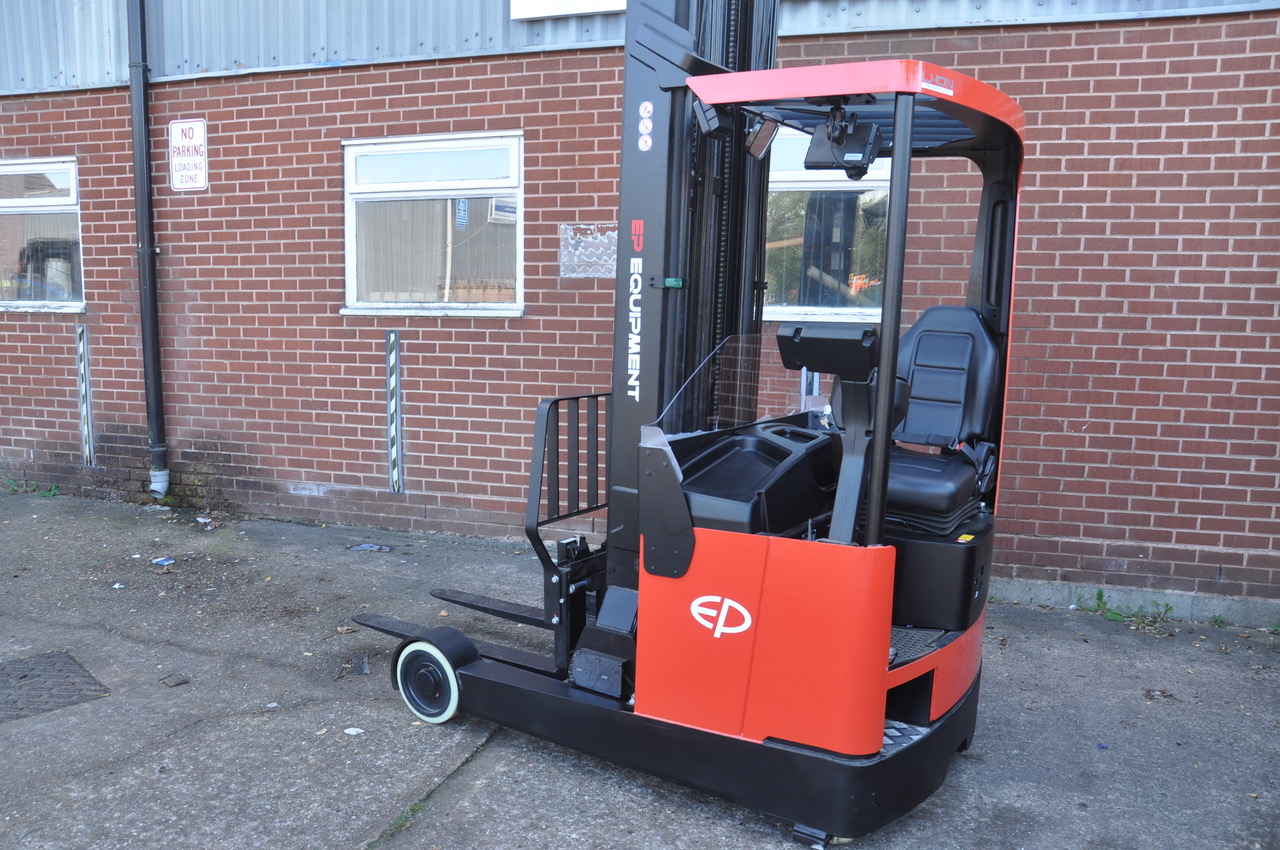

EP Equipment Li-ion Reach Truck – CQD20LB 2000Kg 9m lift Sideshift Wireless Camera Large Display Laser Level & Height Indicator

The EP Equipment lithium reach truck  CQD20LB is the latest version of the original lithium powered reach truck. The CQD20LB can lift loads up to 12m maintaining 2000Kg to 6.9m elevation with optimum visibility and stability. In the spacious operator compartment, there boasts multi-functional control elements such as full-color display, joystick system and proportional lift, making it possible to stack and retrieve goods at ease. Equipped with 48V Li-ion battery, the CQD20LB becomes a flexible and cost-effective tool with the benefits of opportunity charging and zero battery maintenance. The seat section can easily be opened, providing a quick access to internal components for fast maintenance and repair. Fitted with the industry leading EP telematics system offering basic performance and management information through the online portal. This 2000kg reach truck combines the latest in Li-ion innovation with practicality and operational efficiency. The CQD20LB operates smoothly at height, making it well suited for high-bay racking and demanding warehouse environments. Additionally, operators benefit from a modern control setup that enhances both precision and comfort. The CQD20LB comes equipped with a user-friendly joystick system, a clear full-colour display and smooth proportional lift functionality. These features combine to give operators full control during operation, even in tight or high-reach areas. Powering the CQD20LB is a 48V lithium-ion battery system designed for performance and convenience. It supports rapid charging and requires no routine maintenance, so helps businesses reduce downtime and keep operations running without interruption. This makes the truck a reliable asset in sectors that demand efficiency, such as logistics, food production and large-scale manufacturing. Moreover, with its strong lifting capabilities, intuitive controls and low-maintenance power system, this 2000kg reach truck is a smart investment for companies looking to improve productivity and reduce operating costs across a range of material handling tasks. In addition, this electric reach truck is covered by our industry-leading warranty. Click here to find out more.

• 48V/405Ah(CE)/208Ah(NON-CE) Li-ion battery and external charging plug for great
  convenience and adaptability
• Height indicator
• Laser leveller
• Enhanced mast with better visibility and safety
• Hydraulic system with new components for better loads handling
• Higher efficiency with a 610mm reach distance and maximum lifting/lowering speeds
  of 0.55m/s and 0.5m/s.
• Multi-functional configurations like proportional lifting, electric steering and
  full-color display for easy operation
• 360deg steering

• Truck type:

  Reach

• Power:

  Li-ion

• Class:

  2

• Brand:

  EP

• Model:

  CQD20LB

• Capacity:

  2000Kg

• Lift Height:

  9000mm

• Closed Height:

  3765mm

• Free Lift:

  2700mm

• Integral sideshift

• Overhead guard height:

  2213mm

• Overall length inc forks:

  2443mm

• Overall width:

  1270mm

• Turning radius:

  1770mm

• 90° aisle c/w 200mm margin:

  2835mm

• Battery:

  LFP

• Voltage V:

  48V

• Power kW:

  19.4kW

• Charger:

  200A 3p

Warranty Subject to regular specified maintenance

Wireless camera with large colour display

Laser level allowing easy alignment of loads at height

Battery modules 7yrs 10000 hrs

Chassis/motors 5yrs 3000 hrs

Chassis/components 3yrs 2000 hrs

Laser level – see via camera where the fork level is with a laser across the pallet face

Wireless camera

On screen height indicator

Integral Side shift

Industry-leading 753 warranty. Click here to learn more.
