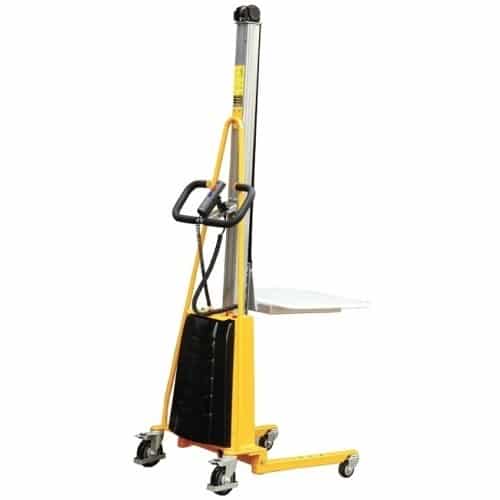

Warrior Semi Electric Work Positioner
The Warrior Work Positioner range has been designed, developed and built to give long service with minimum maintenance required and assist with all manner of manual handling within industry and commerce. A sound long term investment!
The Warrior Semi Electric Work Positioner is ideal for those lightweight lifting requirements where personnel need protection from lifting everyday items which are judged to be too heavy to lift manually. Reams of paper, Servers, batteries etc… Deemed too heavy for a person to lift!
The unit is mounted on 2 swivel castors and 2 fixed castors allowing the unit to turn easily in confined areas. Lift is by means of an electrically driven belt which allows the operator to elevate the load to a given height at the press of a button. The lift/lower control is via a portable and adjustable hand control unit.
A platform plate is supplied as standard, however, various attachments are available for pack line applications – e.g.: single boom, twin Boom, V block and a reel rotator.
Description
- Compact, lightweight and manoeuvrable
- Versatile and easy to operate
- Portable and adjustable hand control unit
- Perfect for narrow aisles and confined spaces
- Automatic brake system prevents uncontrolled lowering
- Mounted on non-marking castor wheels; 2 swivel wheels fitted with foot brakes and 2 fixed wheels on legs
- Supplied with platform and forks as “standard”
- Supplied complete with 24v/20A battery and charger
- Conforms to BS EN 1757-2:2001
- Capacity: 300 kg
- Load centre: 200 mm
- Min lift height: 130 mm
- Max lift height: 1500/1800 mm
- Platform: L – 470 mm x W – 605 mm (steel)
- O/A height: 1940 mm
- O/A length: 870 mm
- O/A width: 740 mm
- Wheel Diameter: 125/75mm
- Net Weight: 105 kg
