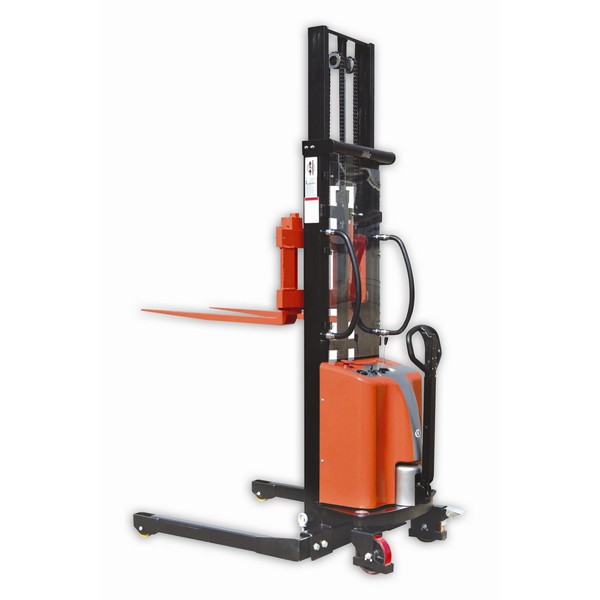

Warrior Semi Electric Straddle Stacker
The Waqrrior range of stacking equipment has been designed, developed and built to give outstanding long service with minimum maintenance required and assist with all manner of lifting, stacking, de-stacking, pallet handling etc.. within industry and commerce. A sound long term investment!
Our Warrior Semi Electric Straddle Stacker is manually propelled, electrically elevated and very easy to use.
With its powerful hydraulics system it will lift your load and enable the operator to precisely position it as required. Whether it’s into a rack or onto a vehicle the Warrior Semi Electric Straddle Stacker will make easy work of frequent lifting applications. The reason for the “straddle” is to allow lifting of “Full Perimeter Board” pallets like the Blue “Chep” Pallets found in some UK warehouses.
Simple and easy to operate, lift is by means of an electro hydraulic pump unit and lowering is effected by a “deadmans” release handle on top of the power pack .
Description
- Manual + battery powered (pedestrian)
- 1000 kg maximum load capacity
- 1270 mm inside straddle width
- 500 mm load centre
- 1000 mm fork length
- Fitted with adjustable forks
- 230 mm – 790 mm width over forks
- 65 mm minimum lowered height
- Heavy duty 1500W electro-hydraulic power pack
- Steering / pulling handle
- Adjustable width straddle
- Brake
- Steer wheel foot guards
- Full guarding
- Tandem lift chains
- Manual push / electric lift
- Hardwearing nylon wheels & load rollers
- 12V 150Ah battery
- Built in automatic charger
- Maximum lift height of 3000 mm
- Conforms to BS EN 1757-2:2001
- CE Marked
| Overall Dimensions (L x W x H) | Maximum Lift Height | Model Number |
|---|---|---|
| 1674 mm x 1502 mm x 2225 mm | 3000 mm | WRST1030 |
