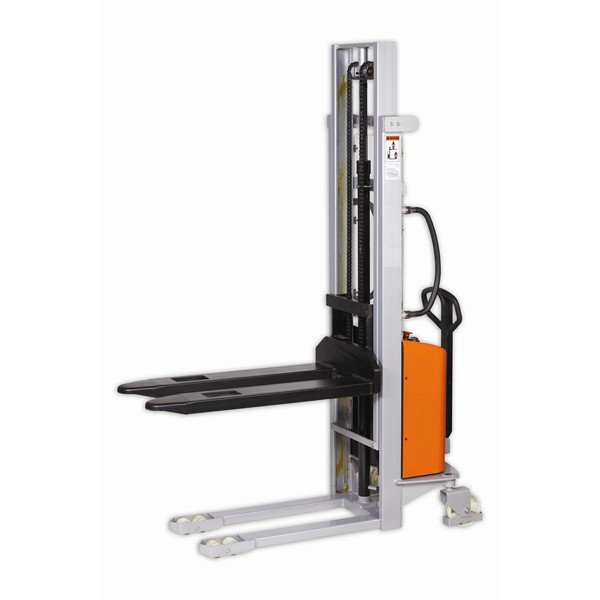

Warrior Semi Electric Stacker
The Warrior range of stacking equipment has been designed, developed and built to give outstanding long service with minimum maintenance required and assist with all manner of lifting, stacking, de-stacking, pallet handling etc.. within industry and commerce. A sound long term investment!
Our Warrior Semi Electric Stacker is manually propelled, electrically elevated and very easy to use.
With its powerful hydraulics system it will lift your load and enable the operator to precisely position it as required. Whether it’s into a rack or onto a vehicle this manually operated stacker will make easy work of frequent lifting applications.
Simple and easy to operate, lift is by means of an electro hydraulic pump unit and lowering is effected by a “deadmans” release handle on top of the power pack .
Description
- Manual + battery powered (pedestrian)
- 1000 kg maximum load capacity
- Fork dimensions (l x w): 1100 mm x 180 mm
- 570 mm width over forks
- Minimum lowered height of 85 mm
- Heavy duty 1500W electro-hydraulic power pack
- Steering / pulling handle
- Brake
- Steer wheel foot guards
- Full guarding
- Tandem lift chains
- Manual push / electric lift
- Tandem load rollers
- 12V 150Ah battery
- 600 mm load centre
- Built in automatic charger
- Maximum lift height of 3300 mm
- Conforms to BS EN 1757-2:2001
- CE Marked
| Overall Dimensions (L x W x H) | Maximum Lift Height | Model Numbers |
|---|---|---|
| 1720 mm x 762 mm x 1830 mm | 2500 mm | WR1025 |
| 1720 mm x 762 mm x 2080 mm | 3000 mm | WR1030 |
| 1720 mm x 762 mm x 2280 mm | 3300 mm | WR1033 |
