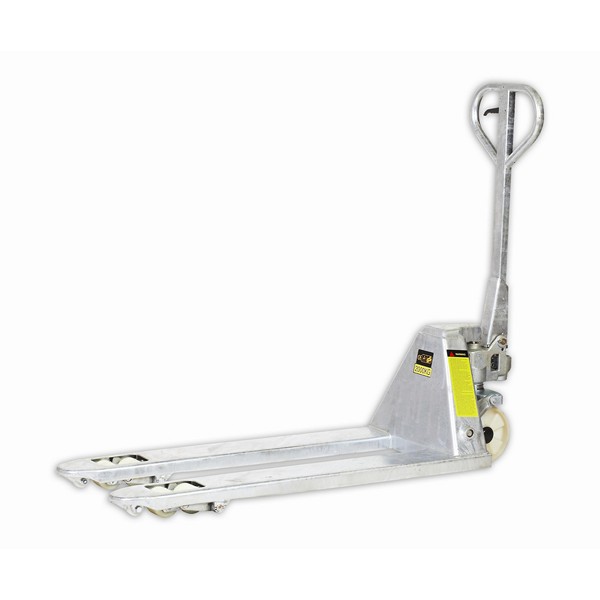

Warrior Galvanised Semi Stainless Steel Pallet Truck
Our specially manufactured Galvanised Semi Stainless Steel Pallet Truck is ideal for semi-wet environments such as dairy and fishing industries.
With a 2000 kg capacity, the truck is fitted with a chrome plated hydraulic lift ram and valve, plus a fully galvanised mainframe, wheel forks, brackets, push rods and handle. The steer wheels and tandem load rollers are long-life nylon.
The nickel coated hydraulic pump is fully sealed and “WET SPEC” models are available (in 2 sizes) with stainless steel bearings, pins, bushes and axles.
Description
- 2000 kg maximum load capacity
- 2 sizes
- 1150 mm fork length
- 85 mm lowered fork height
- 200 mm raised fork height
- Chrome plated hydraulic lift ram and valve
- Fully galvanised mainframe, wheel forks, brackets, push rods and handle
- Fully sealed nickel coated hydraulic pump (no atmosphere contaminates in hydraulics)
- Tandem load rollers nylon
- Nylon steer wheels
- WET SPEC models available with stainless steel bearings, pins, bushes and axles
- Conforms to BS EN 1757-2:2001
- CE Marked
- EC Duty Paid
| Width Over Forks | Individual Fork Dimensions (L x W) | Steering Wheel Dimensions | Load Roller Dimensions | Model Number |
|---|---|---|---|---|
| 540 mm | 160 x 60 mm | ø200 x 50 mm | ø80 x 70 mm | WRGHPESEZ20S |
| 685 mm | 161 x 60 mm | ø180 x 50 mm | ø74 x 70 mm | WRGHPESEZ20L |
