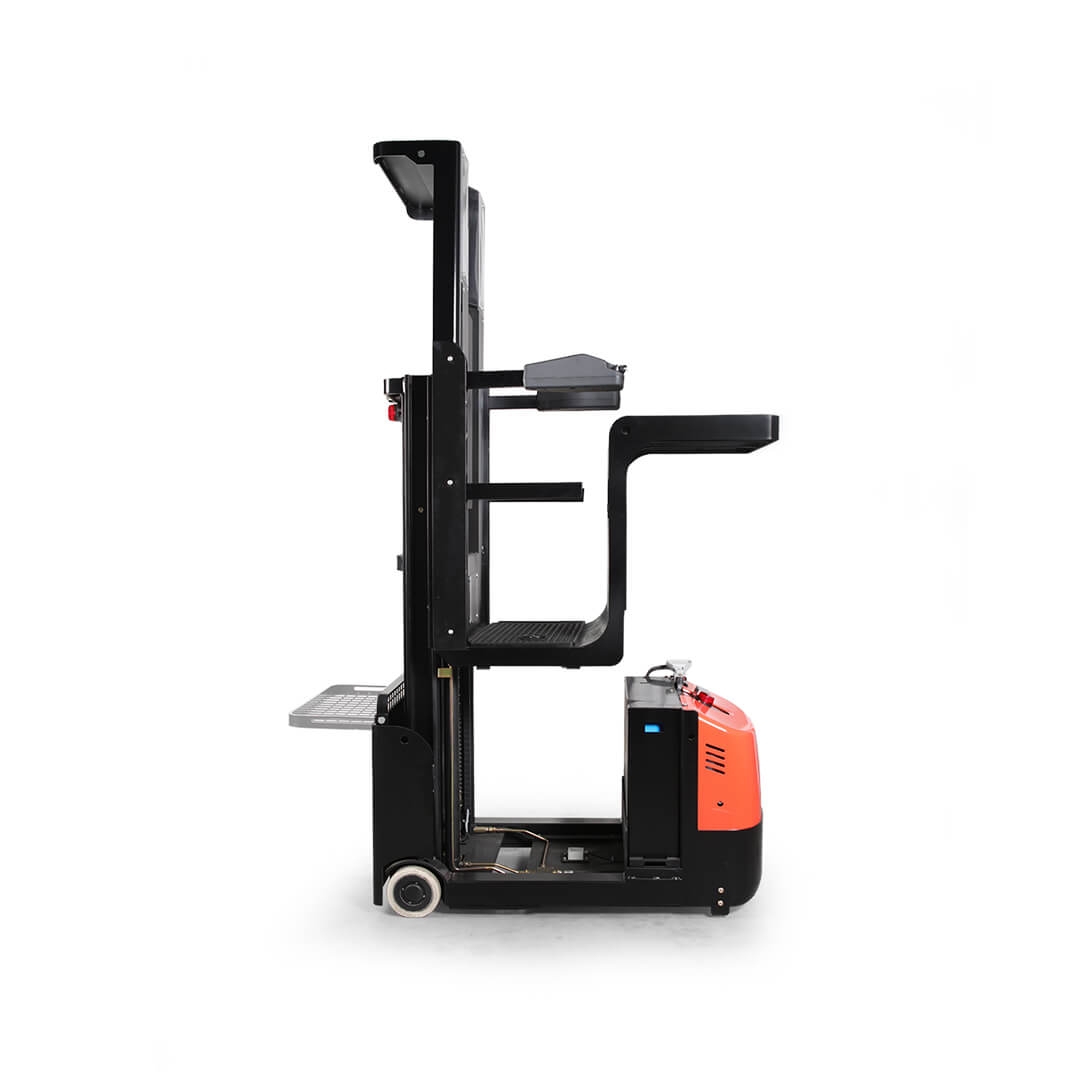

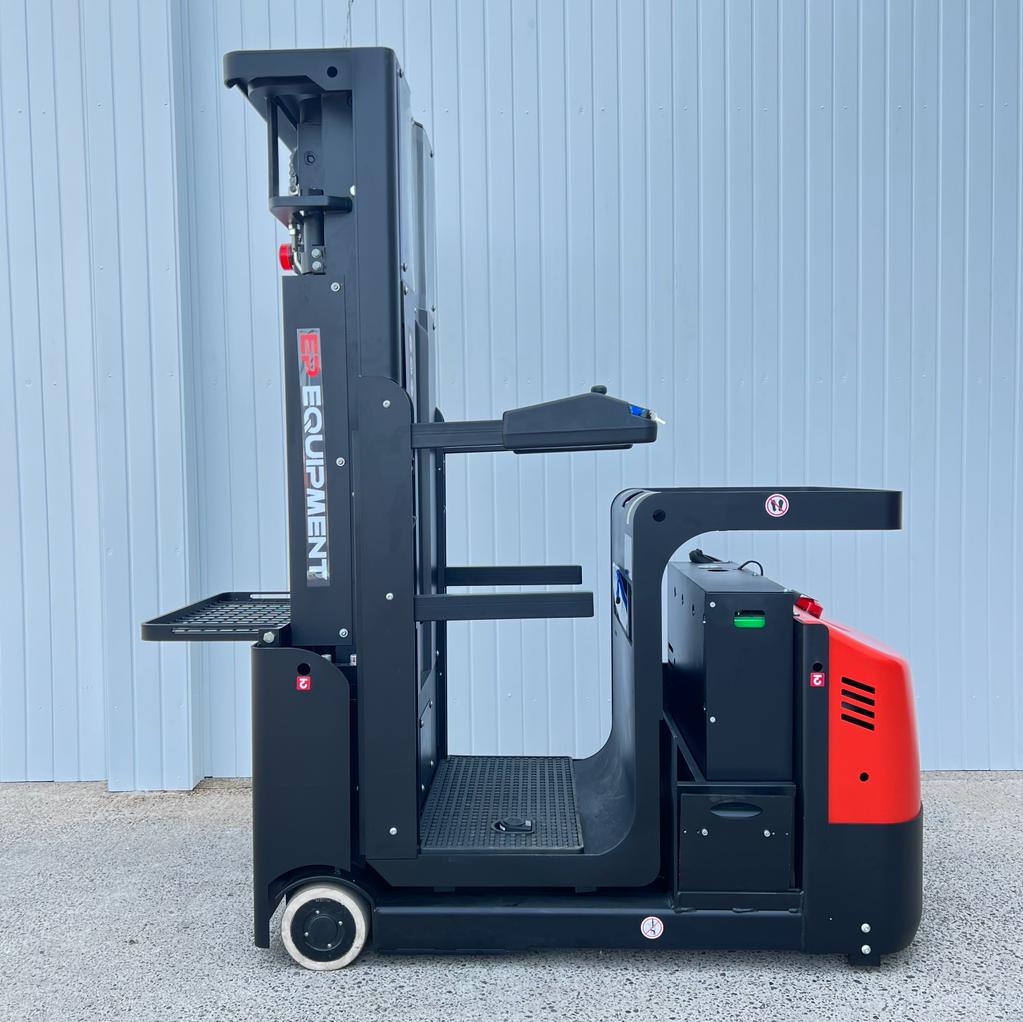

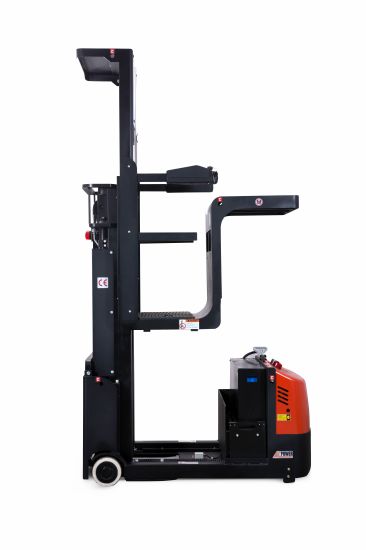

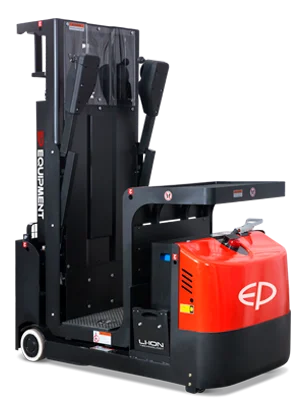

Warrior EP JX1 500kg Medium Level Order Picker

The Warrior 500kg Medium Level Order Picker has been designed, developed and built to give Outstanding Long Service with minimum maintenance required and assist with all manner of Lifting & Handling within industry and commerce.  A Sound Long Term Investment!

Buy Now


Call us 01384 895 859

In stock

Call us 01384 895 859
SKU: WRJX1 Category:


A robust, ergonomic, efficient, reliable, compact and manoeuvrable 500kg Medium Level Order Picker, symbyotic alternative to “work assist” vehicles and larger pickers

Capacity: 500kg

Picking Height – 6500mm

Lift Height: 4800mm Triplex Mast
Maximum Mast Height: 4880mm
Lowered Height: 2120mm
Overall Length: 1610mm
Overall Width: 800mm
Front Cargo Platform Width: 800mm x 520mm
Initial Height of Front Cargo Platform: 1082mm
Control Handle Height: 1010mm
Behind Platform Width: 346mm x 660mm
Overall Length Platform Launch: 1905mm
Channel Width: 1840mm
Turning Radius: 1450mm
Battery: 24V/224Ah
Charger: Free Standing
Truck Weight: 1530kg

Spacious Operator Compartment
Electronic Steering
Proportional Speed Control
Heavy Duty Lifting Assembly
Manual Emergency Descent Lever
Ease of Access for Repairs and Maintenance
Fully Programmable Parameters
Side Access Battery Compartment
Fully Automatic Battery Charger
Additional Rear Tray
Conforms to EU Standards


Additional information
