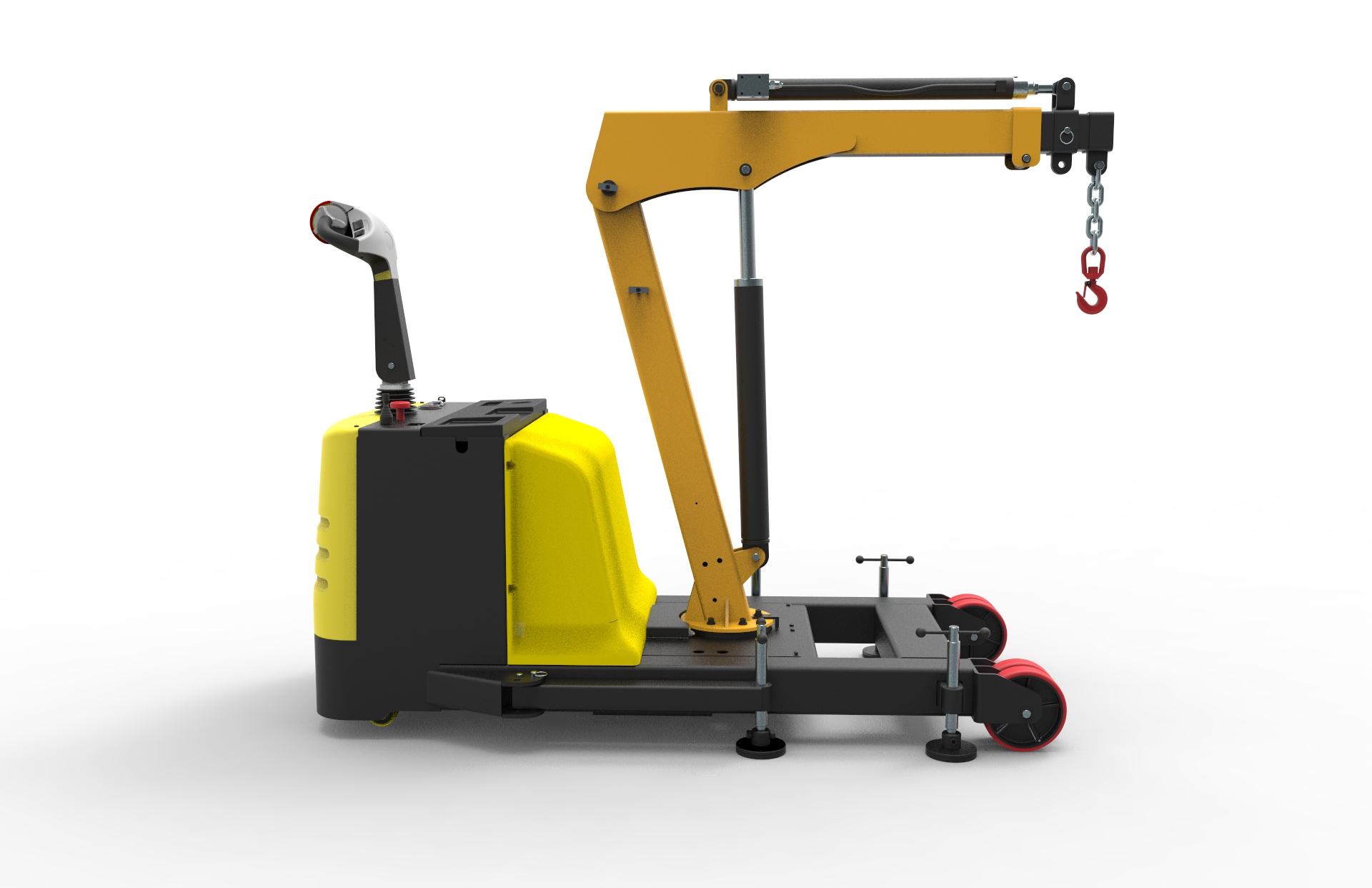

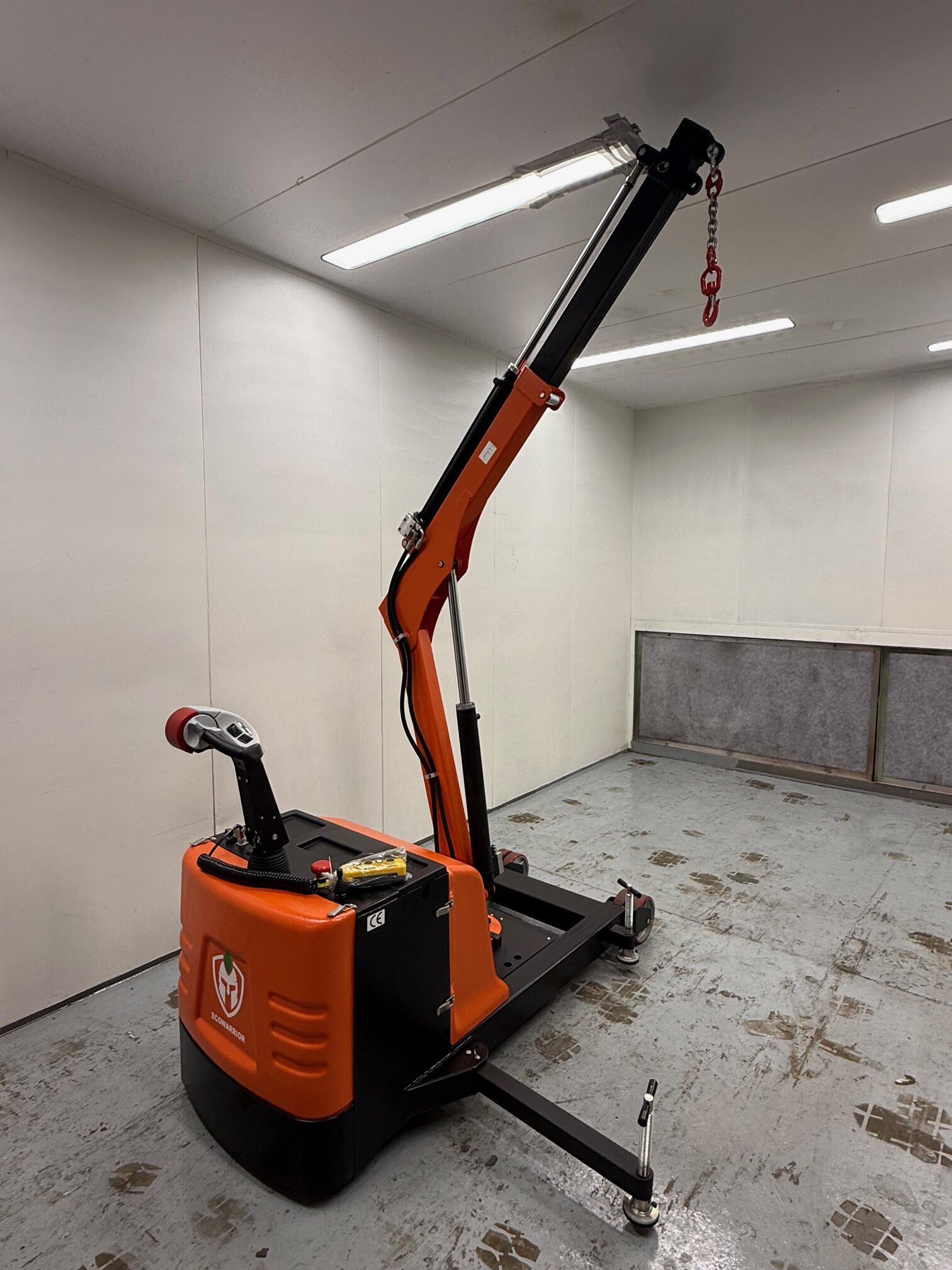

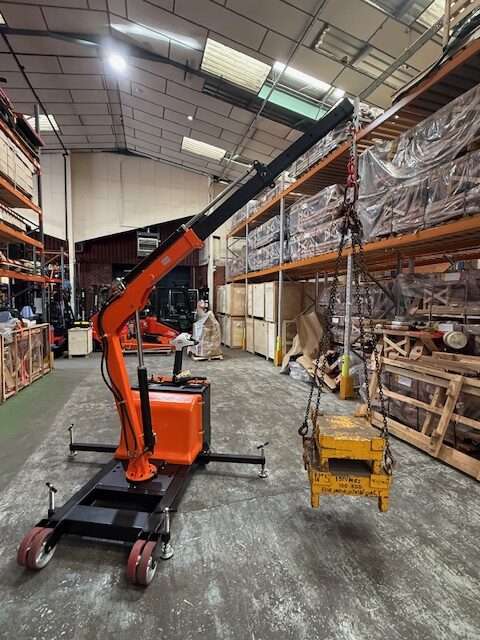

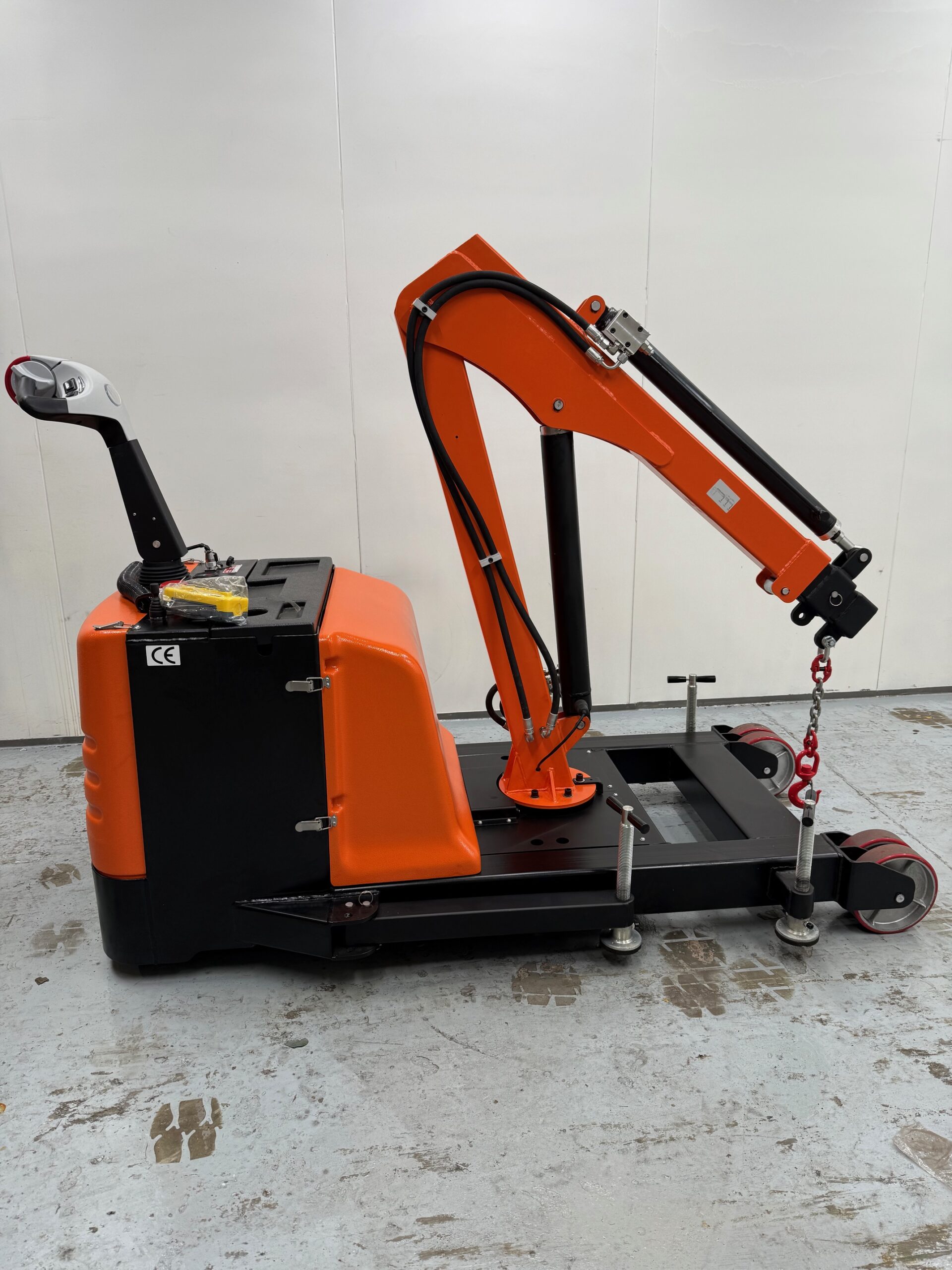

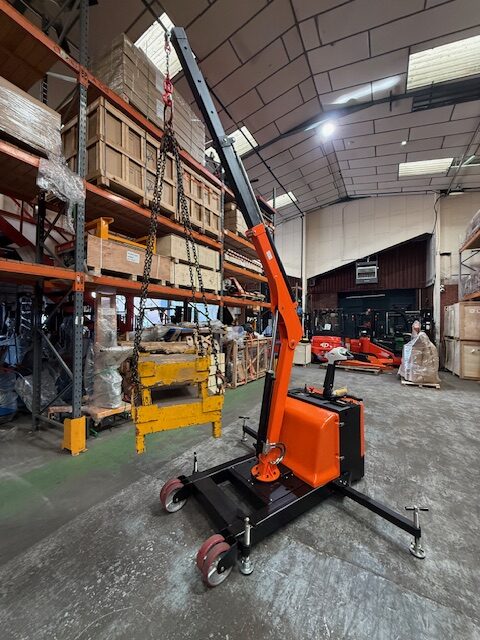

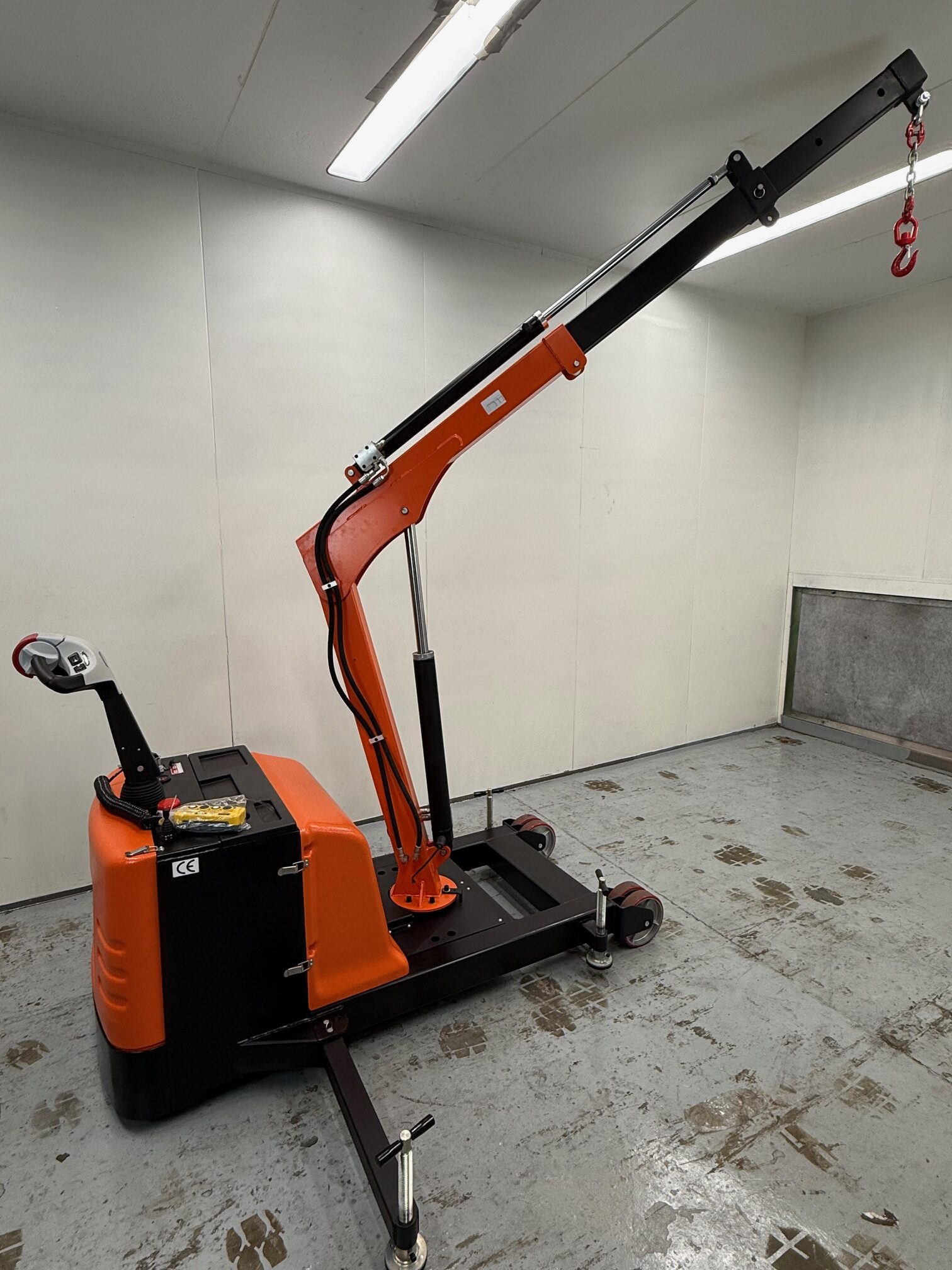

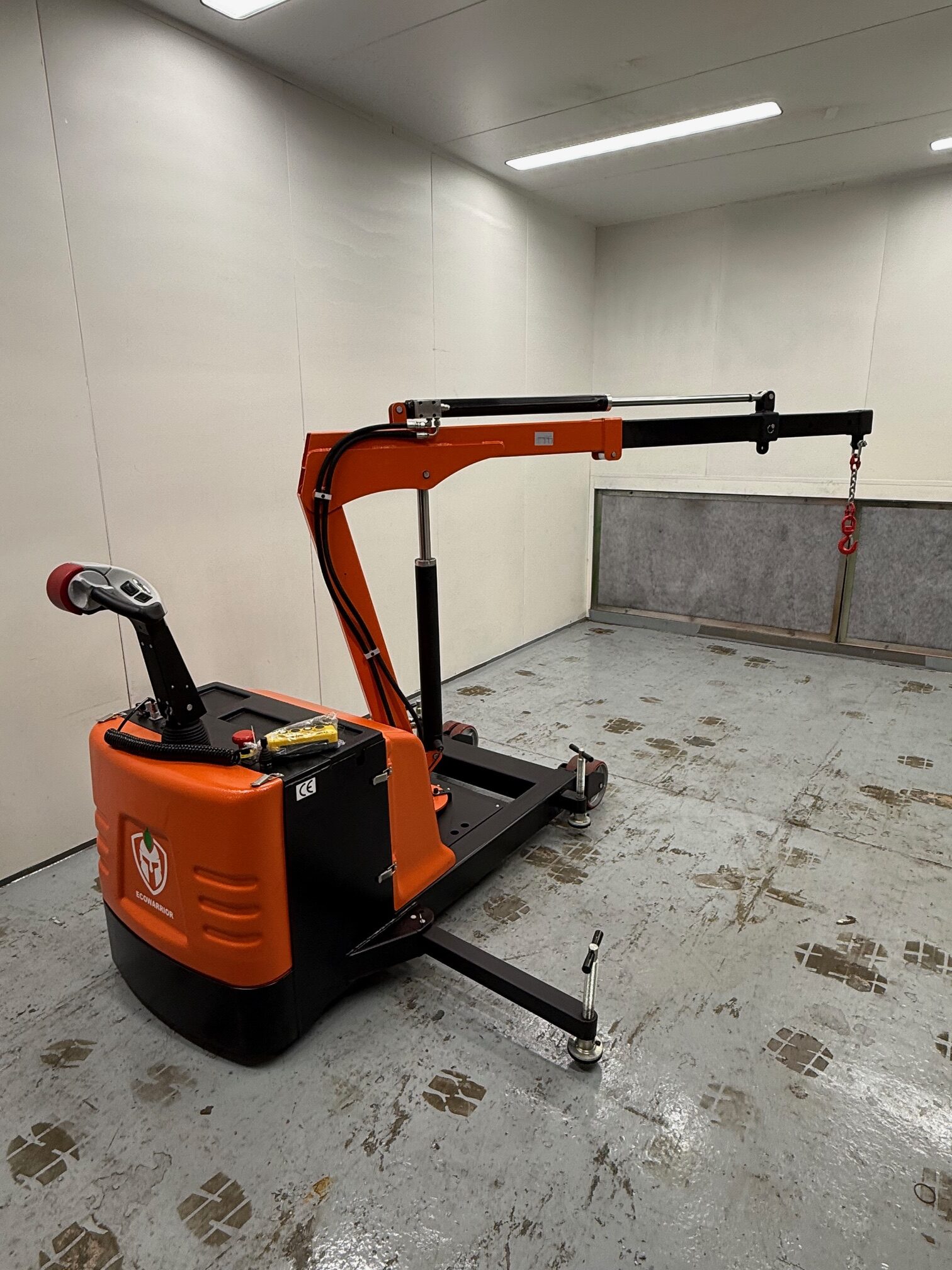

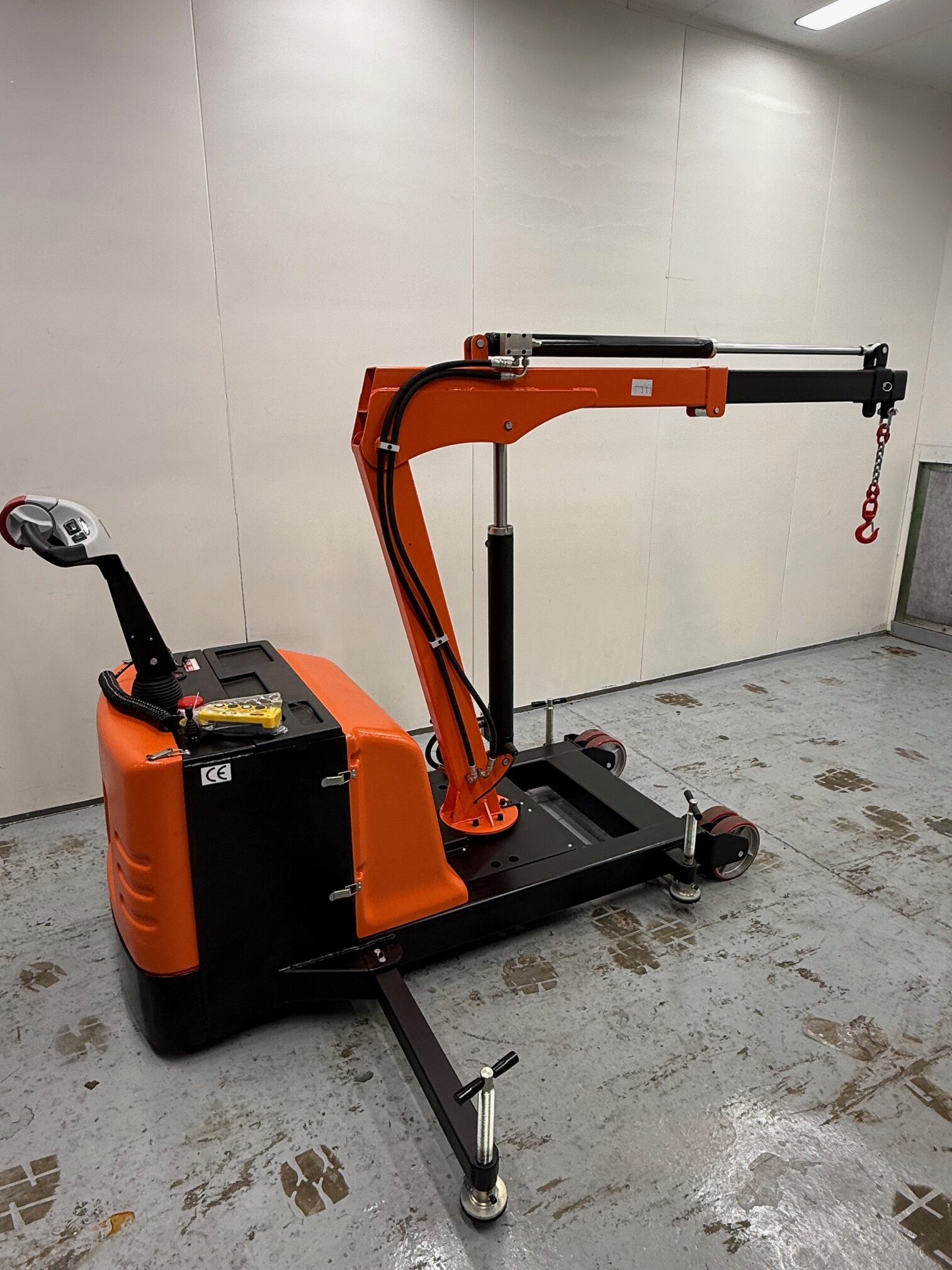

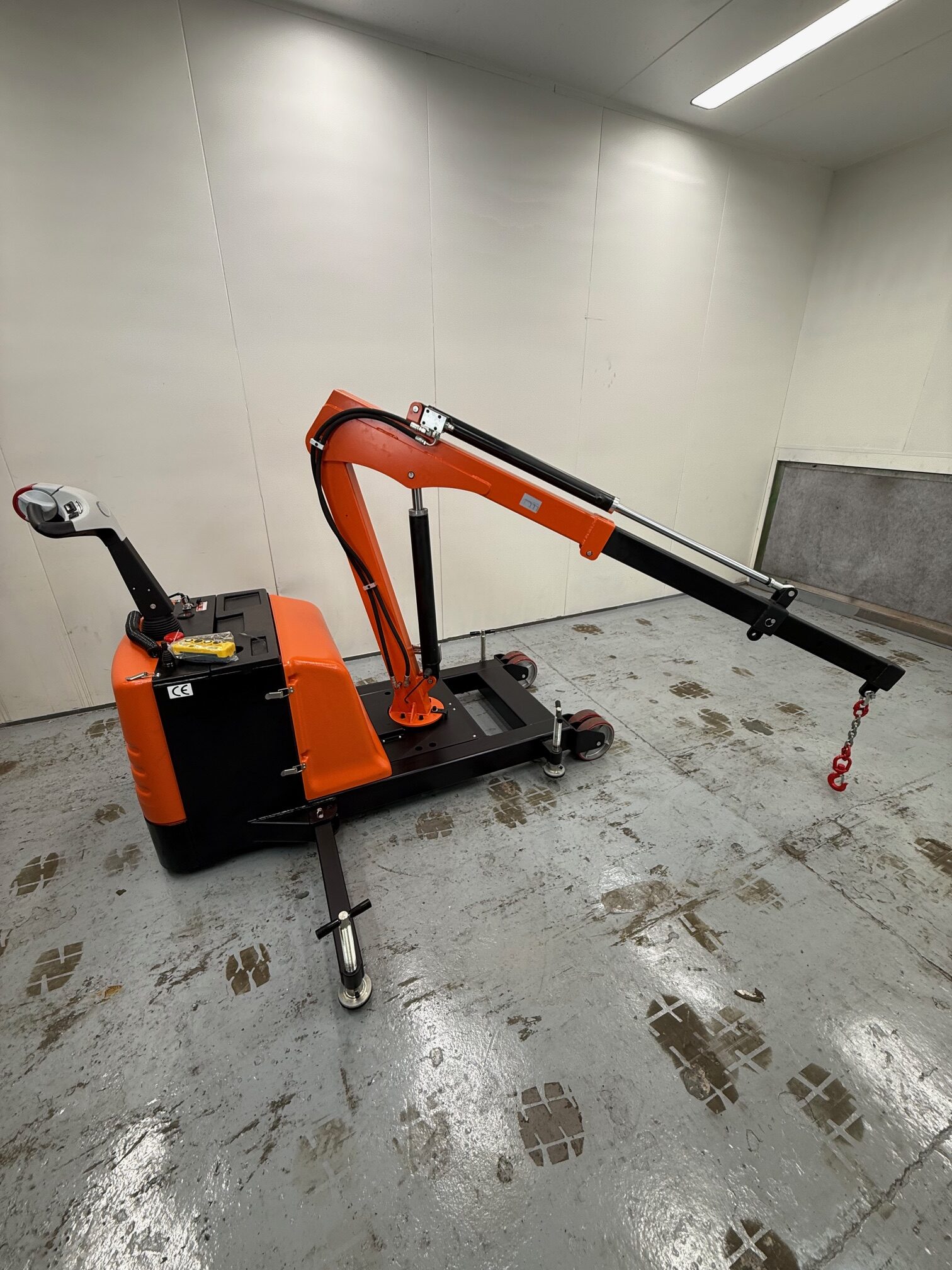

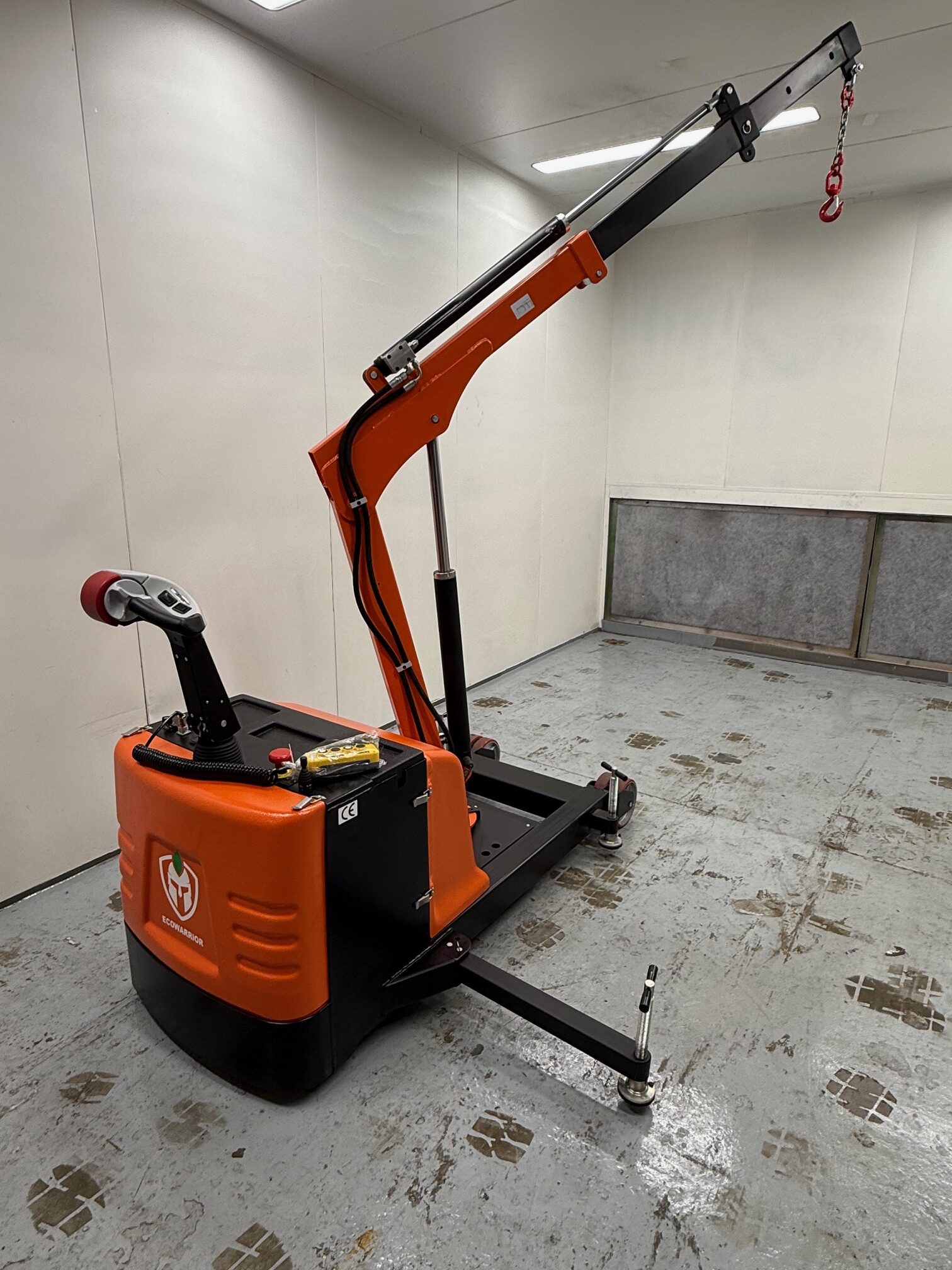

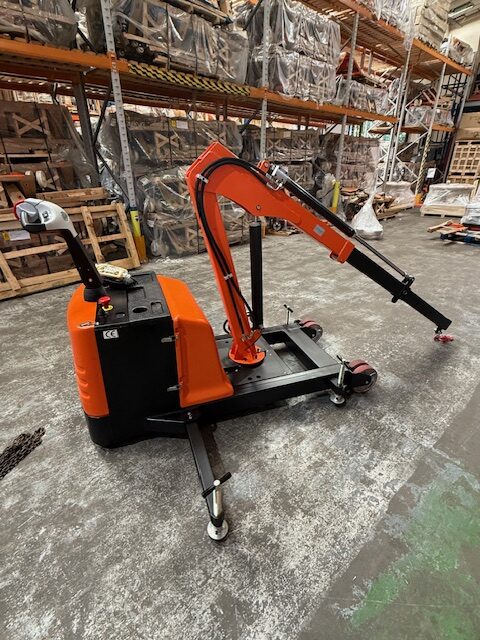

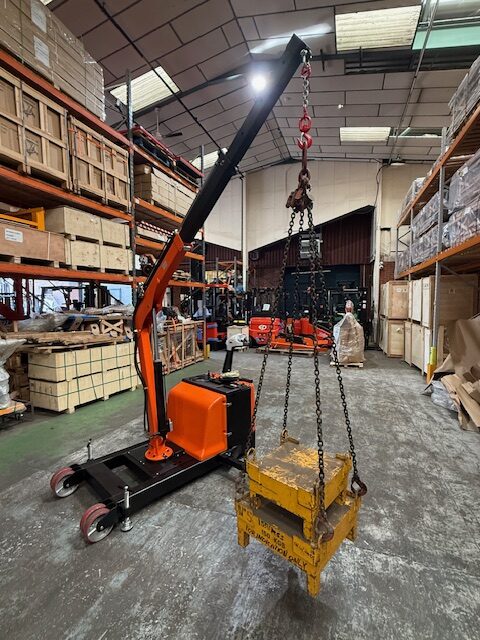

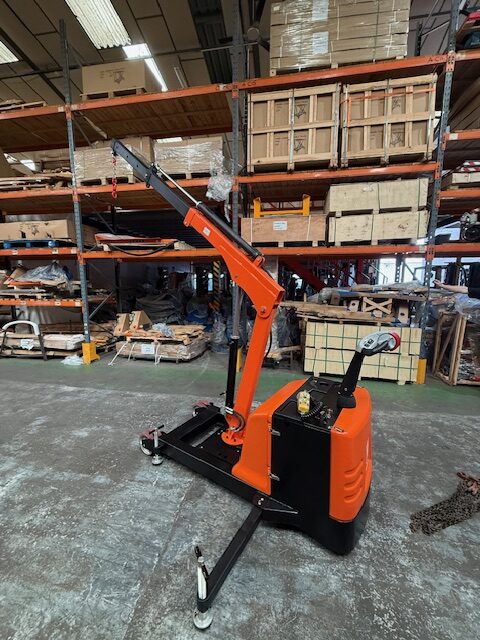

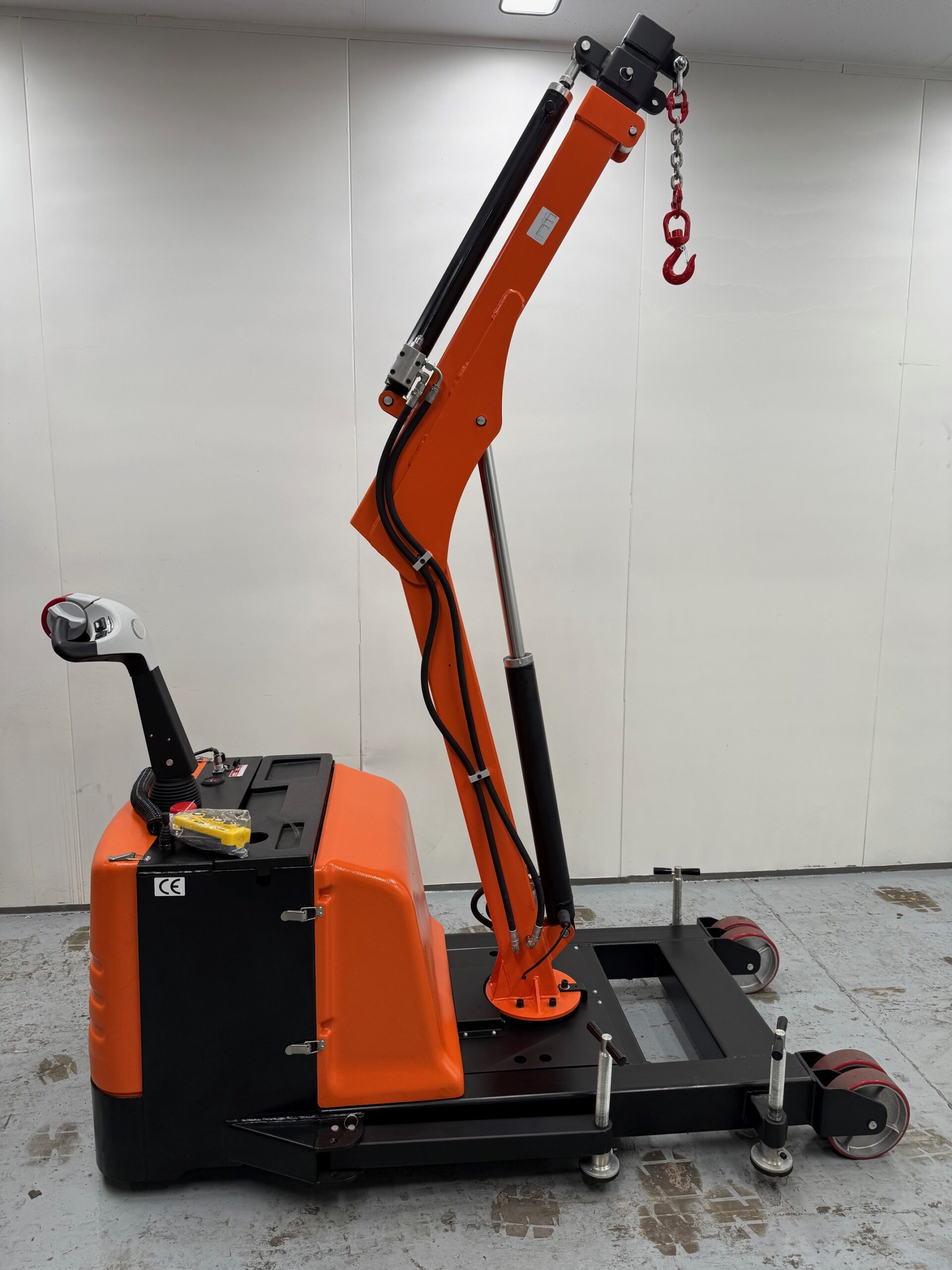

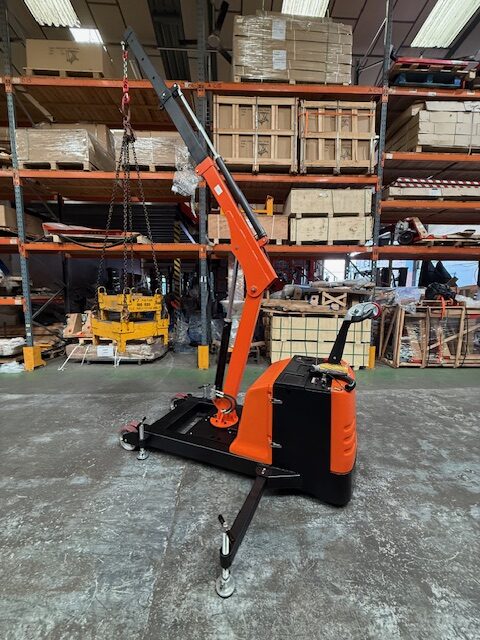

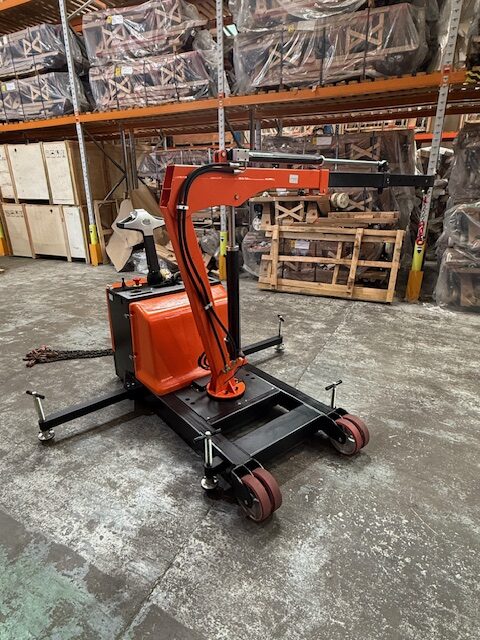

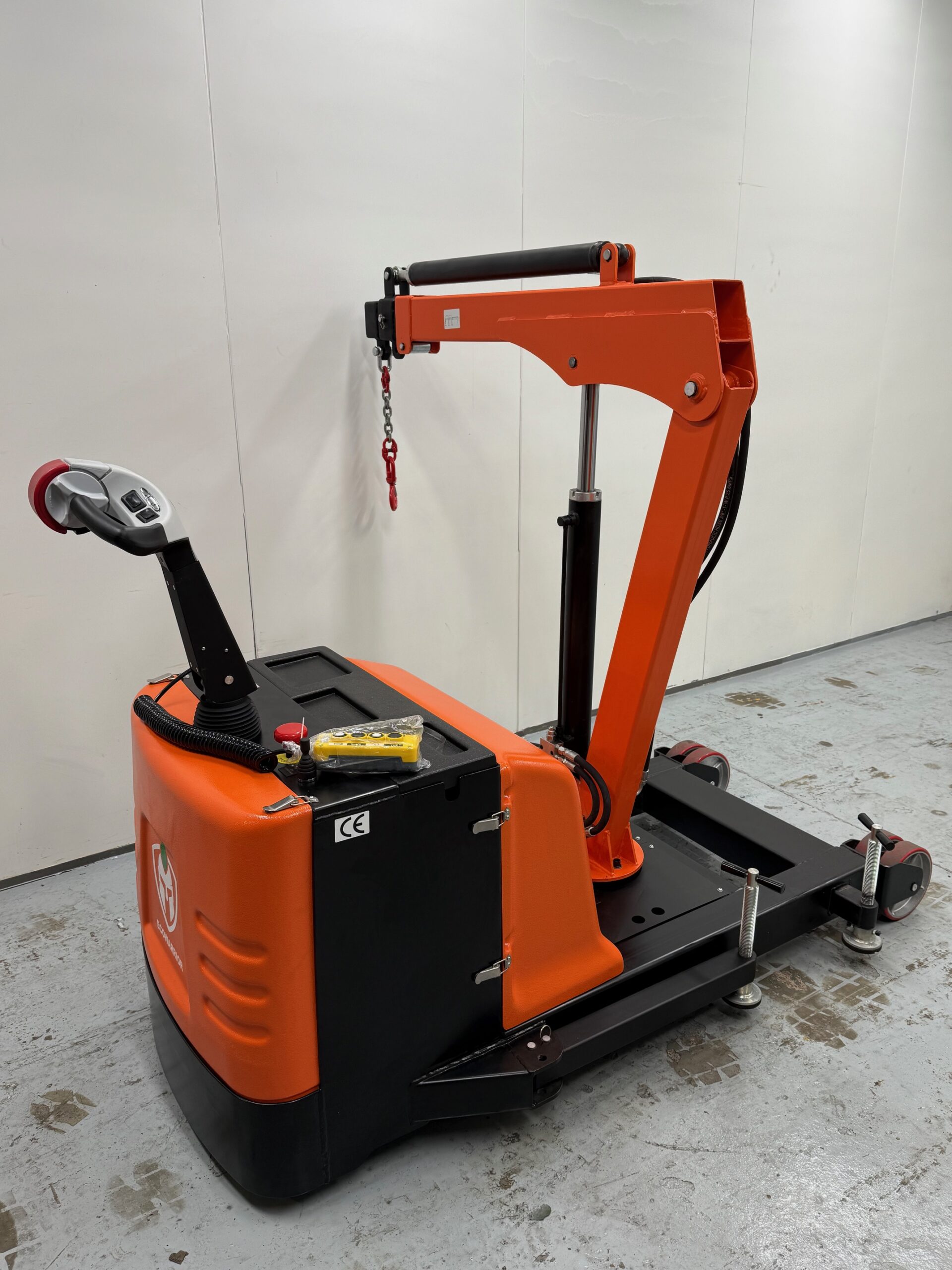

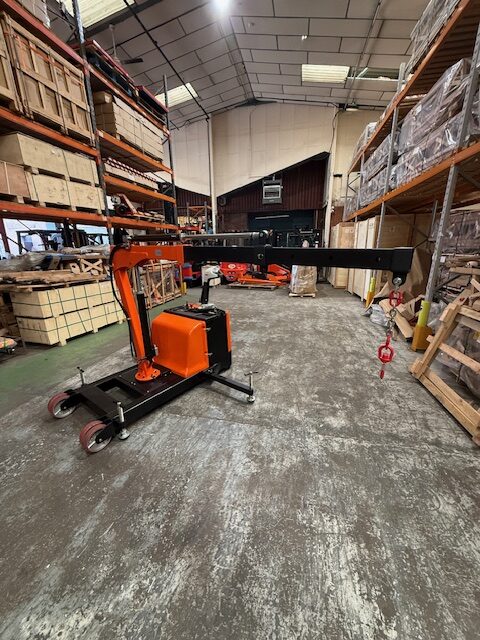

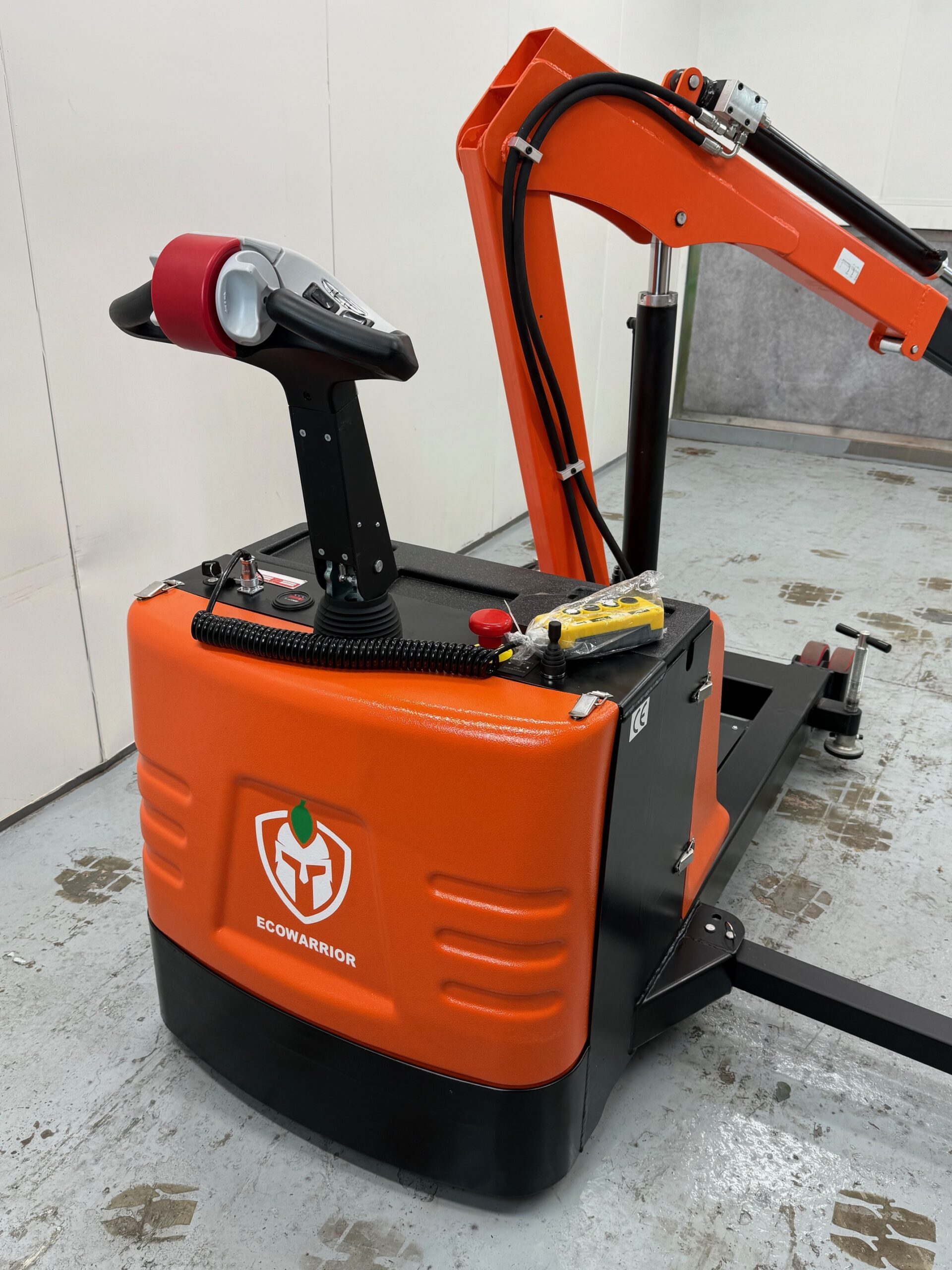

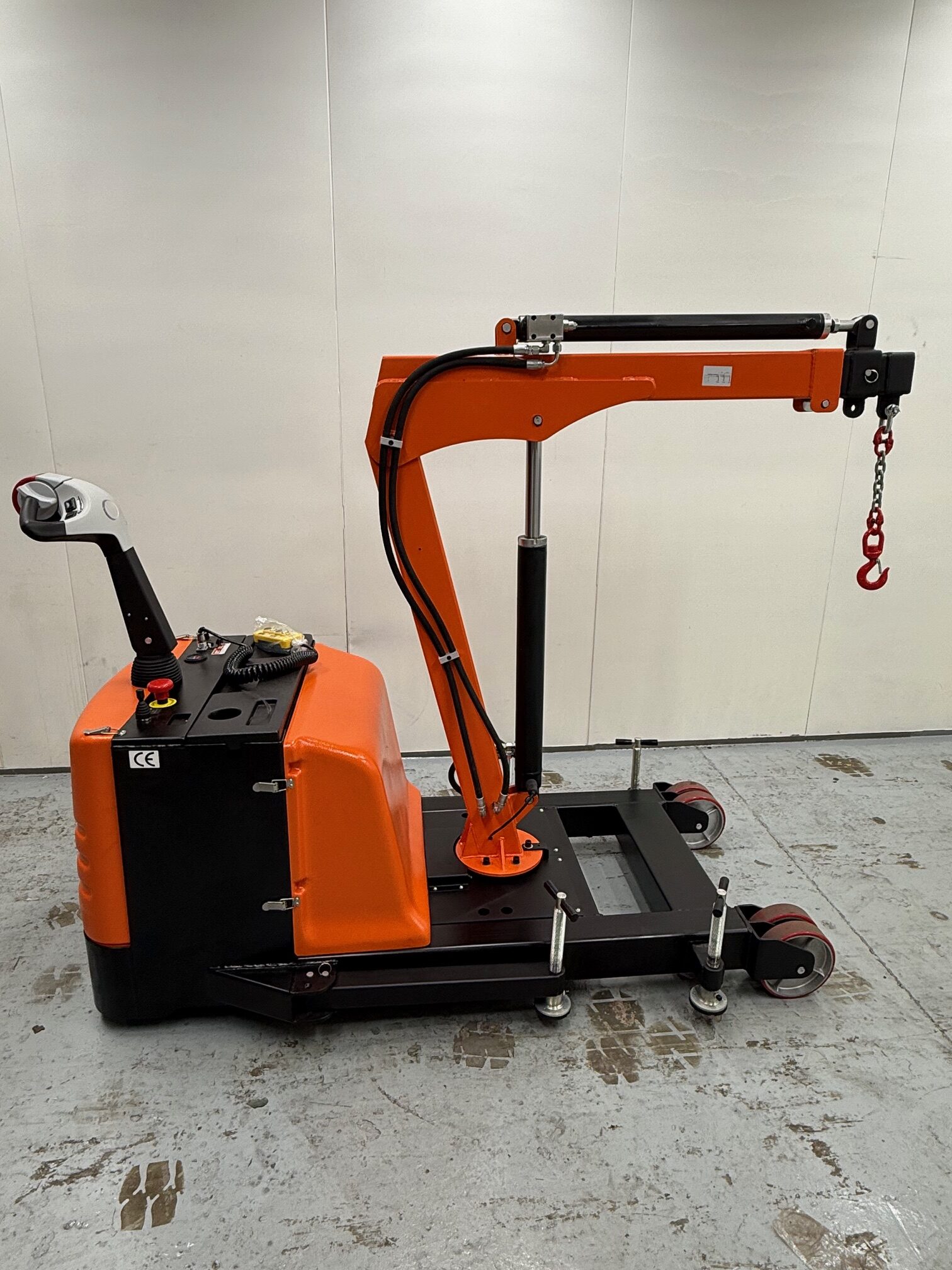

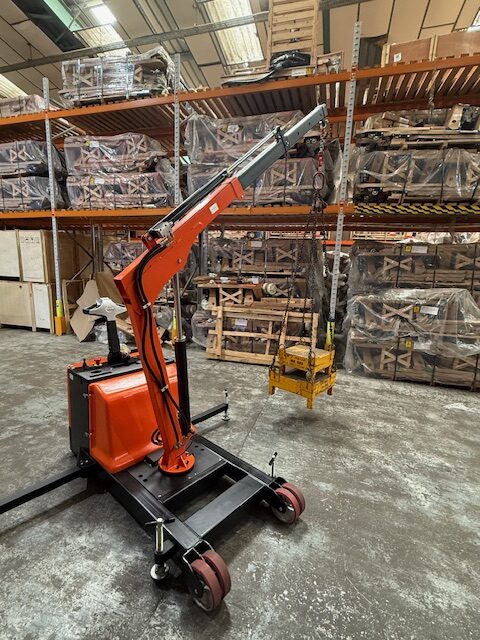

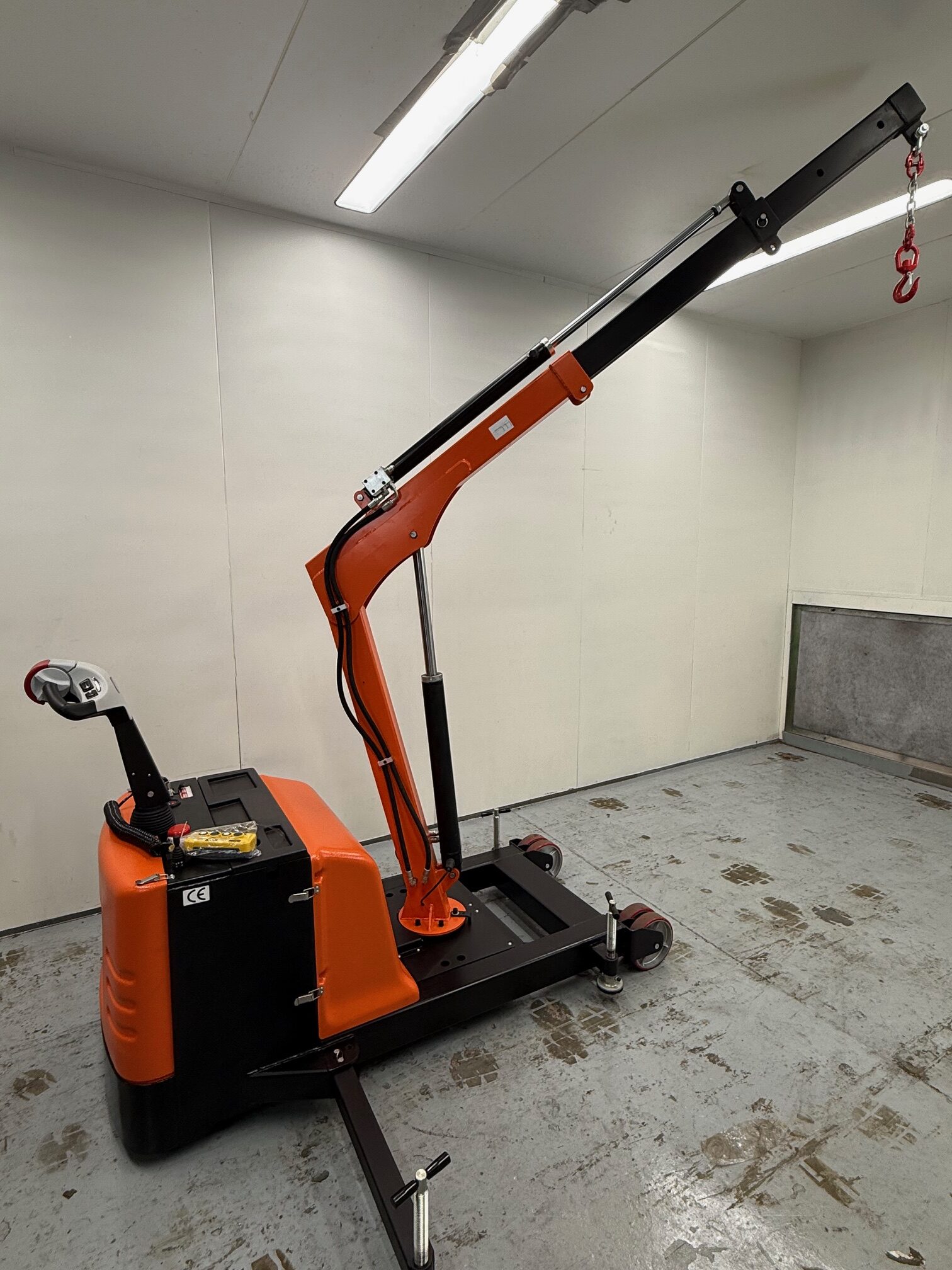

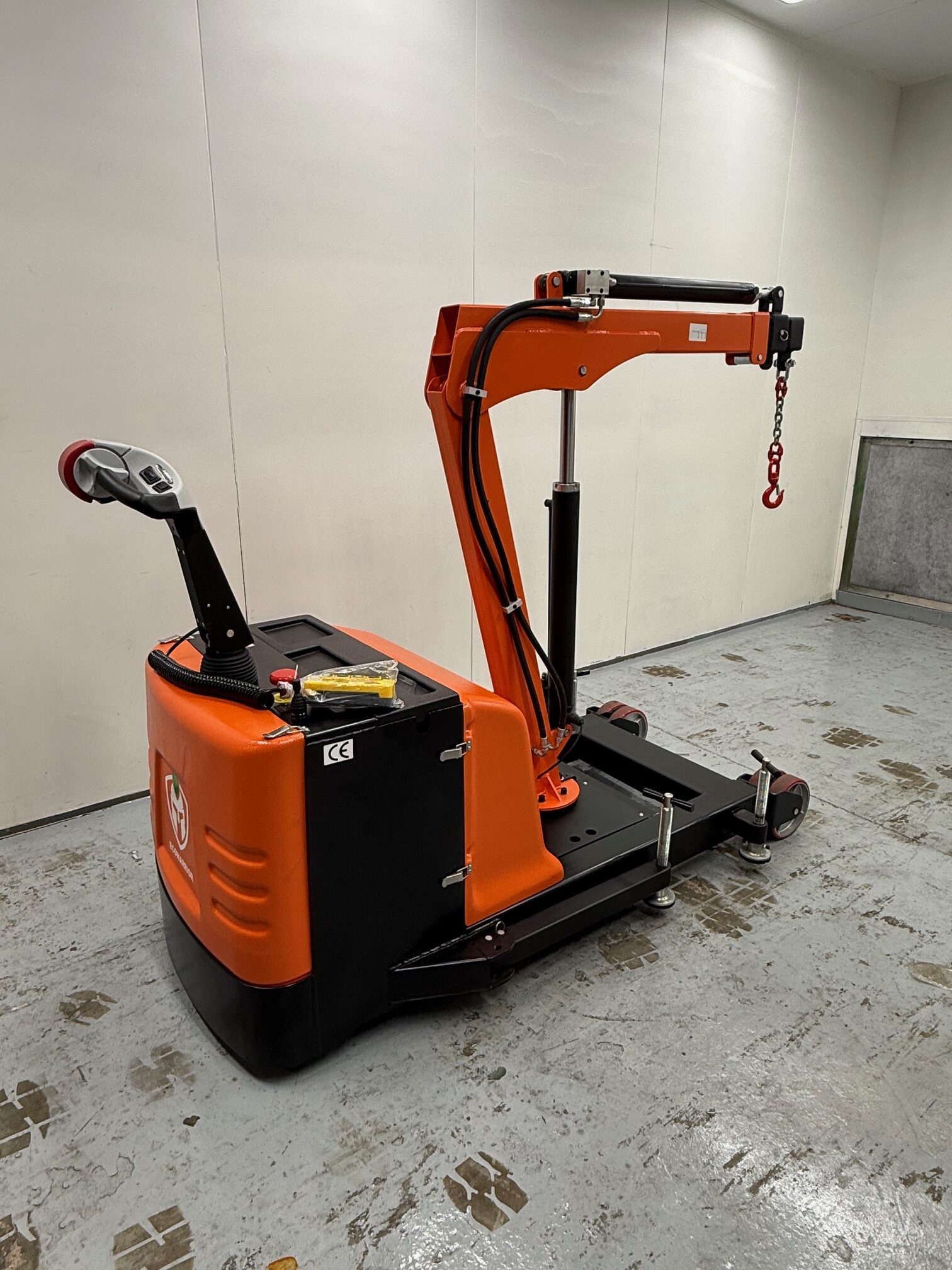

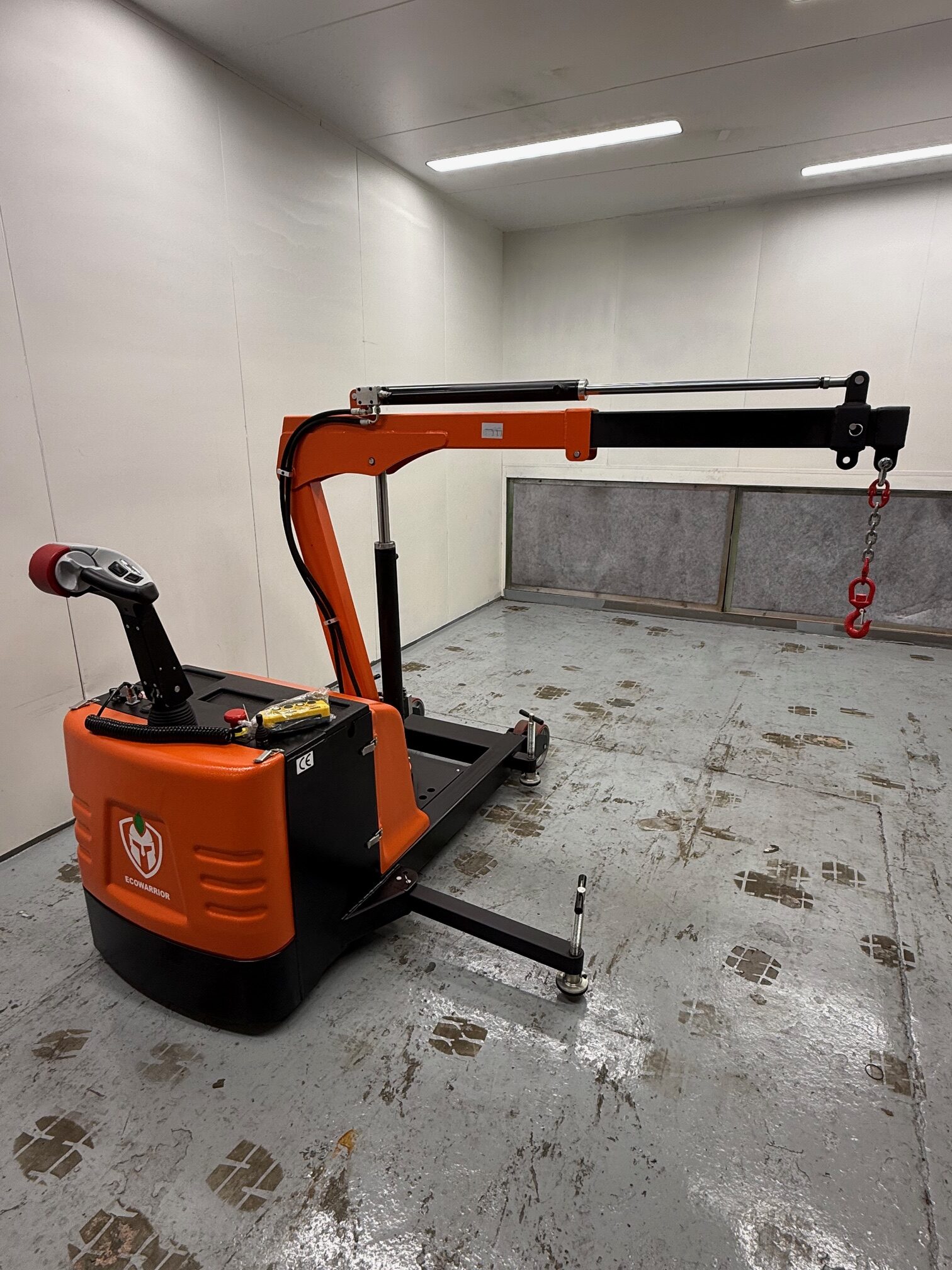

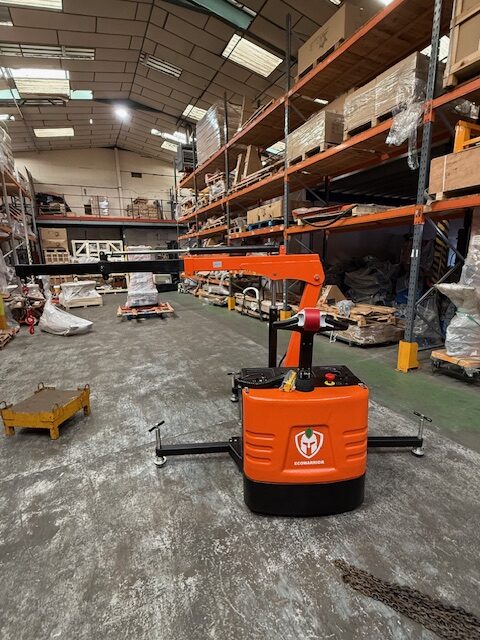

Warrior 900kg Full Electric Rotating Counterbalanced Workshop Crane with Slewing Jib

Description

The Warrior 900kg Rotating Crane features both a counterbalance and a 360 degree slewing jib. These features allow the crane to be both freestanding and mobile, in addition to its ability to slew a safe circumference with lockable rotation.

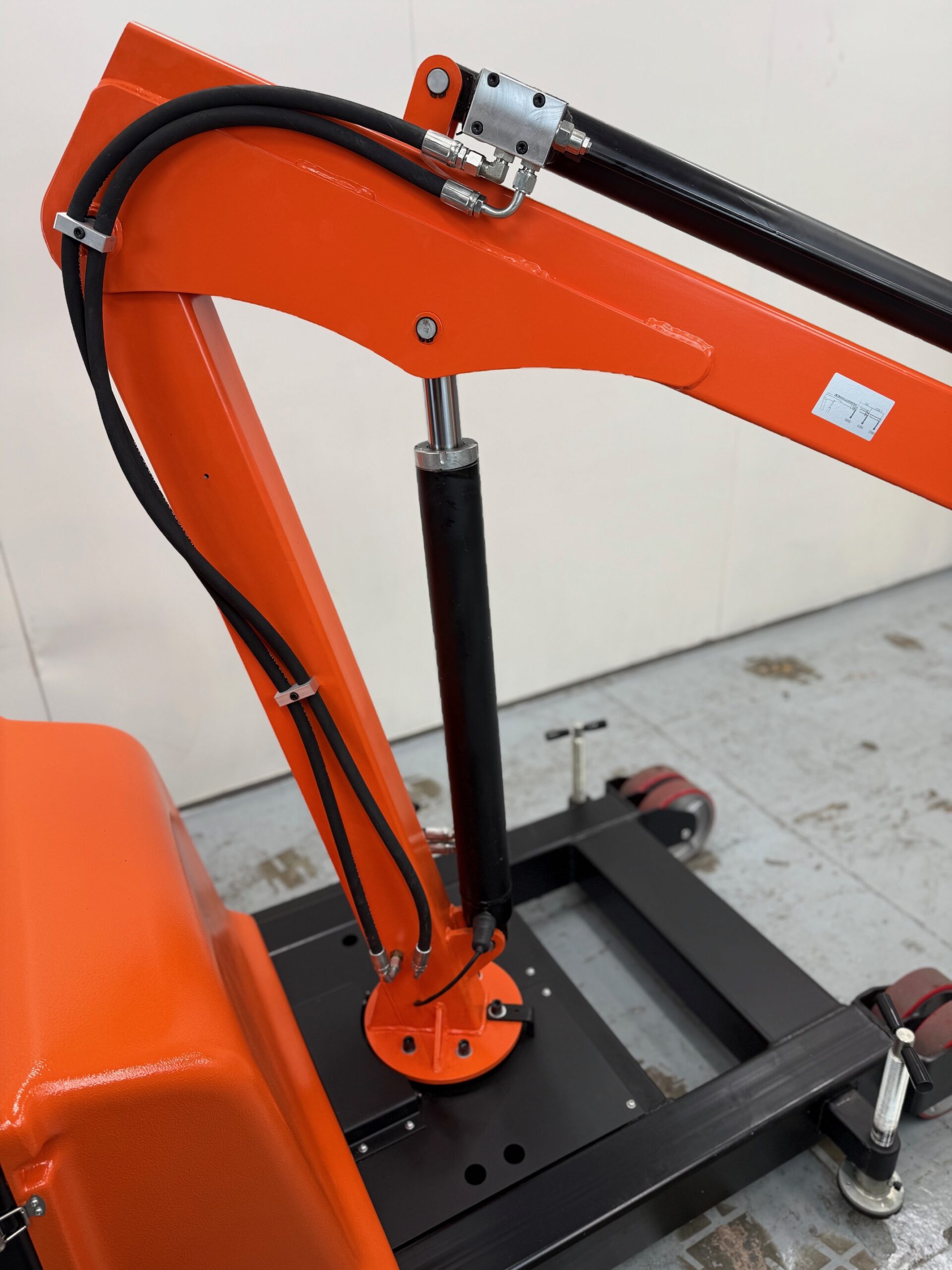

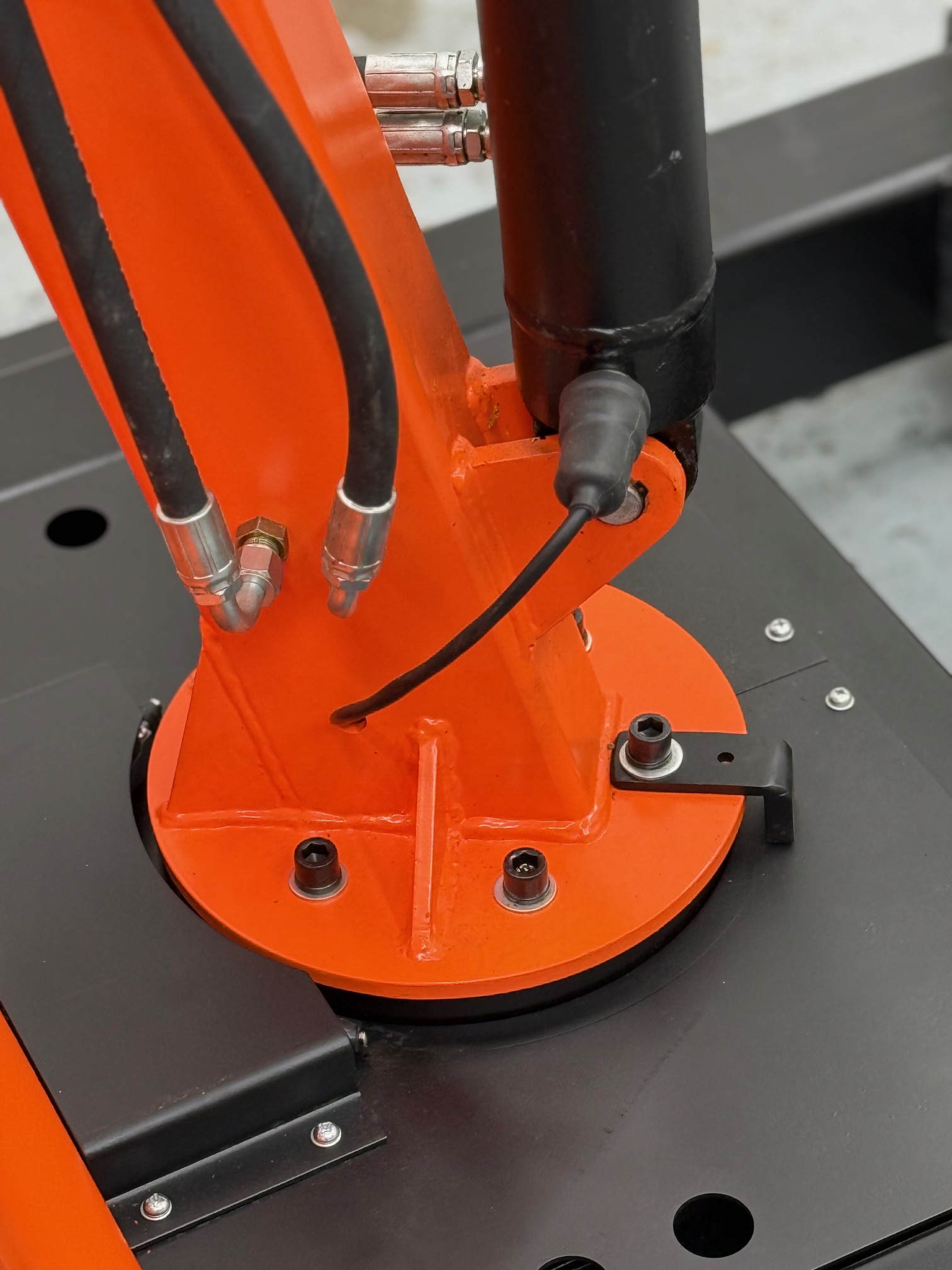

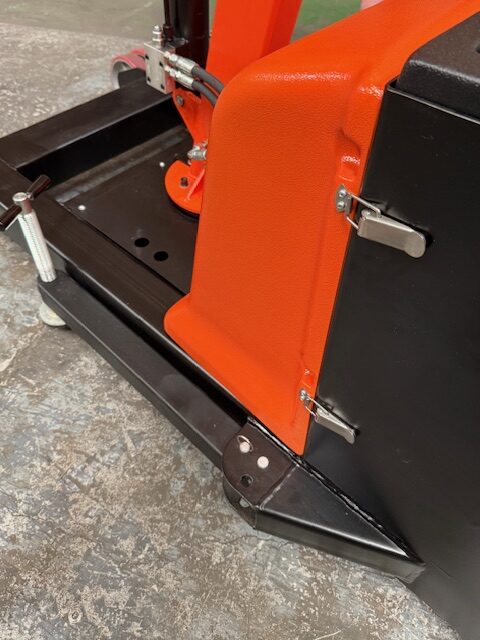

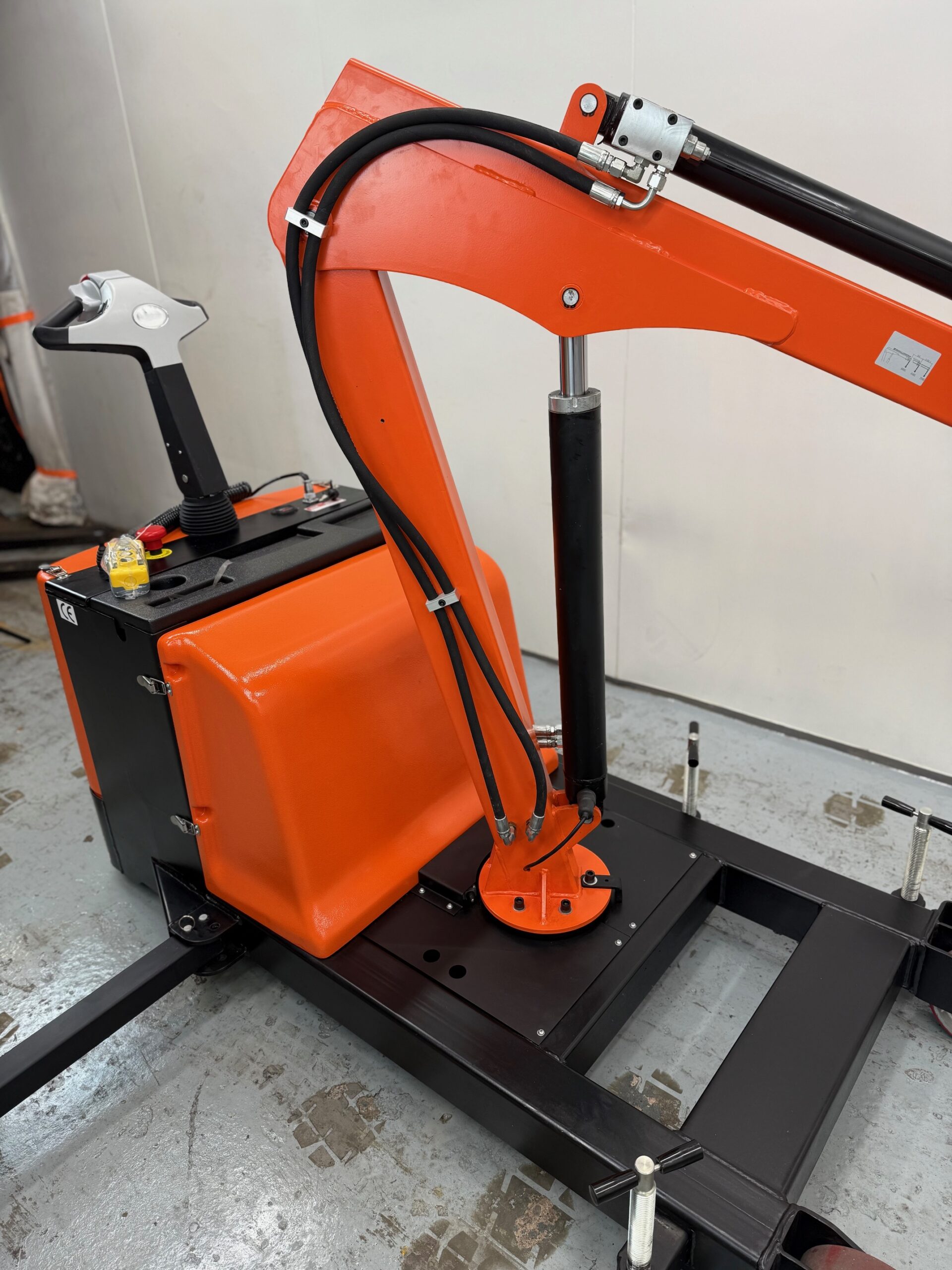

Secondly, this counterbalanced crane includes a built-in ballast weight, mounted on a precision-engineered slewing ring. This enables operators to have maximum accessibility. Also, the crane has a five-function hydraulic distributor for adjustable movement, and lowering speed can be reduced through a knob. Additionally, the lifting system is all-electric and features a key switch voltmeter and emergency stop button.

Note: this 900kg rotating crane is supplied complete with its counterbalance – no extra purchase required!

Also covered by our warranty – click here to find out more.

Features – 900kg Rotating Crane

Capacity: 900/450/250kg, dependent on jib position.

Lift Height: 3180mm

Overall Dimensions (L x W x H): 2090 x 950 x 1550mm

Battery: 2 x 12V/120Ah Lead Acid

Charger: 24V/15Ah, 100% charge in 8 Hours

• Controller:- 2207A-5102
• Drive Motor:- 24V/1000W
• Lift Motor:- 245V/2000W
• Wheel Base:- 1600mm
• Handle Height:- 1300mm
• Load Drive Speed:- 4.0km/h
• Unload Drive Speed:- 4.5km/h
• Load Gradeability:- 5%
• Unload Gradeability:- 10%
• CE Marked

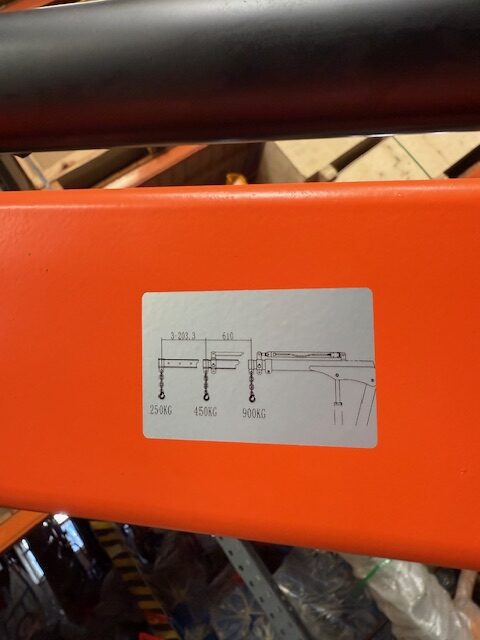

900kg Rotating Crane Capacity/Position: 250kg @
450kg @
900kg @
