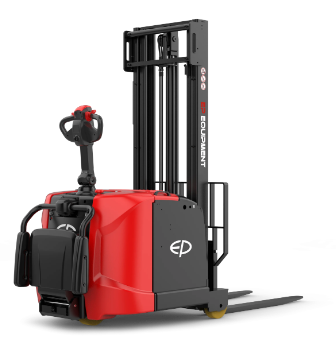

A Li-ion pallet stacker with an impressive 1200kg load capacity. The RSC122 is equipped with cutting-edge Li-ion technology and a foldable platform designed for operator comfort.
This model also comes with a rigid mast for added stability, and the fork configuration ensures that this pedestrian stacker accommodates a wide range of pallet types. In addition, this versatility allows you to carry out multiple tasks at your site using just one machine.
In addition, the RSC122’s high ground clearance allows it to navigate uneven surfaces with ease, providing a strong choice for any warehouse environment.
Dimensions – EP Equipment RSC122 Li-ion Pallet Stacker
Duplex Mast Lift Height – 3000mm
Raised height of unit – 3908mm
Lowered height of unit – 2086mm
Length to face of forks (L2) – 1598mm
Overall length – 2668mm
Overall width – 900mm
Fork dimensions – 35/100/1070mm
Fork carriage width – 620mm
Travel speed (loaded/unloaded) – 5.5/6km per hour
Lifting speed (loaded/unloaded) – 0.13/0.2m per second
Lowering speed (loaded/unloaded) – 0.16/0.15m per second
24V/210Ah Li-ion battery
We’re proud to offer industry-leading warranty policies across our entire product range. Click here to learn more about our warranty.
This model handles loads of up to 1.2T. Other capacities are available in the range. Please contact us to discuss your requirements.
