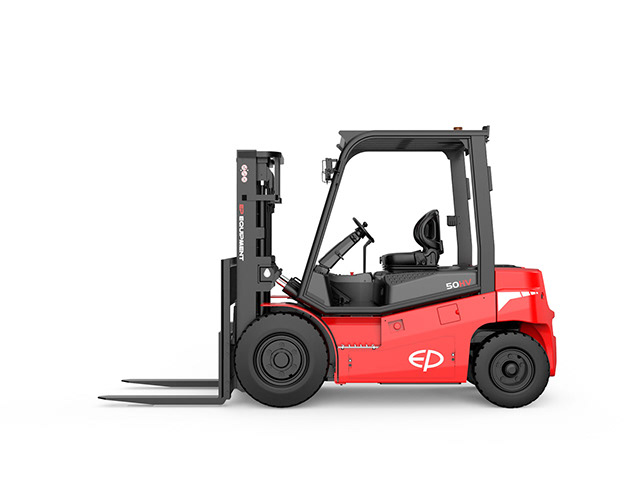

EP Equipment 5000kg High-Voltage Forklift Truck – EFL503HV

Description

By combining unmatched power with Li-ion innovation, EP Equipment is set to transform heavy-duty handling with its High-Voltage range. The company introduces the EFL503HV — a 5-tonne high-voltage forklift that features advanced permanent magnet synchronous motor (PMSM) technology. This delivers outstanding performance, long runtimes, and safety — all while remaining eco-friendly and free from harmful emissions.

EP Equipment pairs cutting-edge technology with superior performance — the EFL503HV improves output by 1.5 to 2 times over its low-voltage counterpart. Its Li-ion battery, boasting high energy density, stores significantly more electrical energy in a compact cell. High-voltage systems consume less energy yet still deliver extended runtimes — ideal for those long workdays. With an impressive cycle life of up to 4,000 cycles, these batteries provide long-lasting durability without the need for frequent replacements.

The EFL503HV also supports fast charging for quick turnarounds and minimal downtime. These models work seamlessly with vehicle-grade charging stations and support a 1C charging rate — allowing for a full charge in as little as one hour. And, as with any lithium battery, charging costs are significantly lower than fuel expenses — cutting your total cost of ownership substantially.

EP Equipment equips this 5-tonne forklift with multiple protective features to ensure team safety during operation. These include overcharge protection, over-temperature monitoring, short-circuit protection, and more — guaranteeing safe, comfortable use without compromising on power.

Features – EFL503HV 5-tonne forklift

• High speed and gradability
• Water and oil cooling systems
• Vehicle Control Unit (VCU), provides real-time monitoring for safety
• Turn speed control
• Over-speed alarm
• Hydraulic buffer system for smooth lifting and lowering
• Battery Management System (BMS) to help preserve the battery’s lifespan
• Zero emissions
• Suitable for operation in extreme temperatures

Specification

• Capacity: 5000kg at 600mm load centre
• Lift Height: 3000mm (other lift height options available)
• Height Mast Extended: 4470/3965mm
• Overall Length: 4720mm
• Overall Width: 2028mm
• Fork Dimensions: 60 x 150 x 1220mm
• Turning Radius: 3225mm
• Travel Speed, loaded/unloaded: 25/26 km/h
• Lifting Speed, loaded/unloaded: 0.51/0.53 m/s
• Lowering Speed, loaded/unloaded: 0.48/0.42 m/s
• Battery: 309V/228Ah
