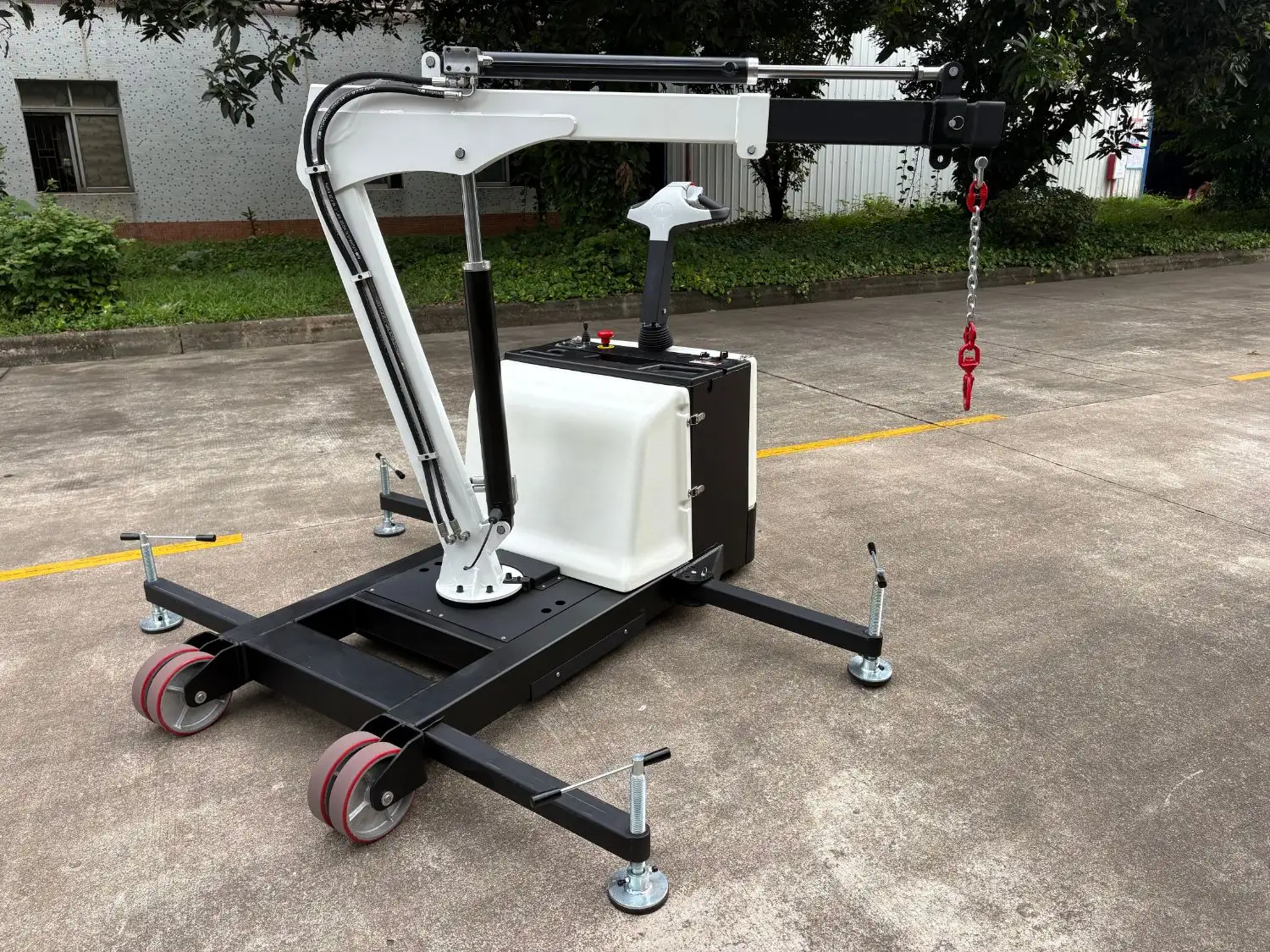

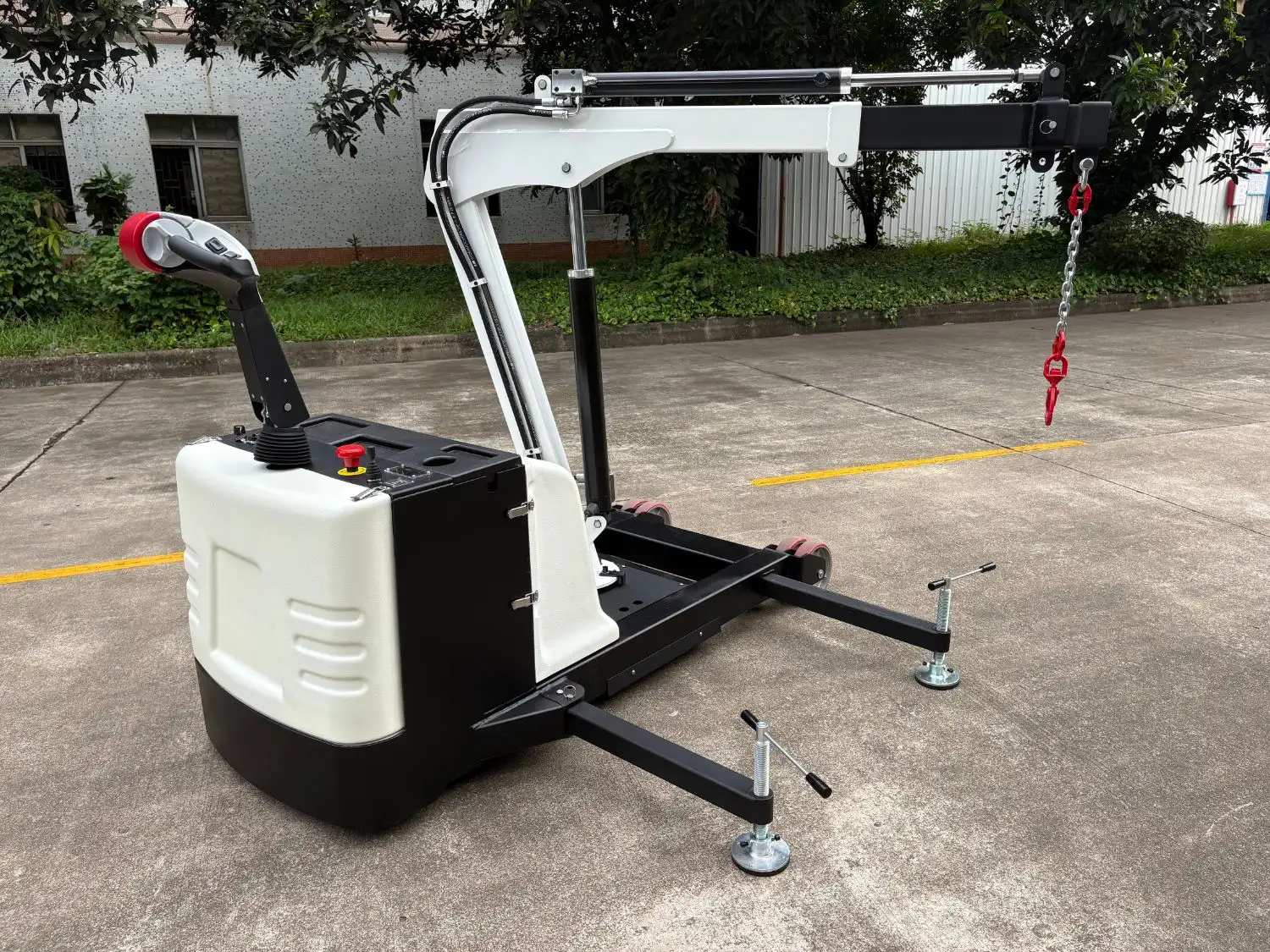

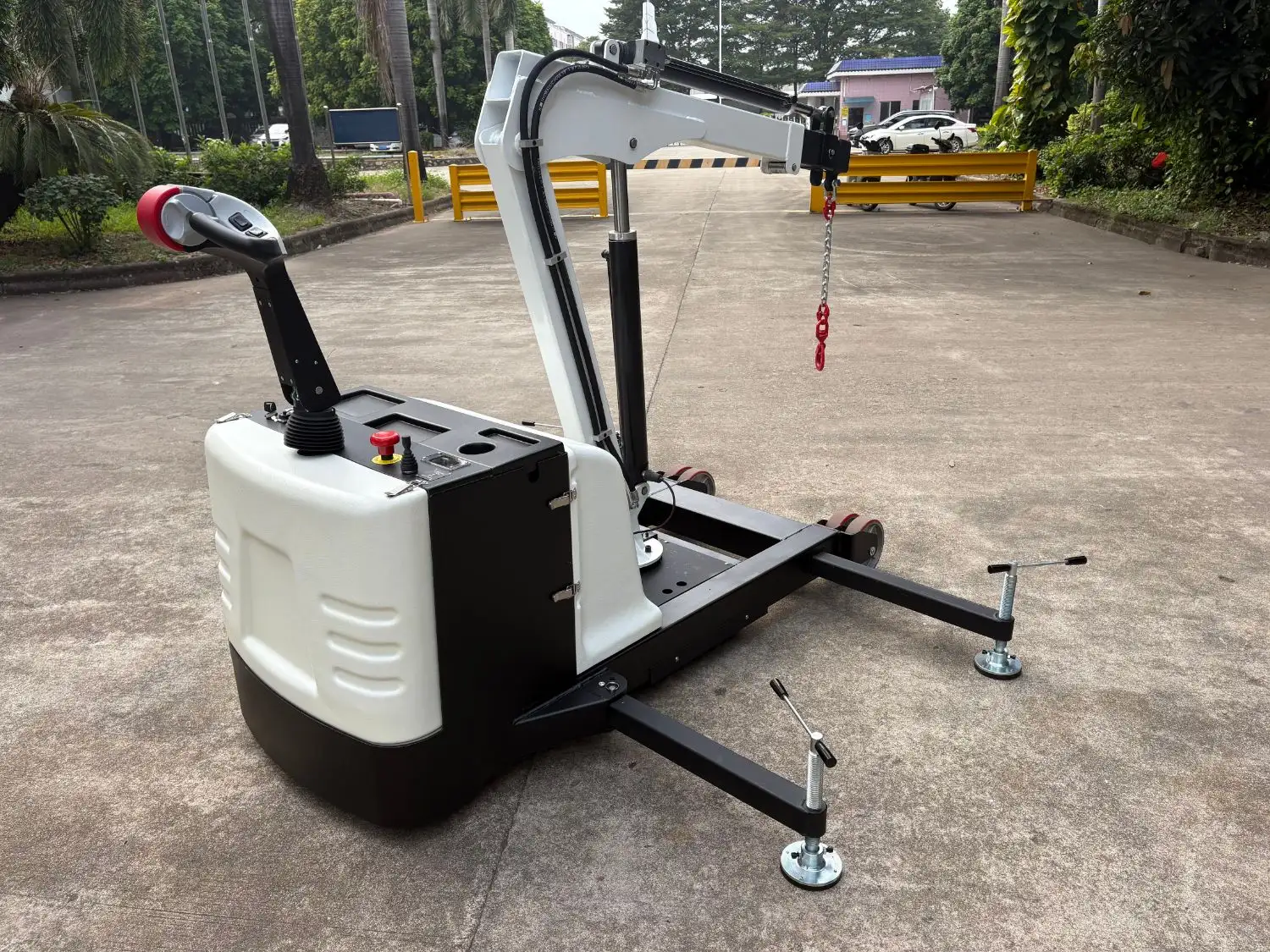

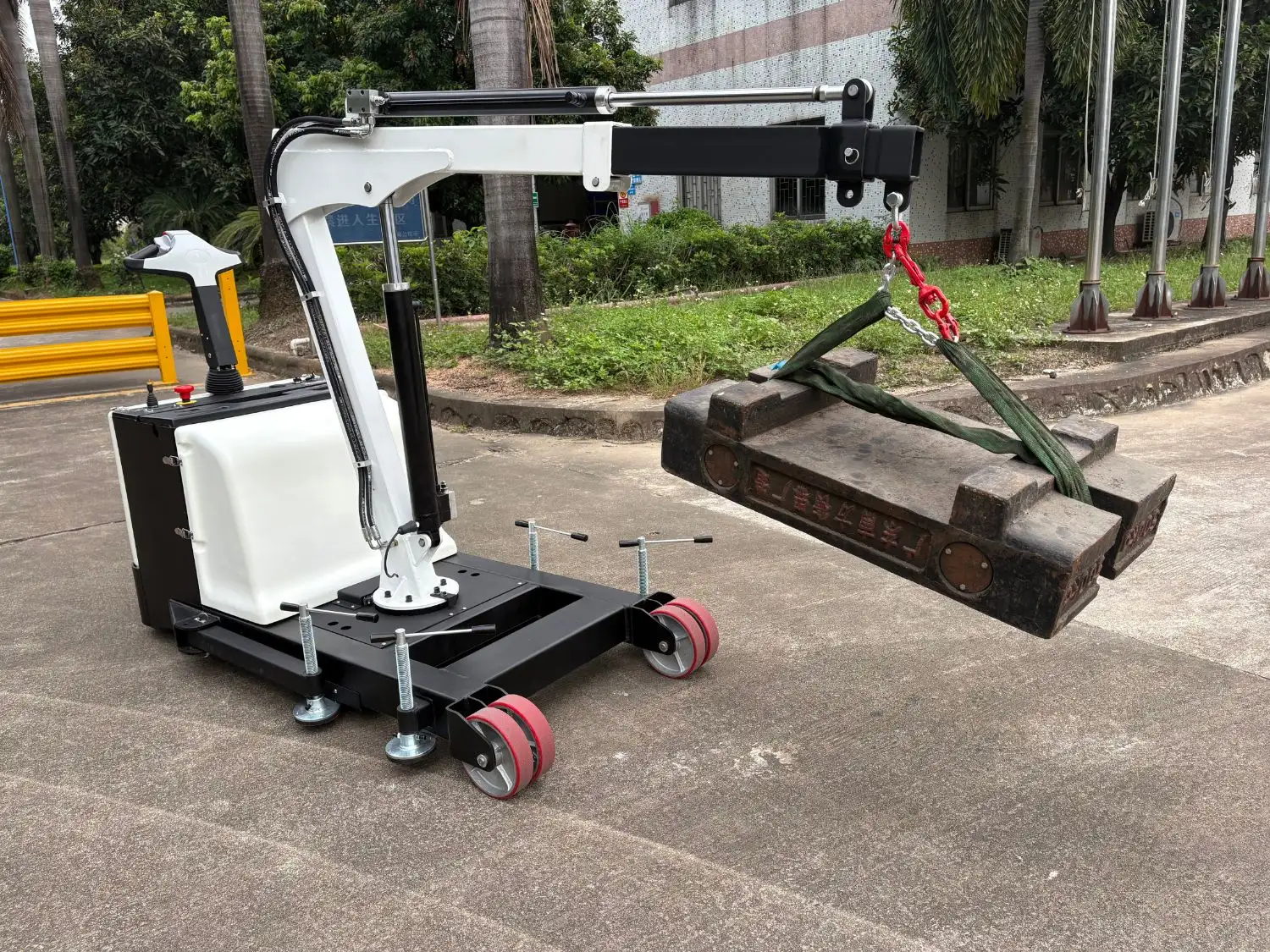

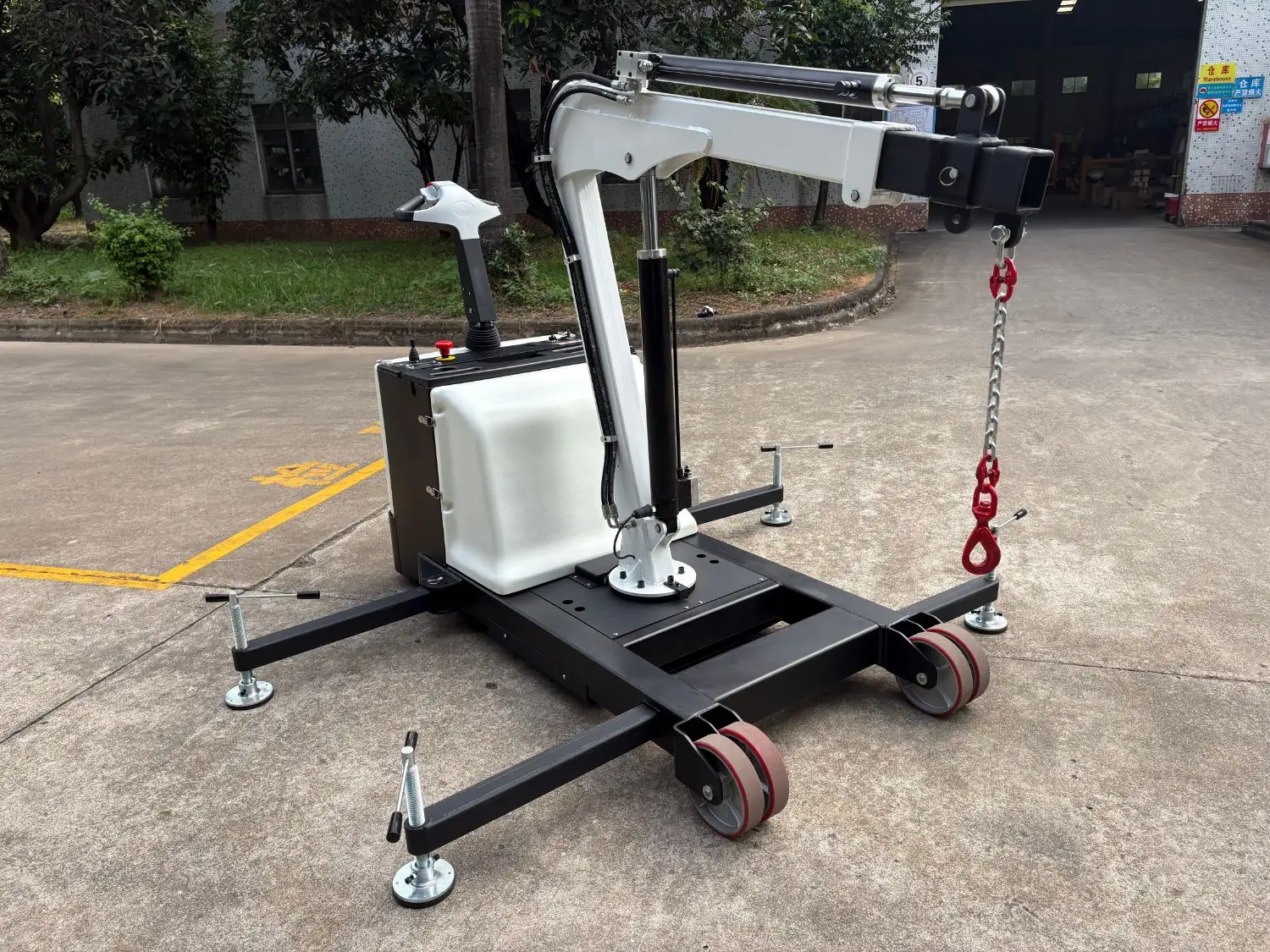

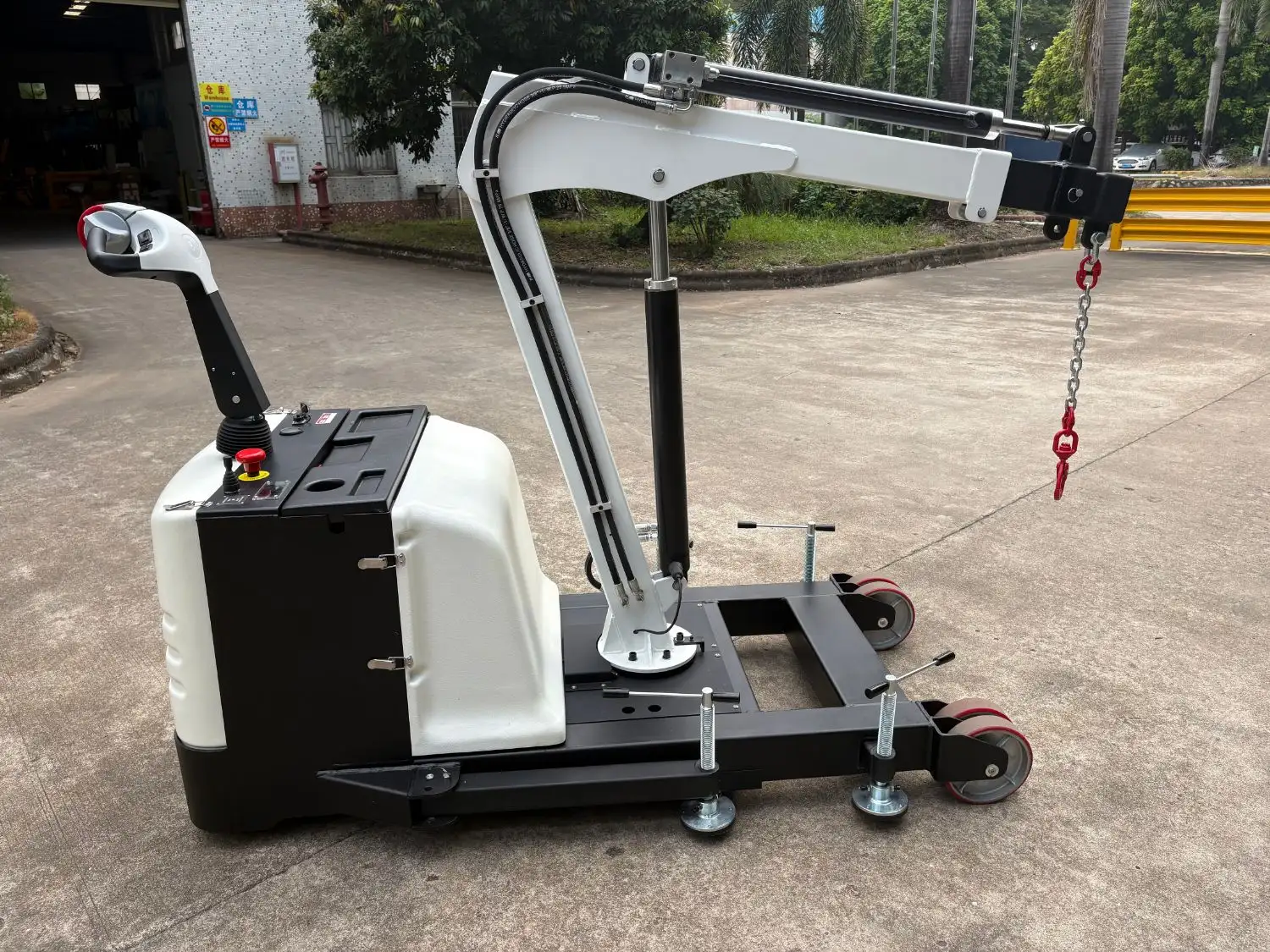

EcoWarrior 900kg Full-Electric Rotating Counterbalanced Workshop Crane with Slewing Jib

The EcoWarrior 900kg Full Electric Rotating Counterbalanced Crane with 240 degree slewing jib is mobile free standing workshop crane which has the ability to safely slew its jib through 240 degrees. The crane jib is mounted on a precision engineered slewing ring which allows maximum accessibility. Its has a five function hydraulic distributor which allows for adjustable and smooth jib lifting, lowering, extension and retraction. Lowering speed can be reduced through a flow control wheel. The lifting system is fully powered with a key switch, voltmeter with an emergency stop button with lockable rotation. Counterbalanced floor cranes with a high capacity slewing jib are the perfect solution for those industries that choose not to invest in fixed structures in order to have the possibility to modify their layout without constraints. These are primarily useful in tooling environments

• Counterbalanced power drive/lift/slew crane
• 900kg
• Power drive
• Power lift/lower
• Power reach/retract
• 240 deg power slew
• E stop
• Remote pendant control for hydraulic functions

• Capacity:

  900kg/450kg/250kg

• Lift Height:

  3180mm

• Overall Dimensions (l x w x h):

  2090 x 950 x 1550mm

• Net Weight:

  738Kg

• Battery:

  2 x 12V/120Ah Lead Acid

• Charger:

  24V/15A

• Fully Charge Time:

  8 Hours

• Controller:

  2207A-5102

• Drive Motor:

  24V/1000W

• Lift Motor:

  245V/2000W

• Wheel Base:

  1600mm

• Handle Height:

  1300mm

• Drive Wheel:

  250 x 80mm diameter

• Front Wheel:

  200 x 50mm diameter

• Load Drive Speed:

  4.0km/h

• Unload Drive Speed:

  4.5km/h

• Load Gradeability:

  5%

• Unload Gradeability:

  10%

CE Marked

Slewing jib

Extendable stabilisers
