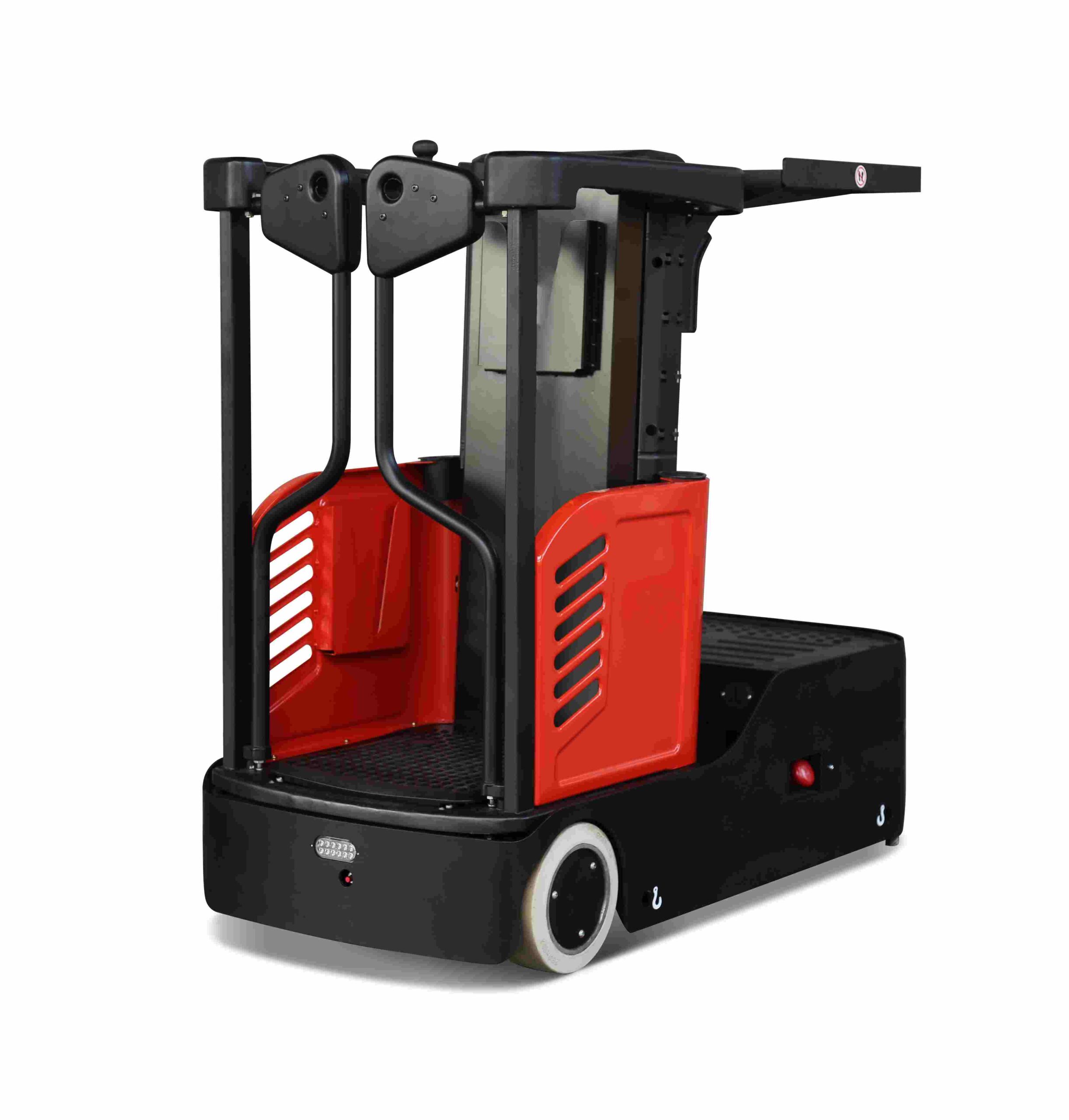

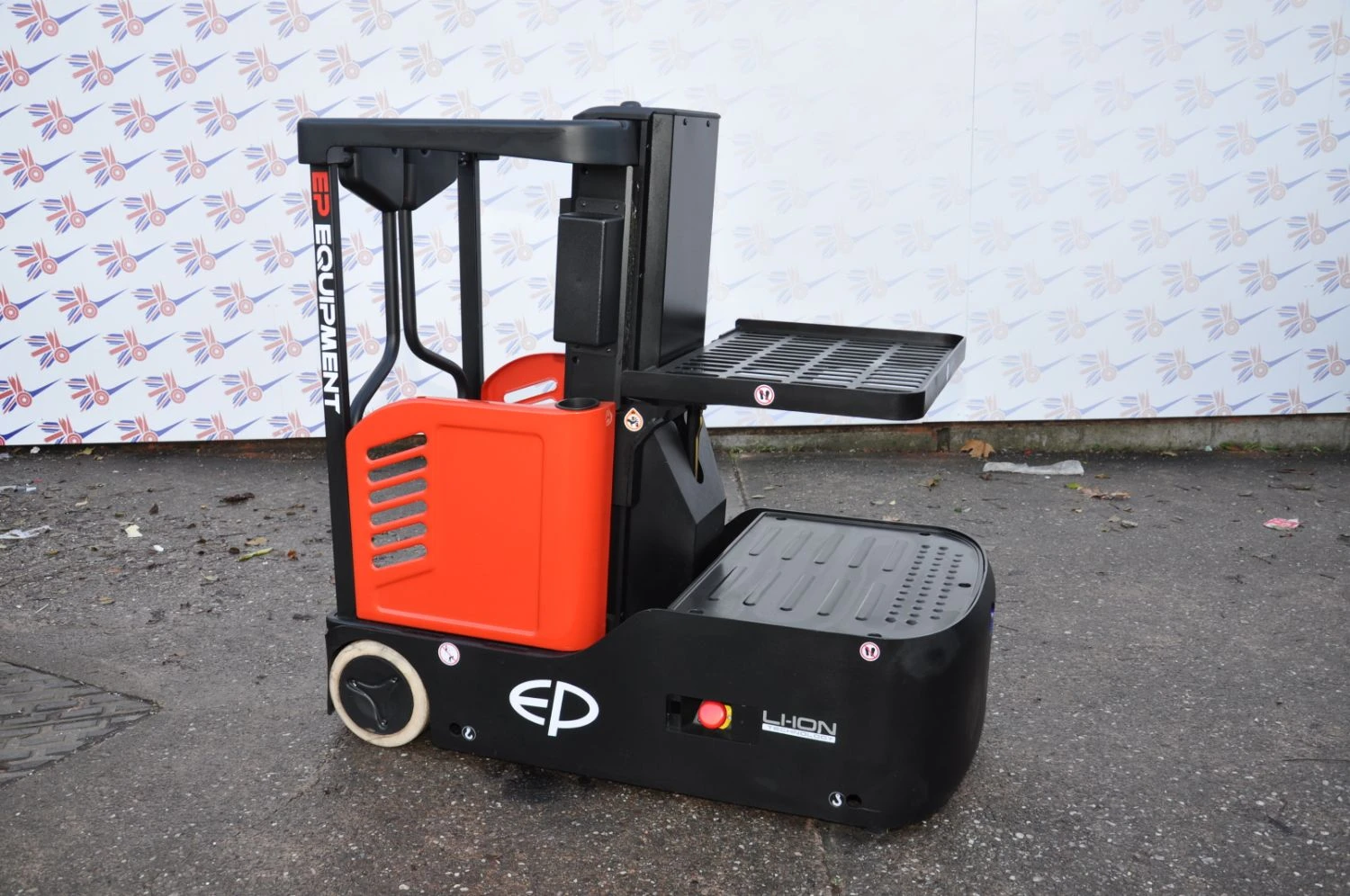

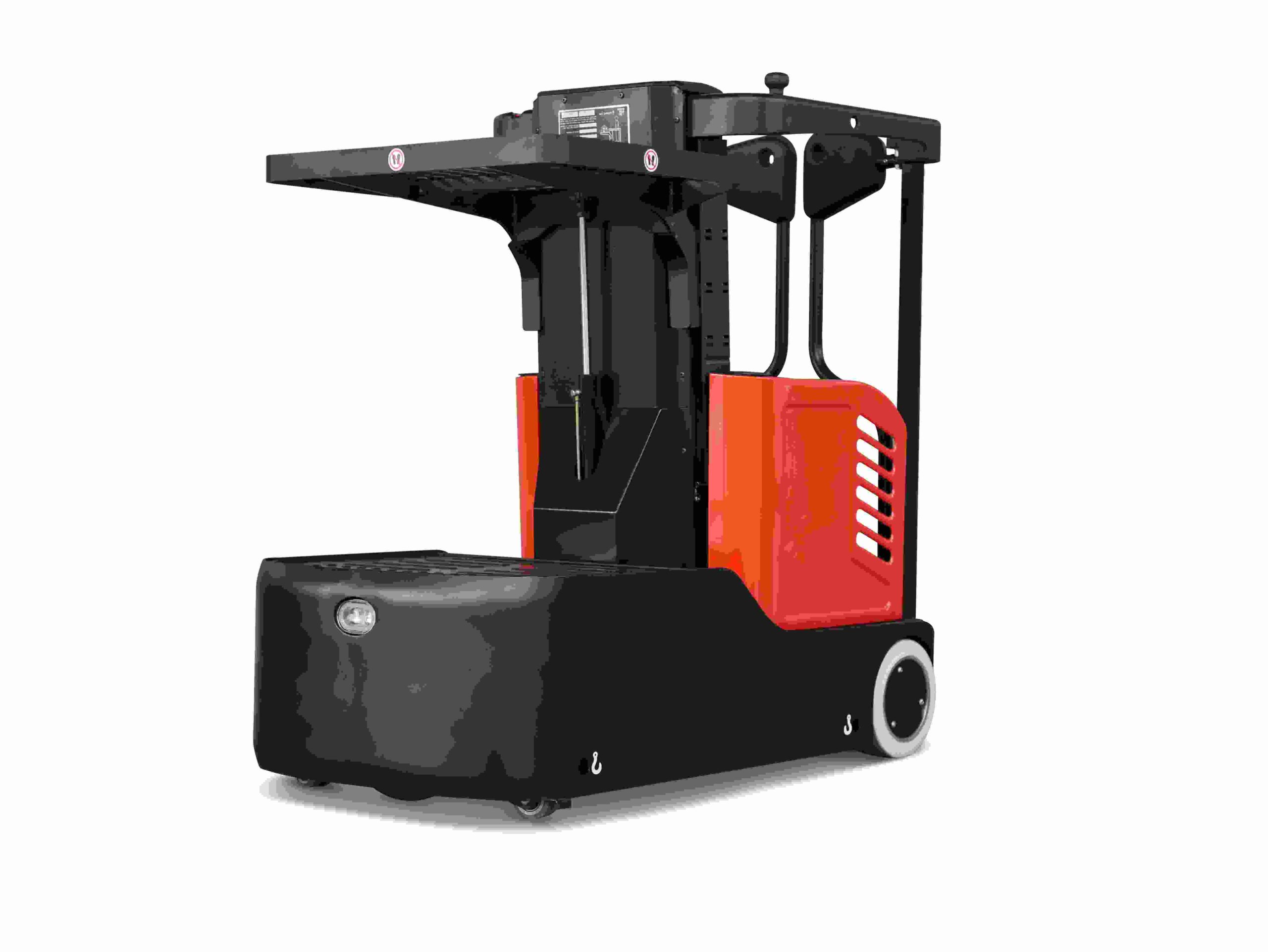

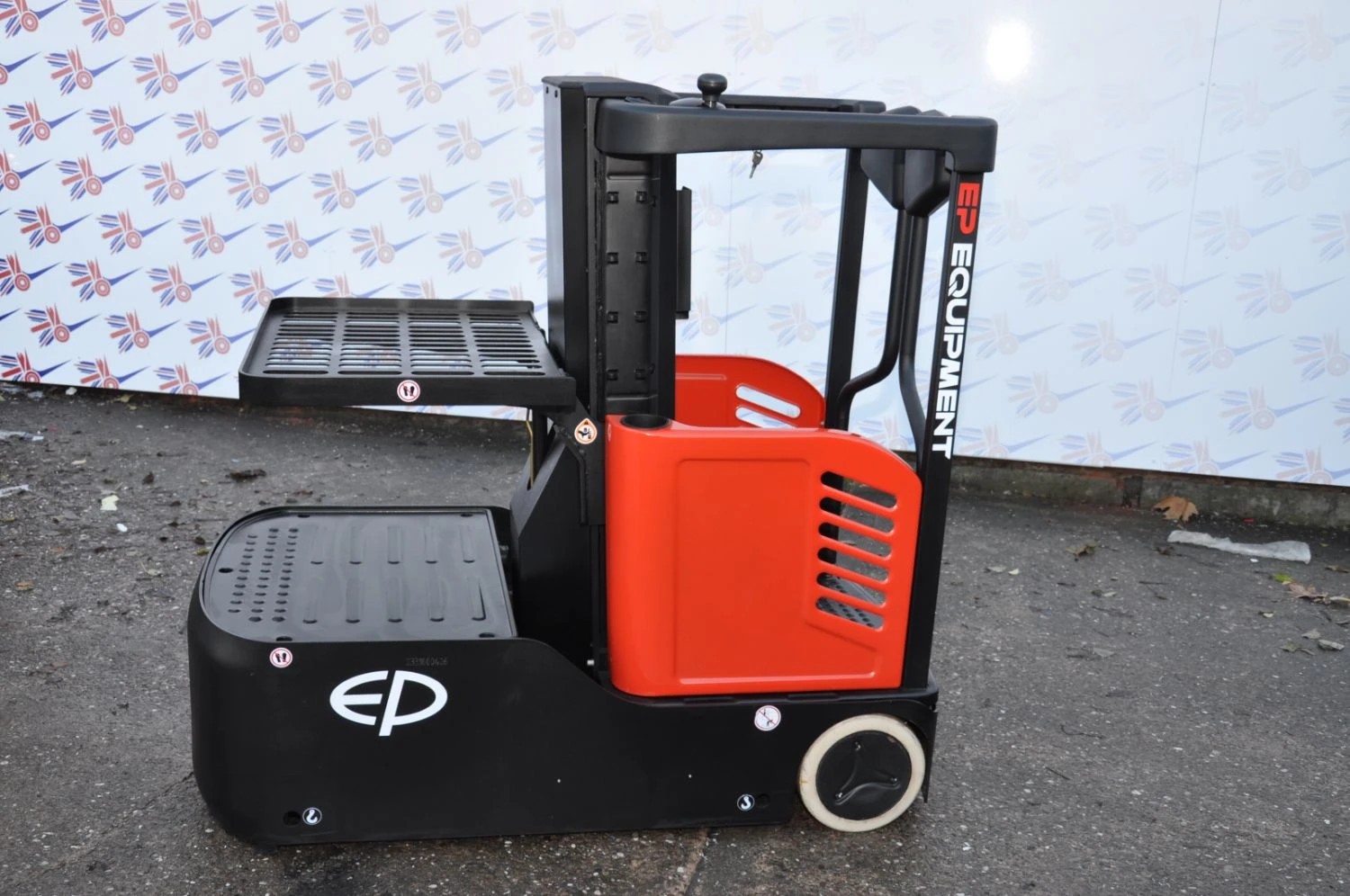

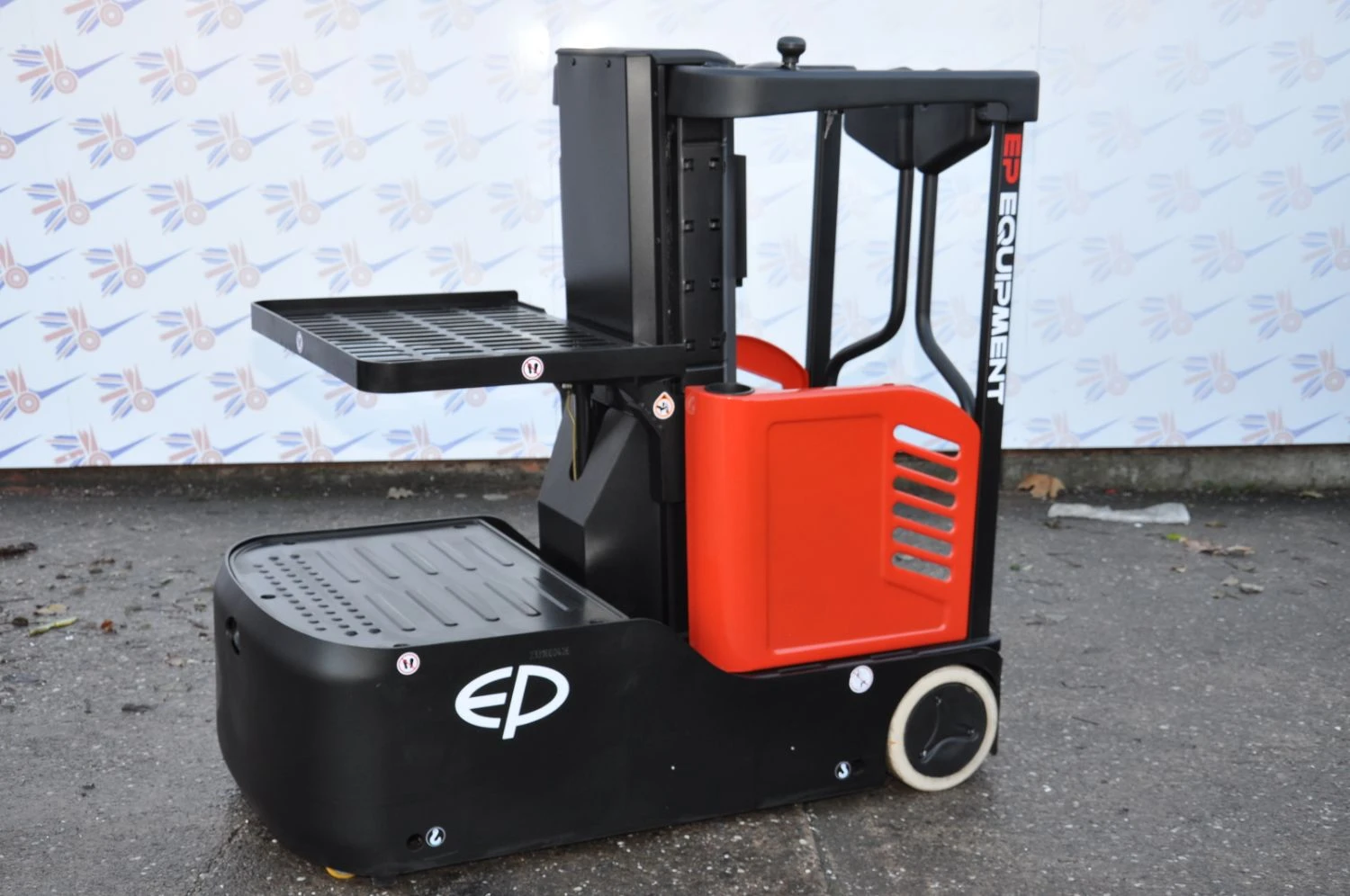

EP JX0 Order Picker with lithium battery. Max pick height 4500mm

Purchase From £12,950 + VATPurchase From £15,540 inc VATFinance From £59.43 +VAT p/w

Claim £3,237.50 back against this machine in capital allowances. Read more here

The EP Equipment JX0 Medium Level Order Picker has been designed, developed and built to give Outstanding Long Service with minimum maintenance required and assist with all manner of Lifting & Handling within industry and commerce. A Sound Long Term Investment! The JX0 vertical order picker from EP Equipment is a unique product. Positioned between low level order picker, ladders and extremely cost intense VNA trucks, the JX0 order picker gives you the ability to pick products at a height of up to 4.3 m while using a compact, and very stable truck at a reasonable price level. Designed for the E-Commerce and small goods picking environment this product will help you improve productivity and increase safety in the warehouse.

Discuss this machine with the team
Call us on 01214 683 265 to discuss your enquiry

Want delivery in 2 days? Order within Loading...

Description

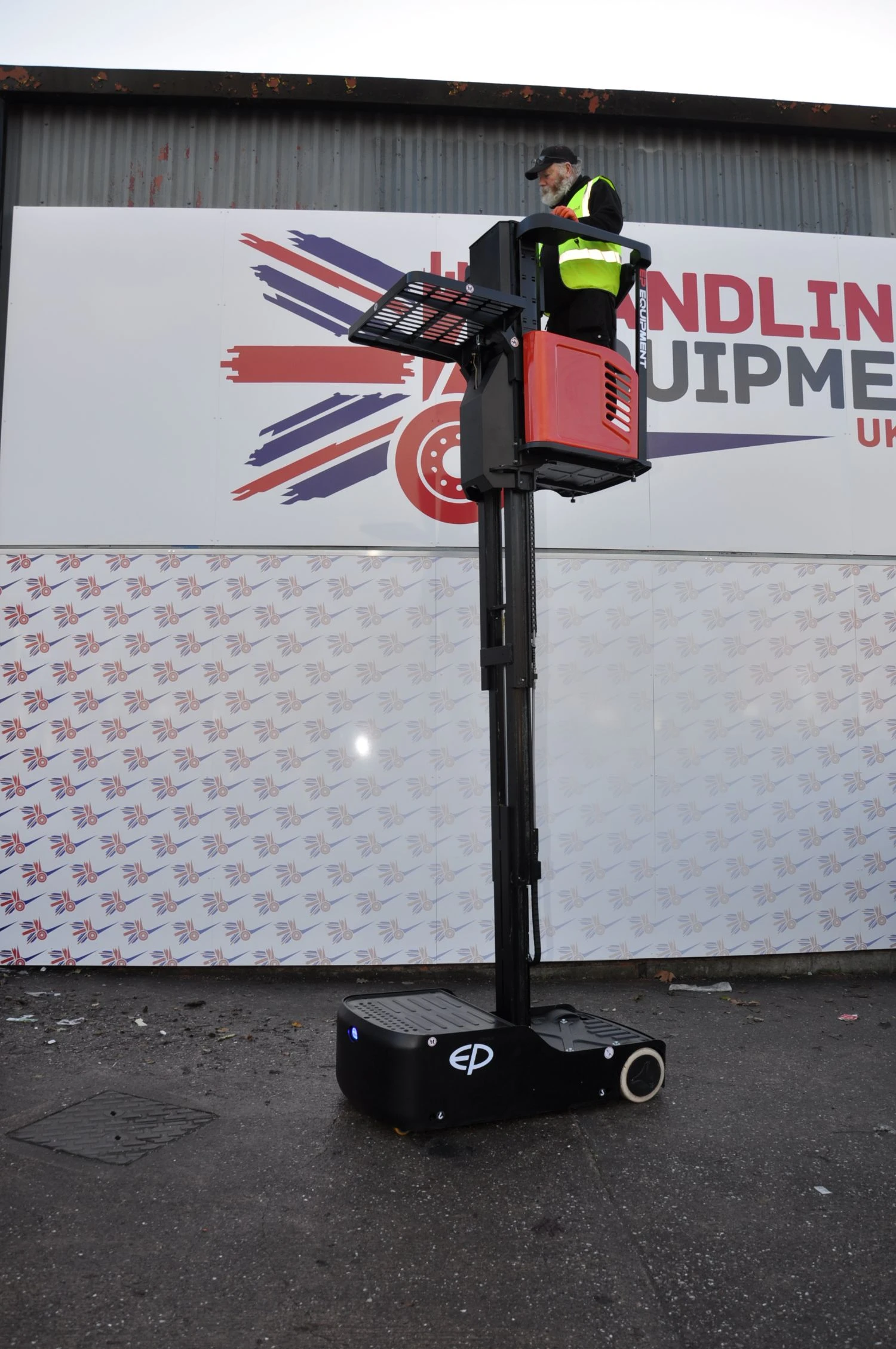

The EP Equipment JX0 order picker is a distinctive solution, bridging the gap between low-level order pickers, ladders, and costly VNA trucks. It enables product retrieval at heights up to 4.3 meters, utilizing a compact and highly stable truck at a reasonable price point. Tailored for e-commerce and small-scale goods selection environments, this product enhances productivity and safety in both the warehouse and shop floor aisles. The JX0 vertical order picker enhances warehouse productivity and minimises injury hazards. It offers a sturdy mast, a spacious working platform, and the necessary safety measures for efficient operations. The total lifting capacity is 336kg. The JX0 order picker can transport up to 336kg in total (90kg on the front tray, 136kg for the operator, and 110kg on the rear tray). The JX0 vertical order picker optimises warehouse productivity while mitigating injury risks. Its robust build, ample working platform, and operator-friendly features ensure safe and efficient operations. The JX0 can elevate operators up to 3060mm, manoeuvre in tight spaces with a radius as small as 1260mm, and perform tasks while elevated and diagonally oriented to switch between assignments. Travel capabilities are provided by a high-efficiency AC drive motor, programmable via the onboard LCD dashboard. Power is supplied by a 135A lithium battery pack, supporting convenient opportunity charging from an onboard 30A 13A 3 pin UK G socket.
Key Features

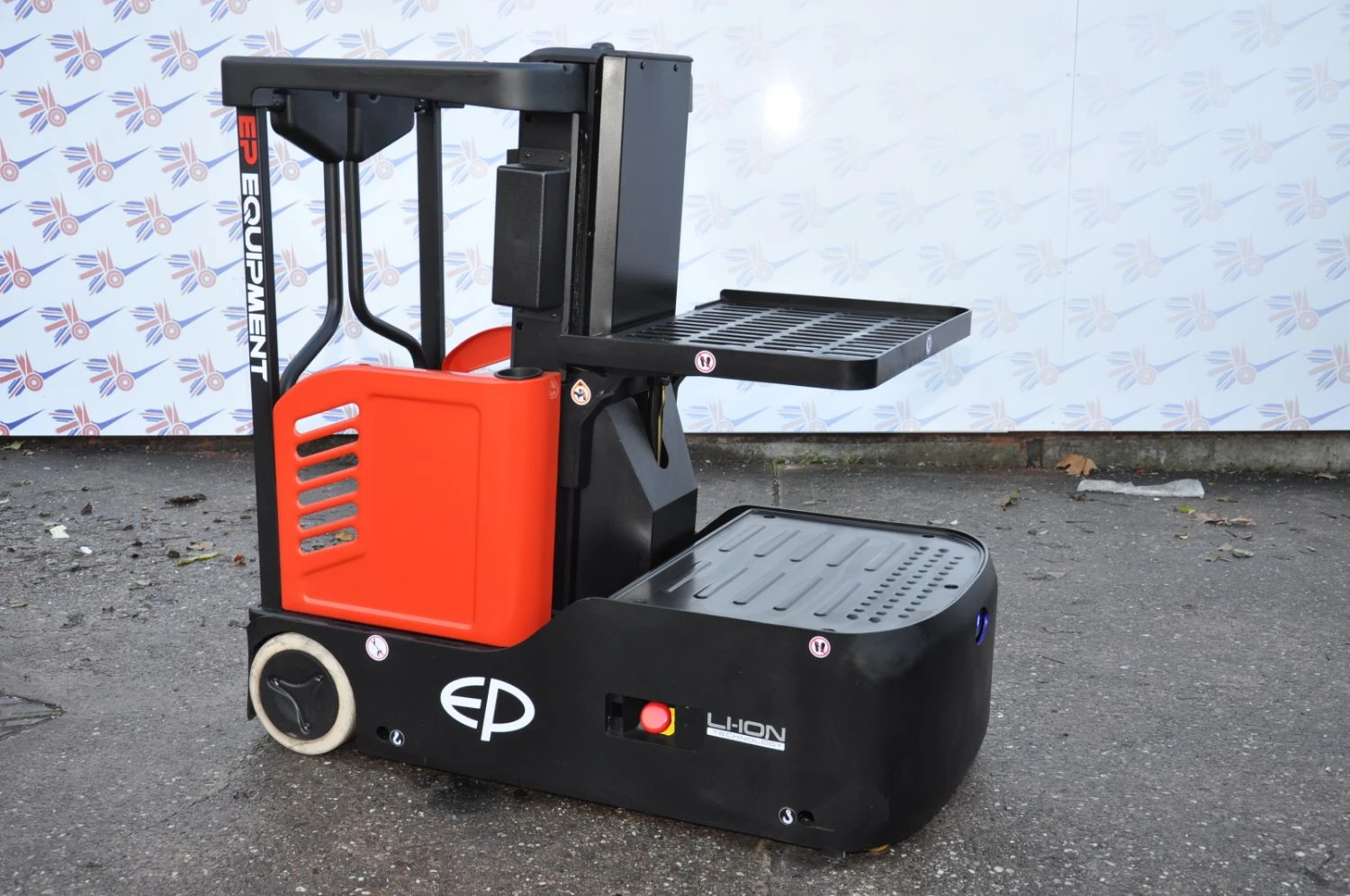

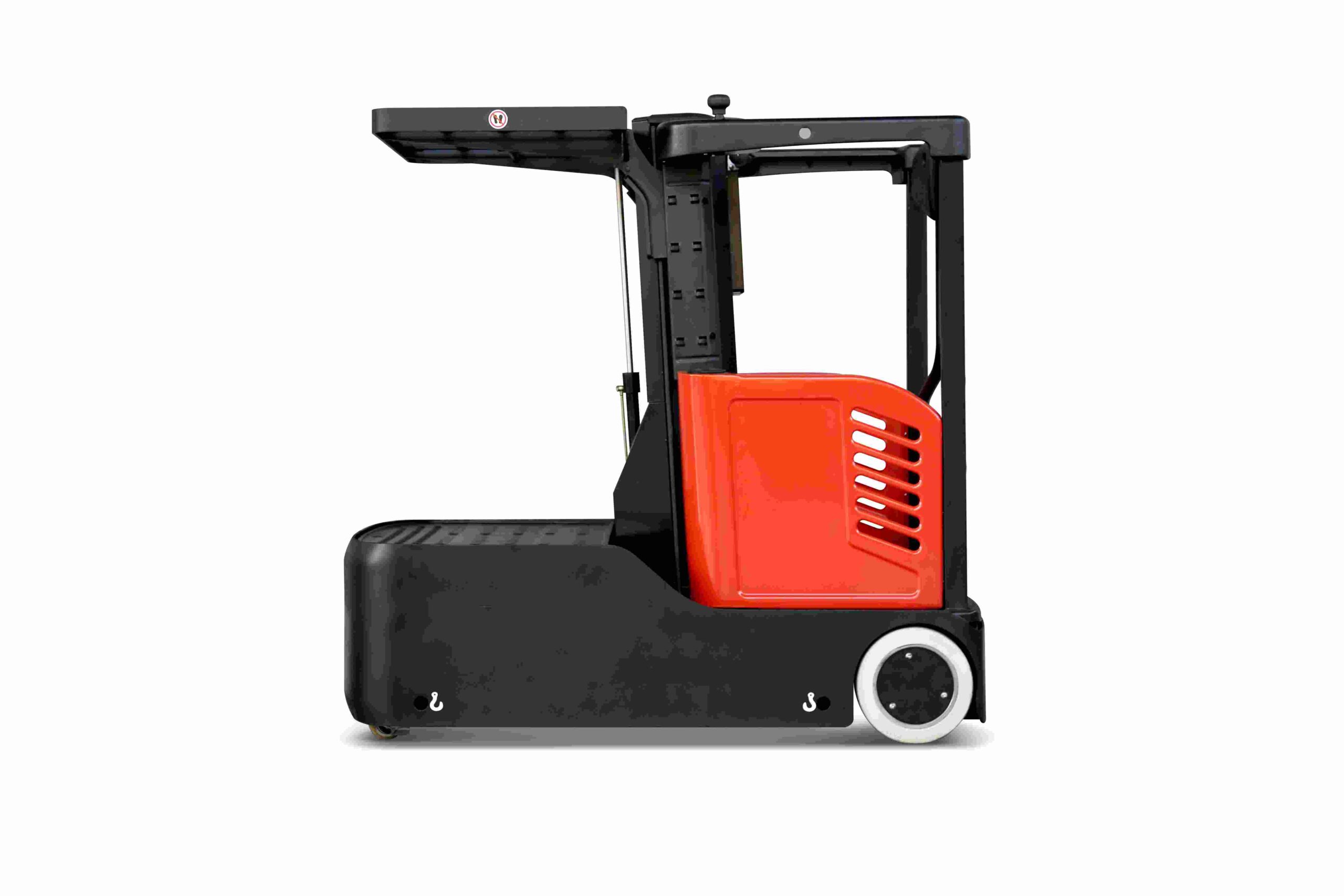

EP Equipment JX0 lithium powered order picker.

A robust, ergonomic, efficient, reliable, compact and manoeuvrable 336kg Medium Level Order Picker, symbiotic alternative to “work assist” vehicles and larger pickers

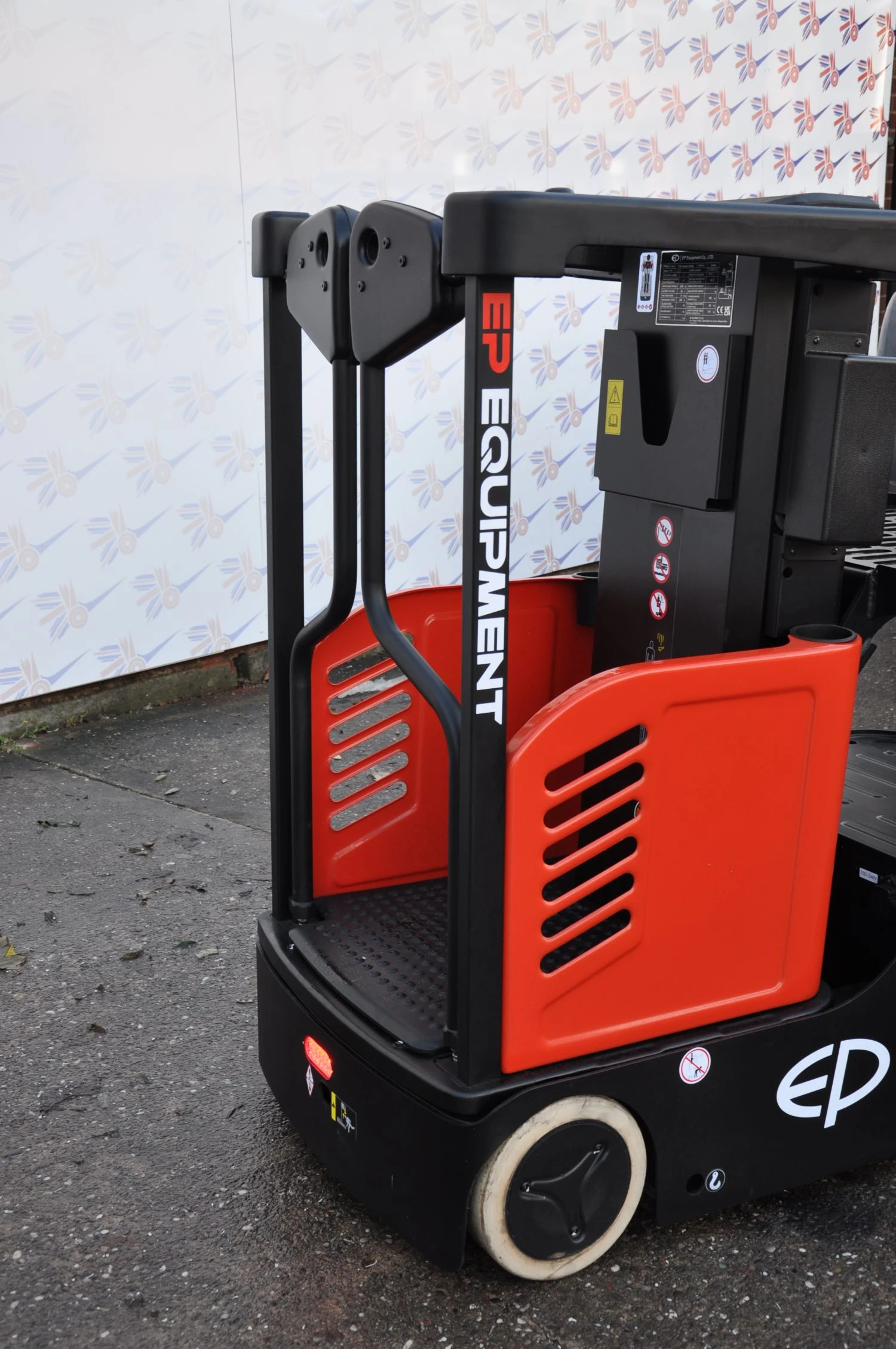

Spacious Operator Compartment
Electronic Steering
Proportional Speed Control
Heavy Duty Lifting Assembly
auto lock safety gate
Ease of Access for Repairs and Maintenance
Fully Programmable Parameters
Side Access Battery Compartment
Fully Automatic Battery Charger

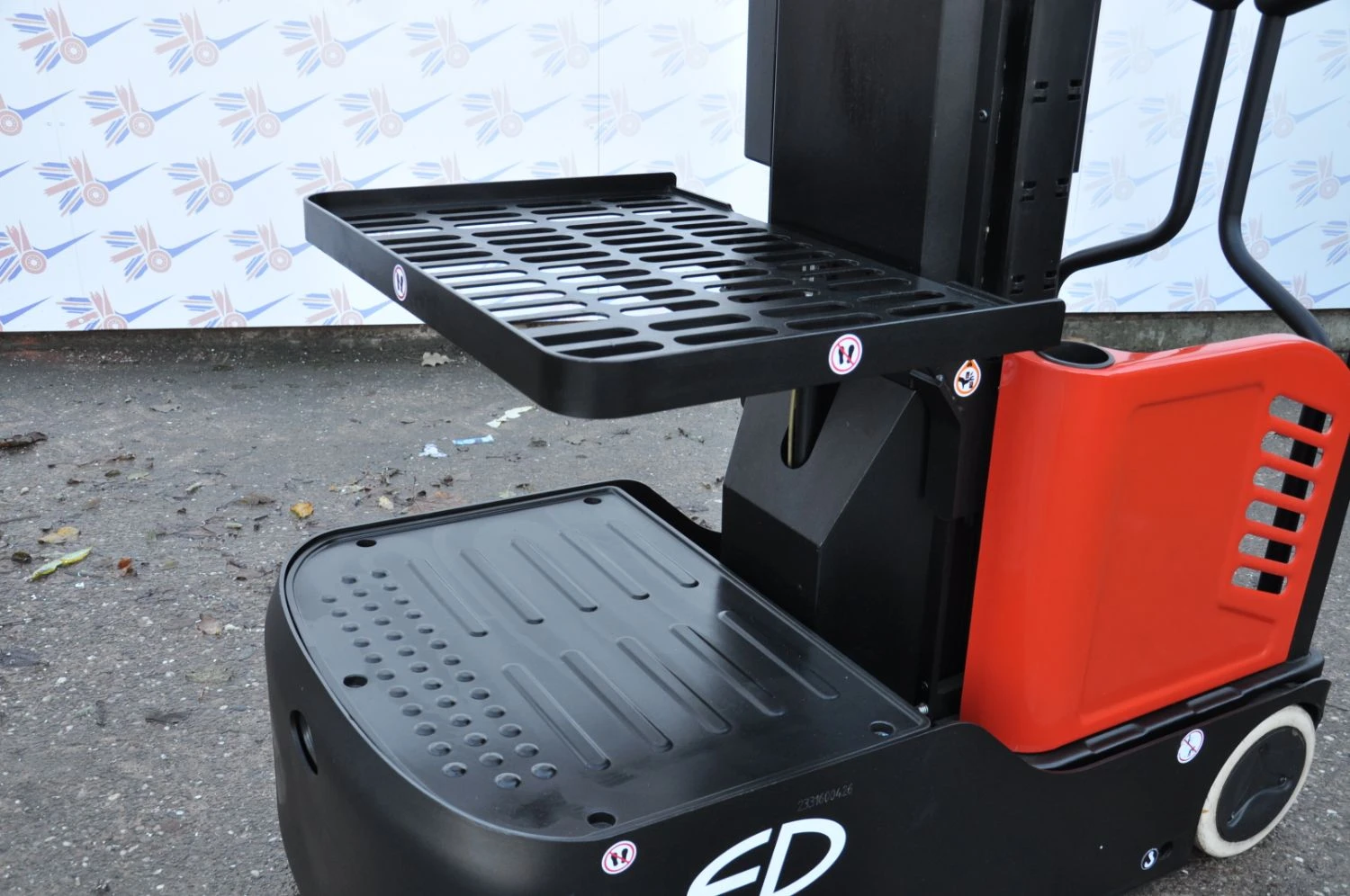

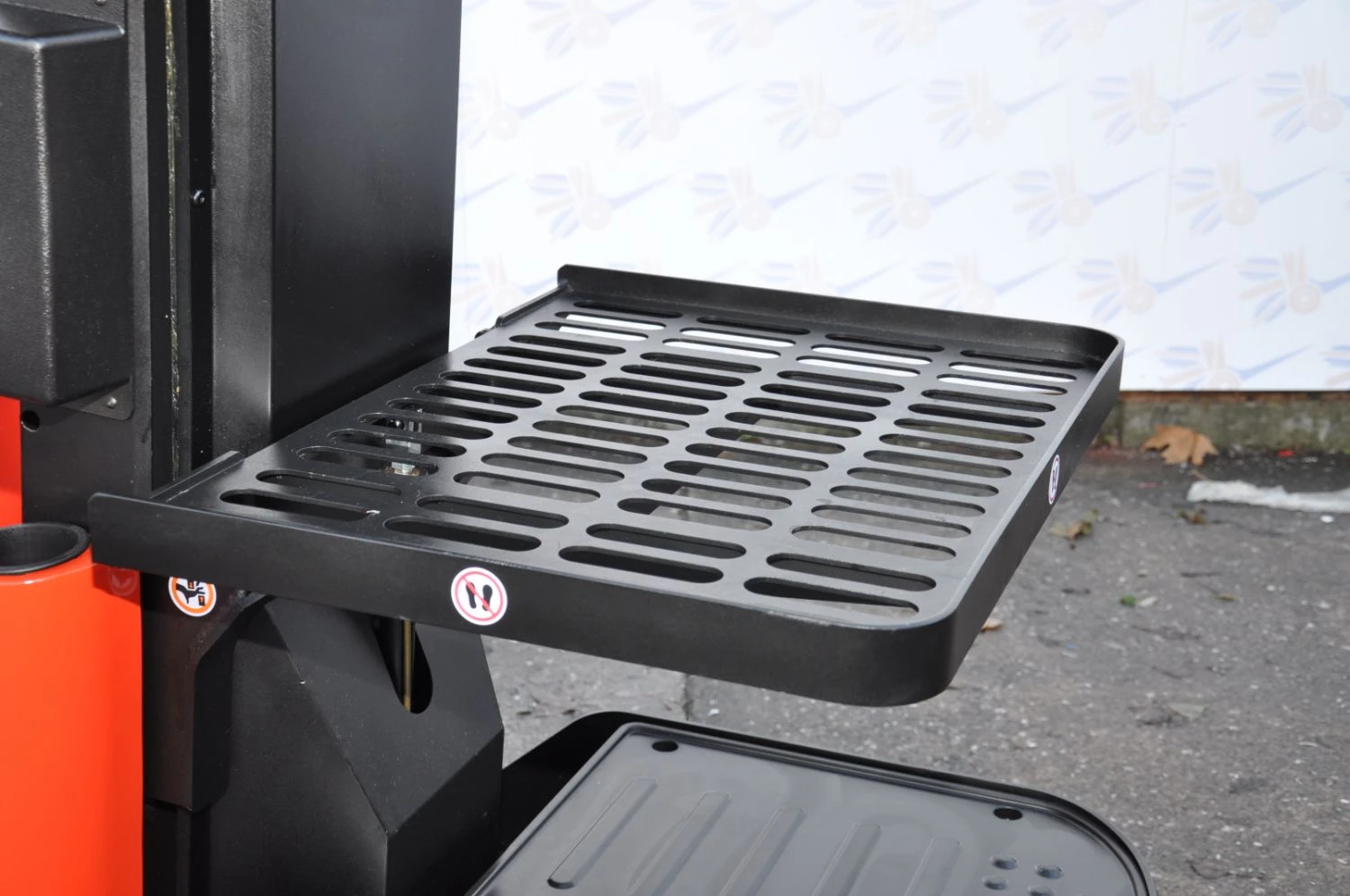

Additional Rear Tray
Conforms to EU Standards
Specifications
- Capacity:

  336kg
- Picking Height:

  4350mm
- Lift Height:

  3060mm
- Maximum Mast Height:

  4880mm
- Lowered Height:

  1365mm
- Overall Length:

  1440mm
- Overall Width:

  750mm
- Front Cargo Platform Width:

  TBA mm
- Initial Height of Front Cargo Platform:

  870mm
- Battery:

  24V lithium ion
- Charger:

  On board
- Truck Weight:

  800kg
Explore The Added Value
- Lithium battery standard from Handling Equipment UK
- 4.5m picking height
- For low to medium volume order picking
- Ideal for retail environments
- Suitable for narrow spaces
- Built-in charger unit for system protection

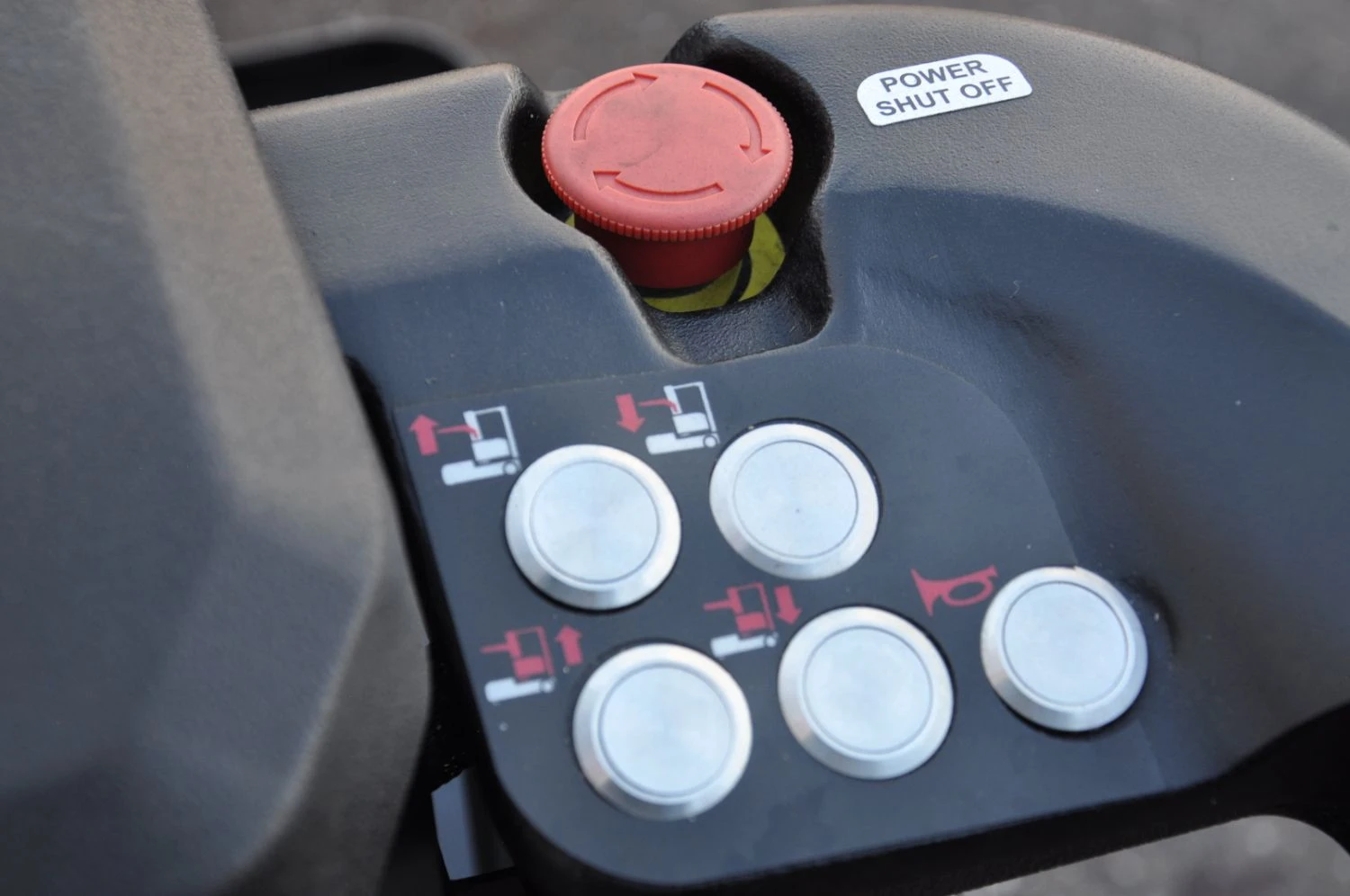

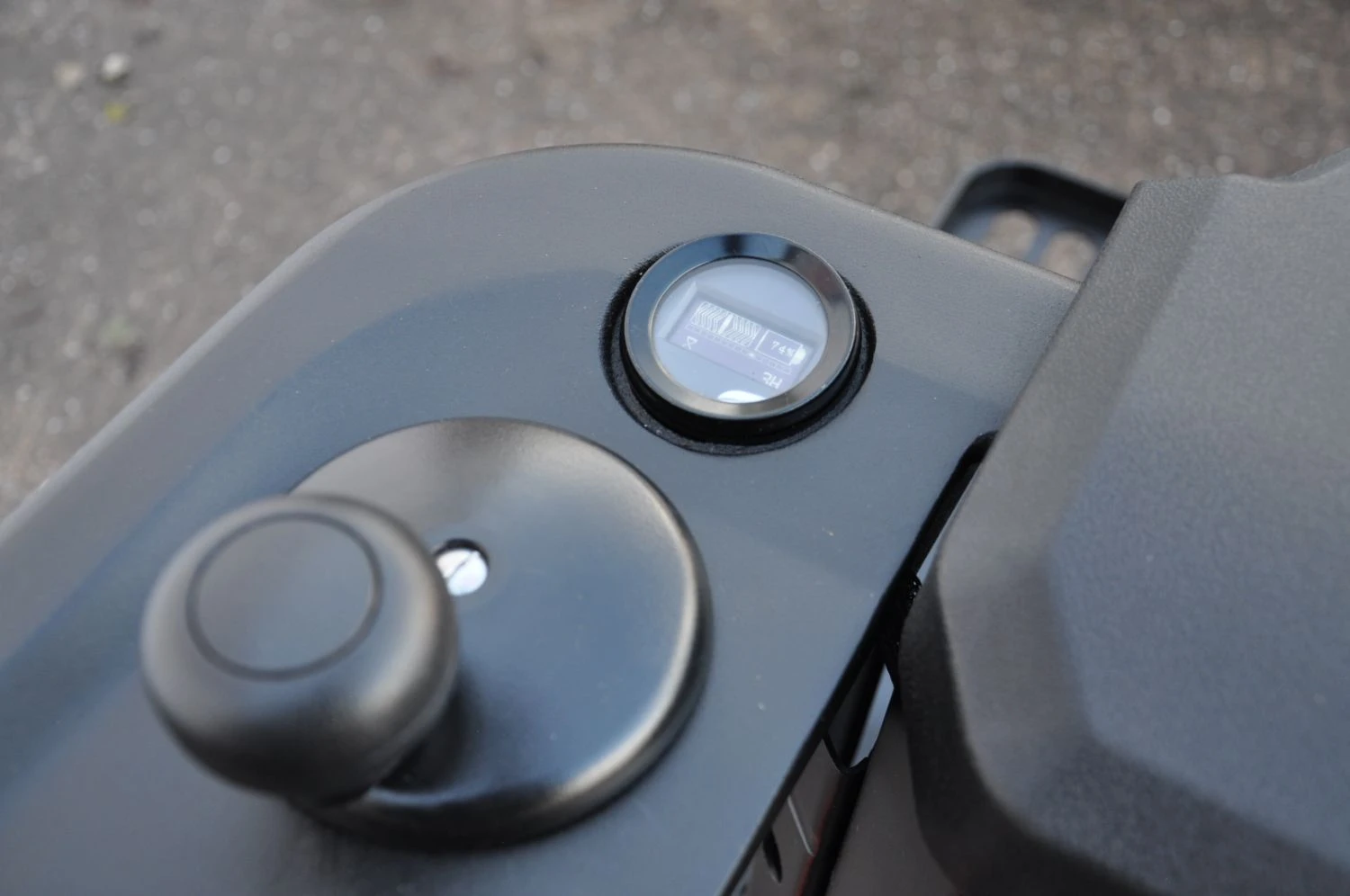

- Finger tip controls

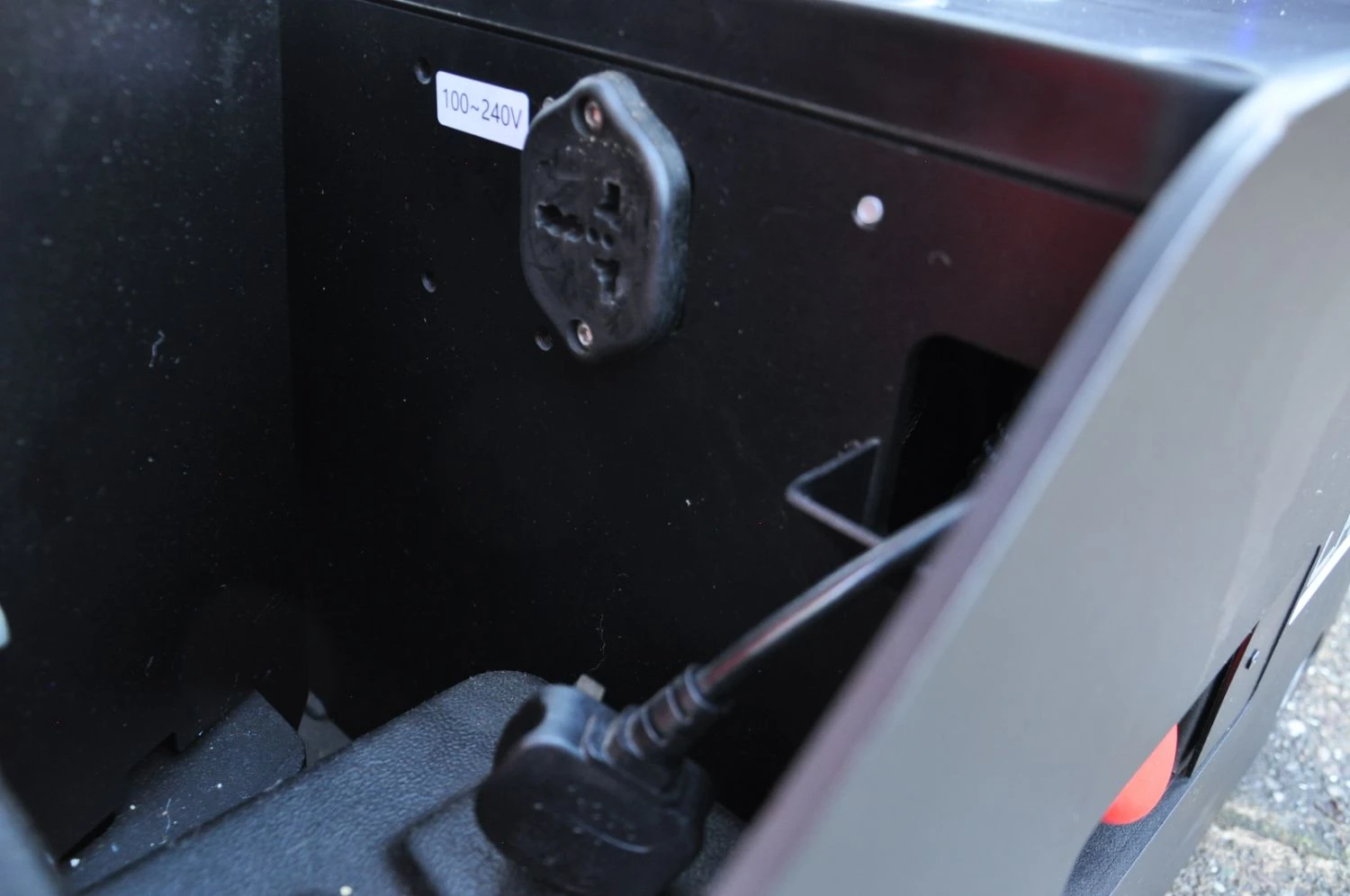

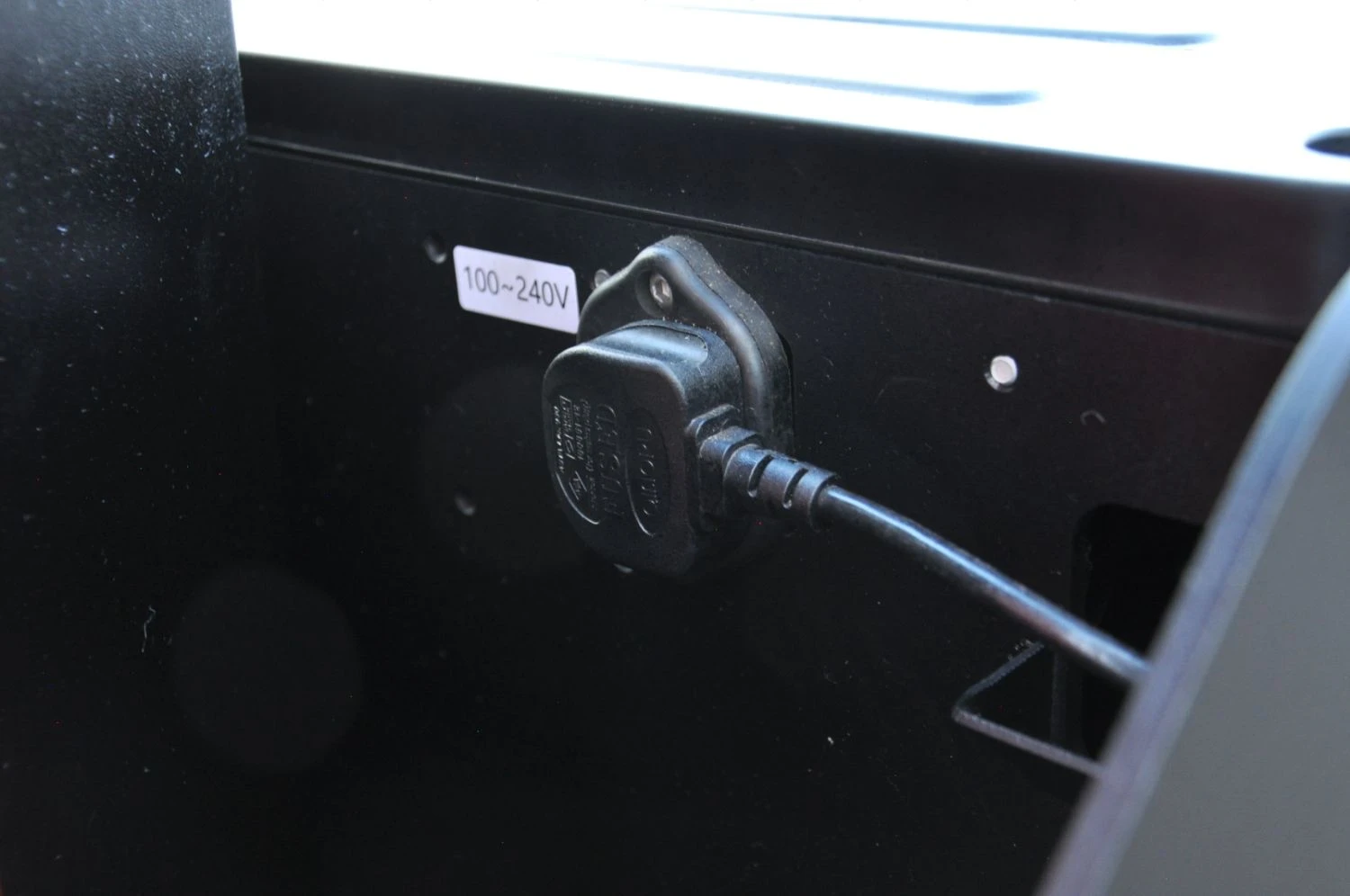

- Charge with UK 13A 3 pin socket
Links & Brochures

JX0_Vertical_Order_PickerView pdf brochure
