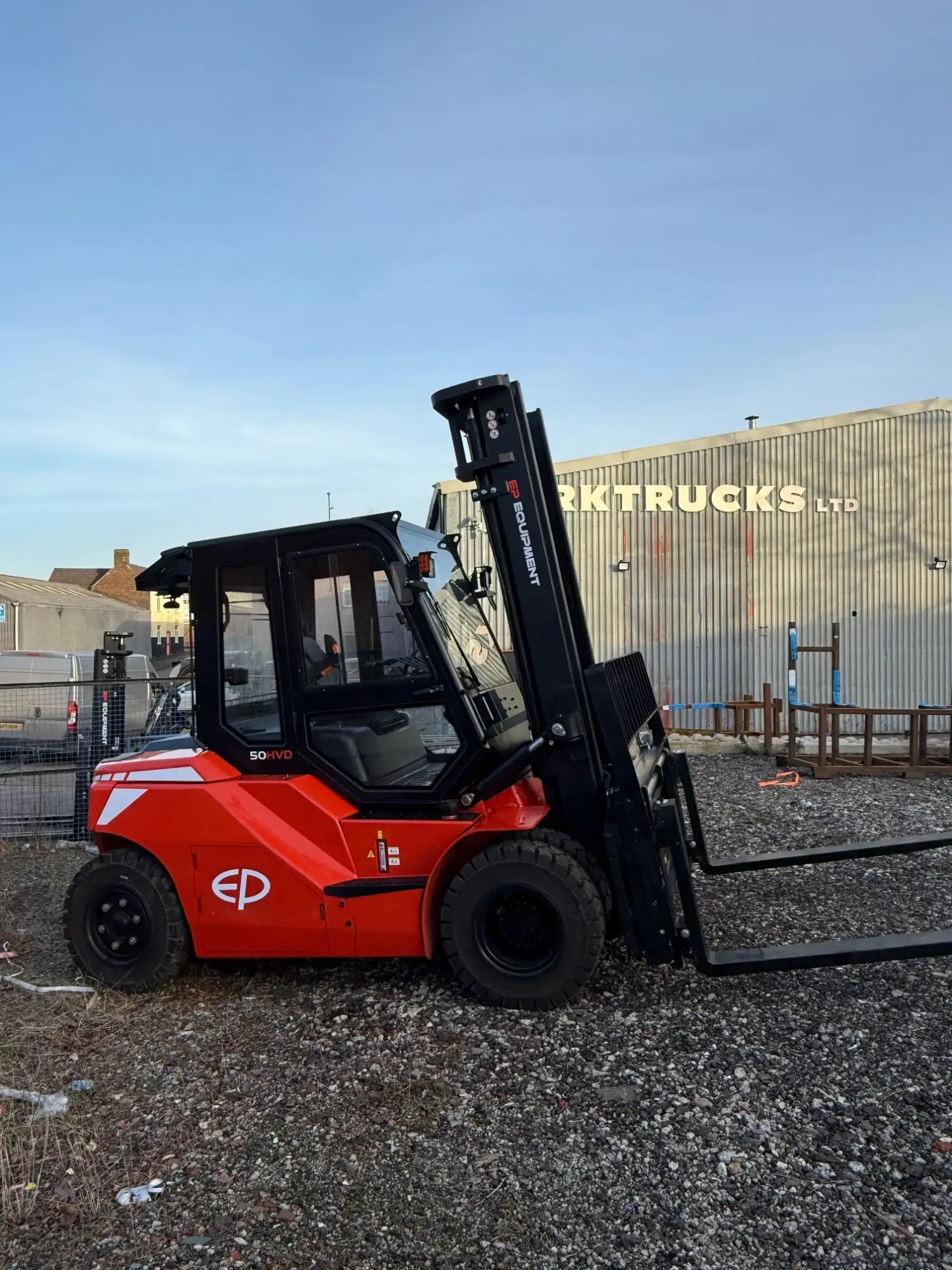

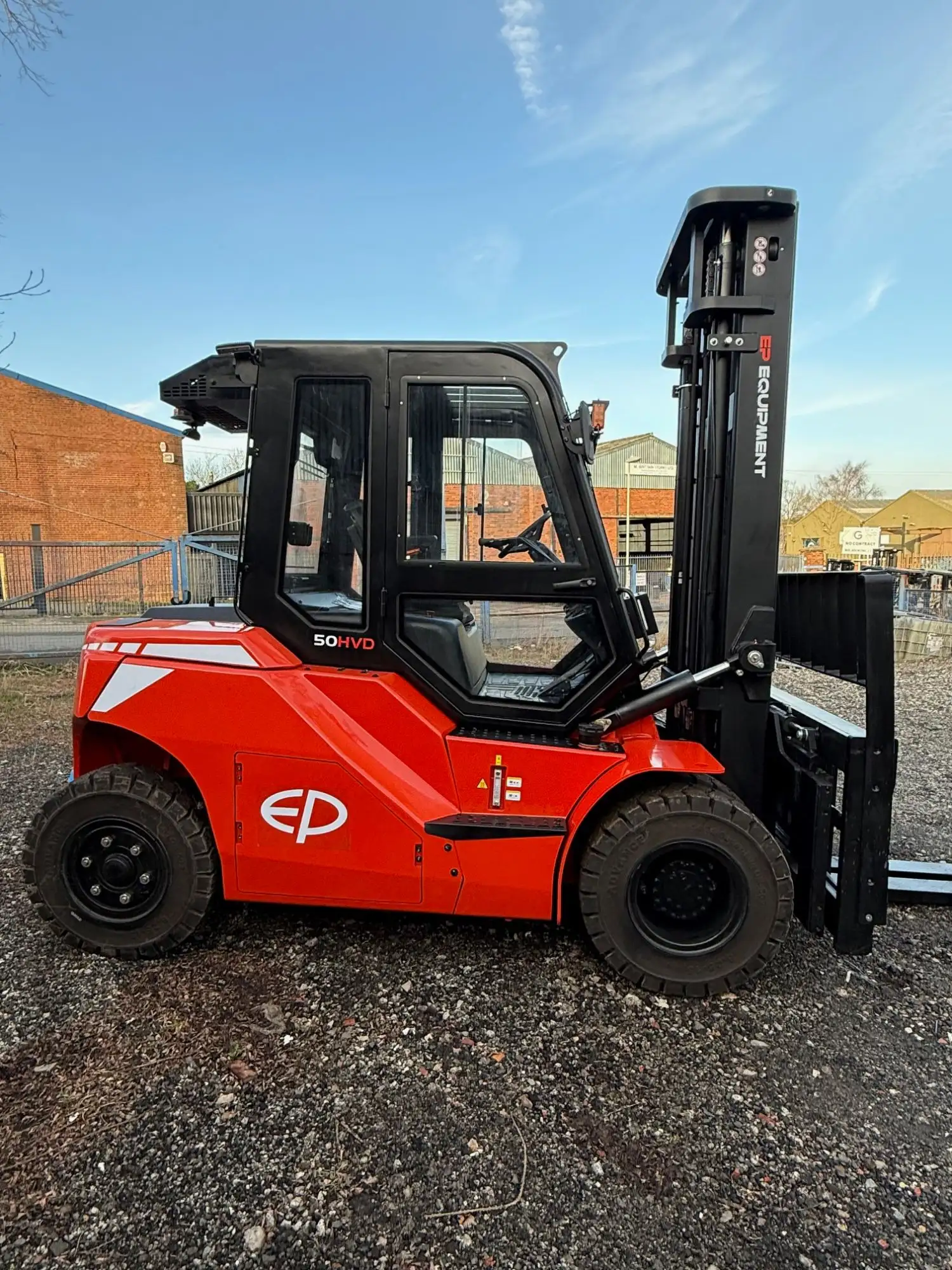

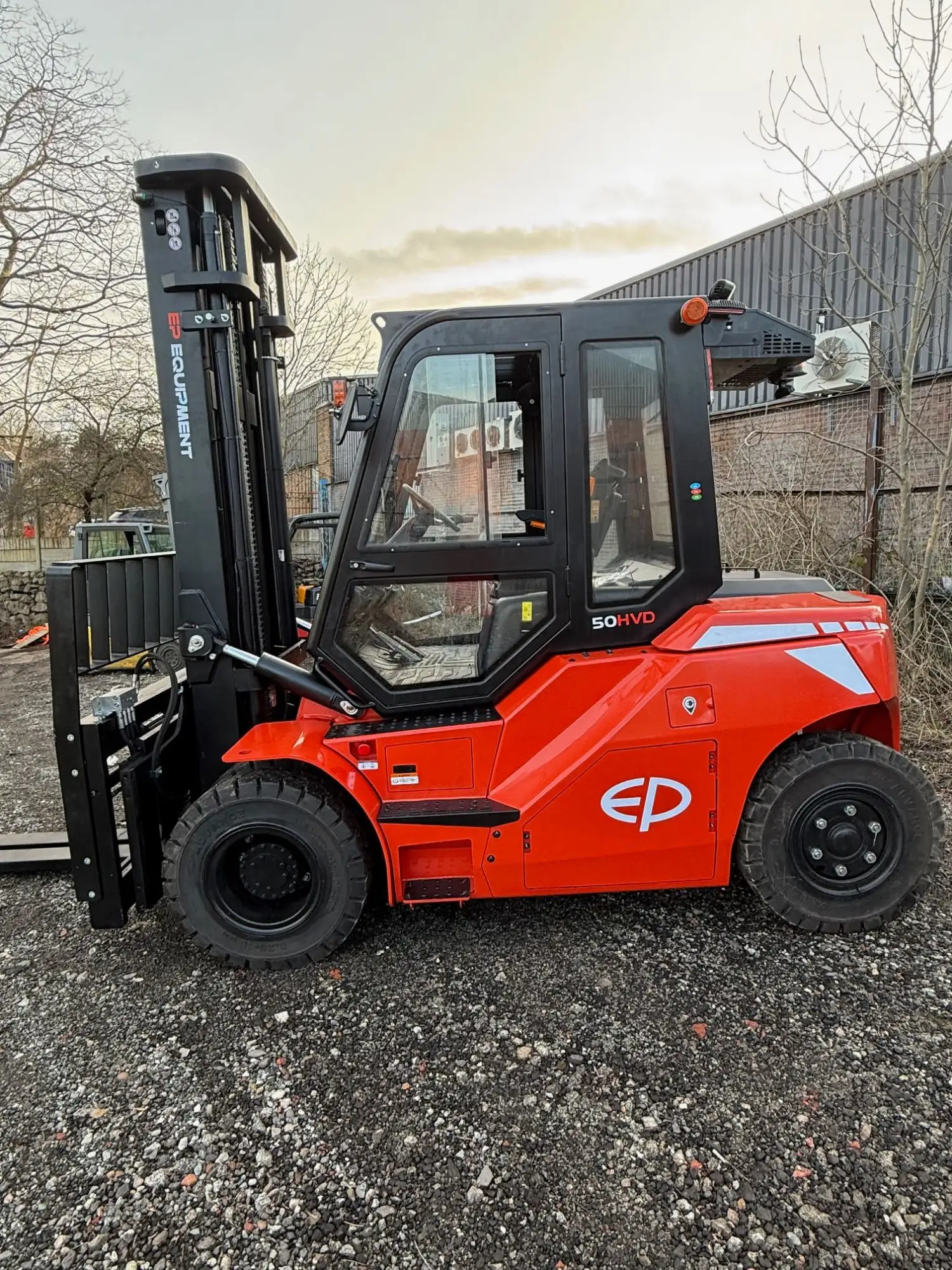

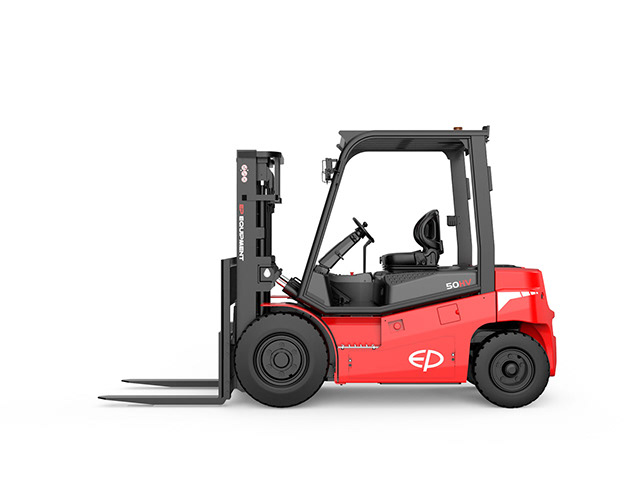

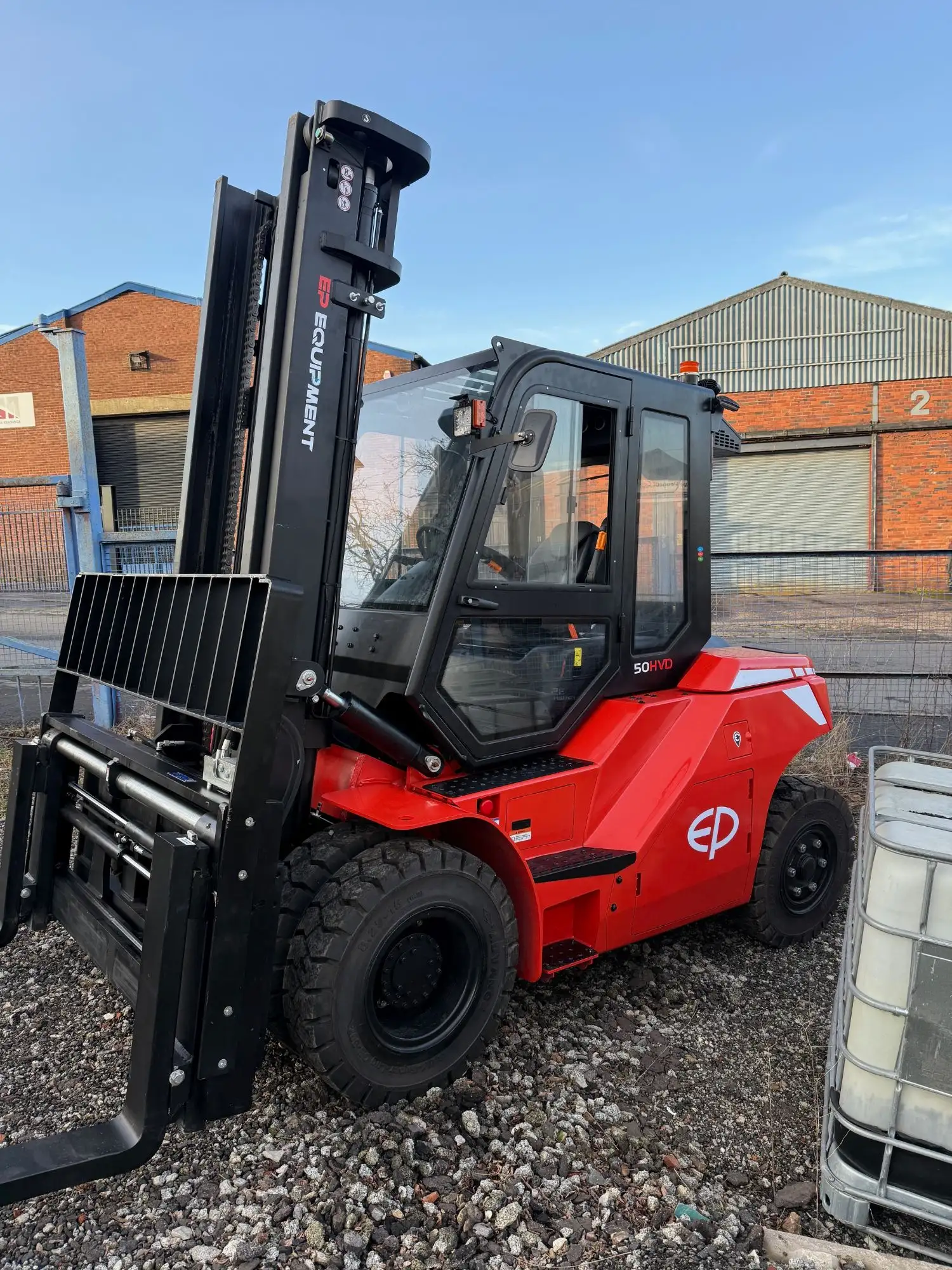

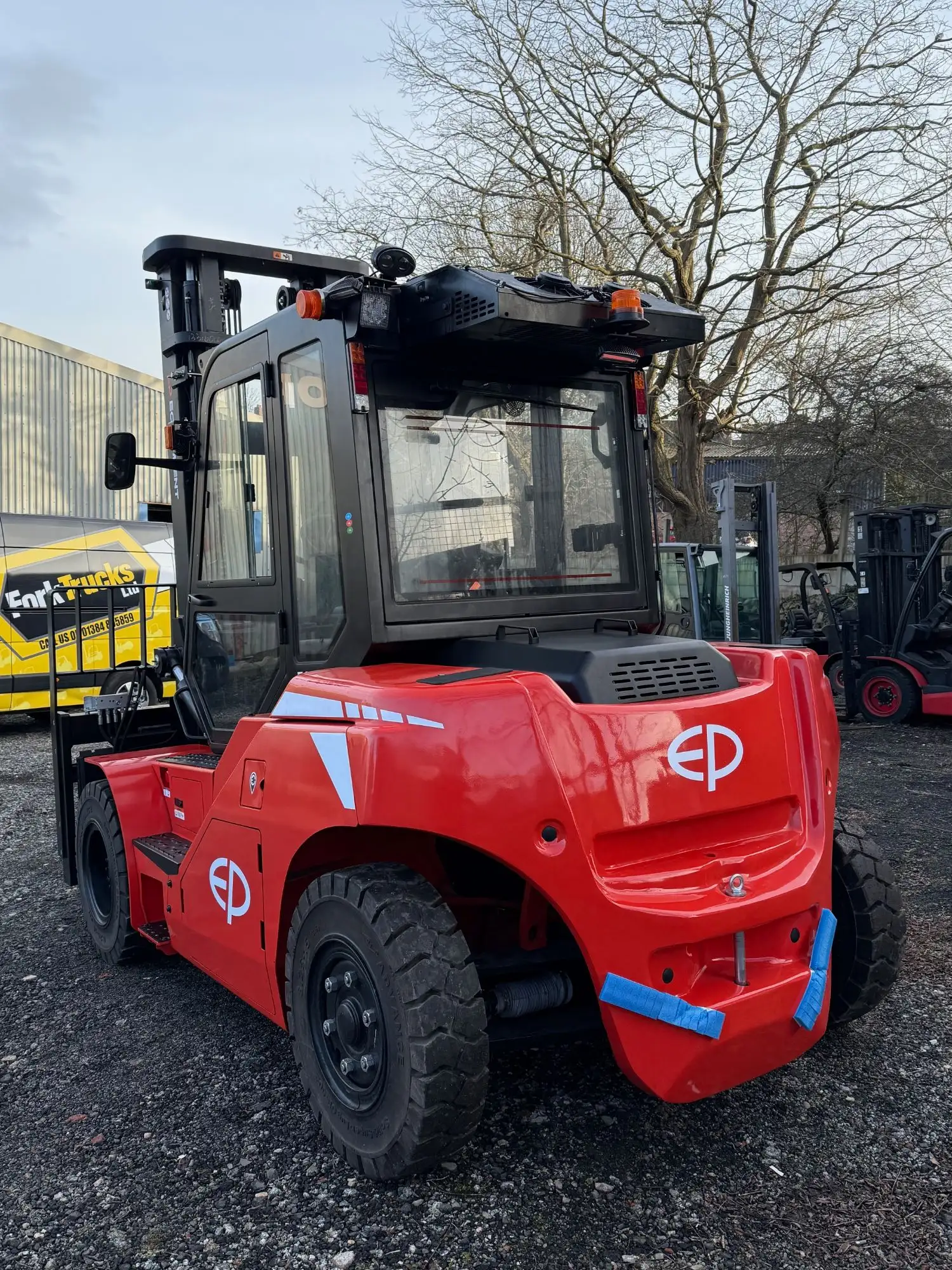

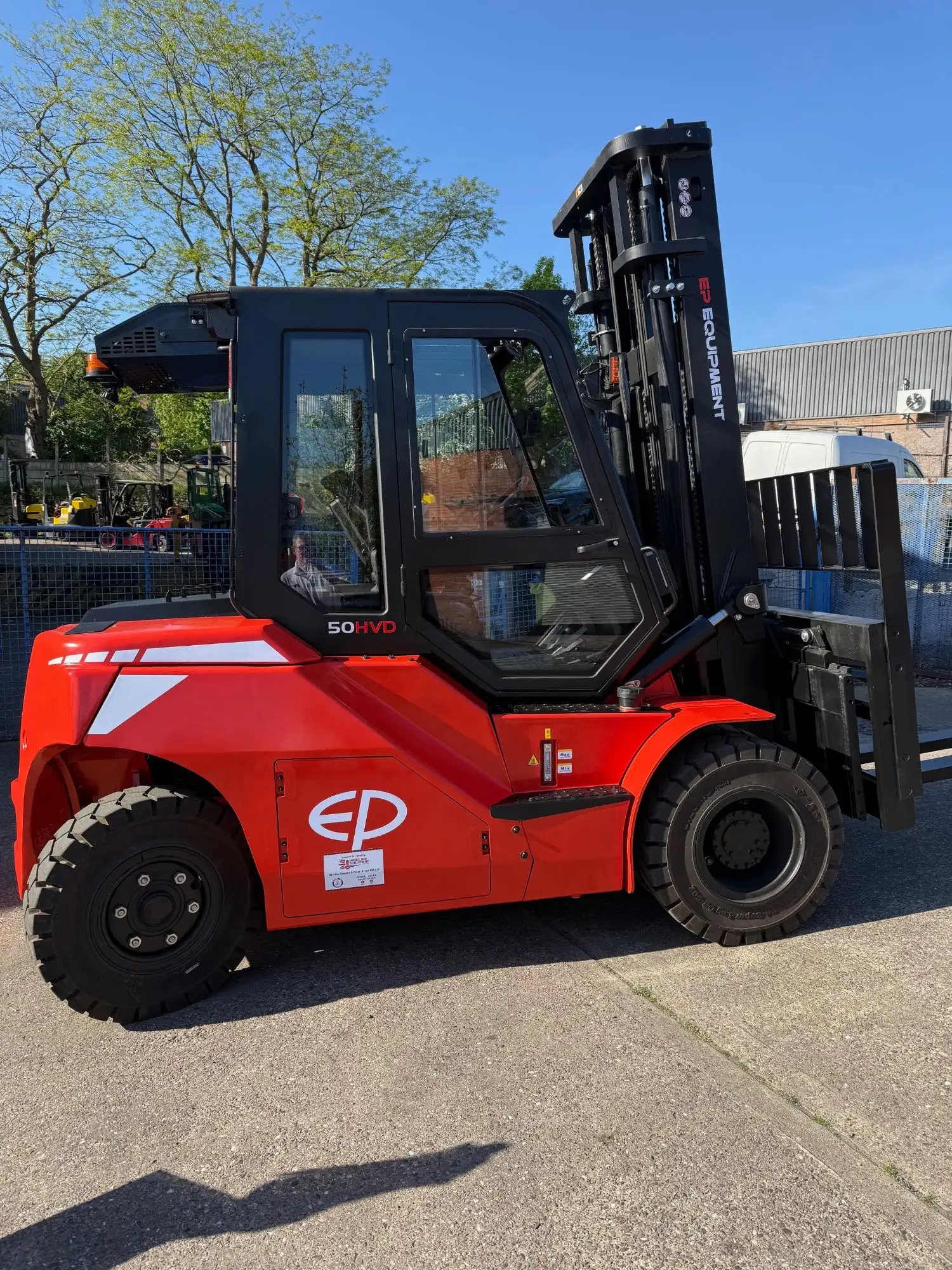

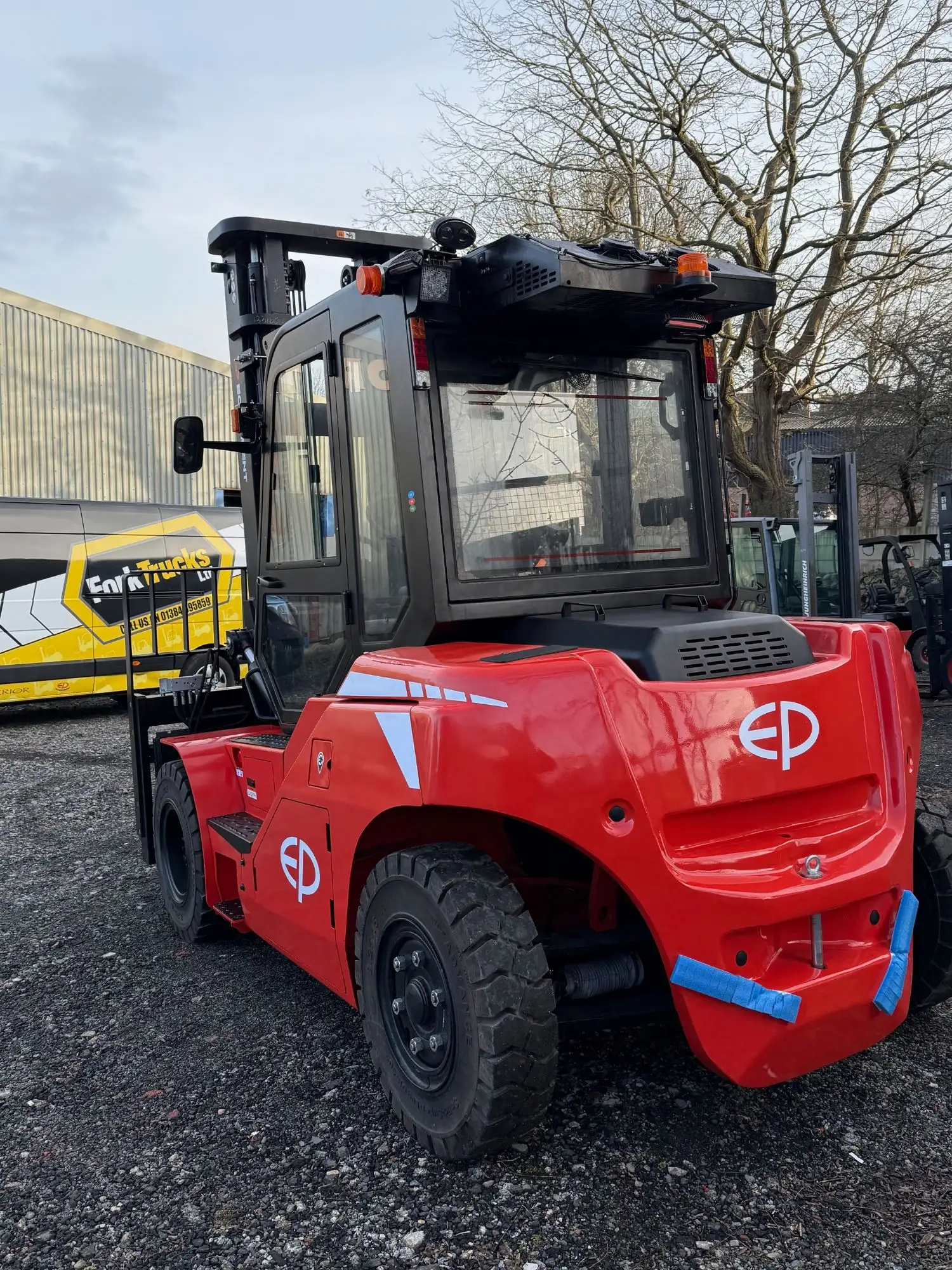

EP Equipment 5000kg High-Voltage Lithium Forklift Truck – EFL503HV

By combining unmatched power with Li-ion innovation, EP Equipment is set to transform heavy-duty handling with its High-Voltage range. The company introduces the EFL503HV — a 5-tonne high-voltage forklift that features advanced permanent magnet synchronous motor (PMSM) technology. This delivers outstanding performance, long runtimes, and safety — all while remaining eco-friendly and free from harmful emissions.

EP Equipment pairs cutting-edge technology with superior performance — the EFL503HV improves output by 1.5 to 2 times over its low-voltage counterpart. Its Li-ion battery, boasting high energy density, stores significantly more electrical energy in a compact cell. High-voltage systems consume less energy yet still deliver extended runtimes — ideal for those long workdays. With an impressive cycle life of up to 4,000 cycles, these batteries provide long-lasting durability without the need for frequent replacements.

The EFL503HV also supports fast charging for quick turnarounds and minimal downtime. These models work seamlessly with vehicle-grade charging stations and support a 1C charging rate — allowing for a full charge in as little as one hour. And, as with any lithium battery, charging costs are significantly lower than fuel expenses — cutting your total cost of ownership substantially.

EP Equipment equips this 5-tonne forklift with multiple protective features to ensure team safety during operation. These include overcharge protection, over-temperature monitoring, short-circuit protection, and more — guaranteeing safe, comfortable use without compromising on power.

Features – EFL503HV 5-tonne forklift

• High speed and gradability
• Water and oil cooling systems
• Vehicle Control Unit (VCU), provides real-time monitoring for safety
• Turn speed control
• Over-speed alarm
• Hydraulic buffer system for smooth lifting and lowering
• Battery Management System (BMS) to help preserve the battery’s lifespan
• Zero emissions
• Suitable for operation in extreme temperatures

• Capacity:

  5000kg at 600mm load centre

• Lift Height:

  3000mm (other lift height options available)

• Height Mast Extended:

  4470/3965mm

• Overall Length:

  4720mm

• Overall Width:

  2028mm

• Fork Dimensions:

  60 x 150 x 1220mm

• Turning Radius:

  3225mm

• Travel Speed, loaded/unloaded:

  25/26 km/h

• Lifting Speed, loaded/unloaded:

  0.51/0.53 m/s

• Lowering Speed, loaded/unloaded:

  0.48/0.42 m/s

• Battery:

  309V/228Ah

This 5-tonne forklift, as well as outer trucks in our range, is covered by our industry-leading 753 warranty. Click here to find out more.

Full cab with heater

Aircon

Side shift

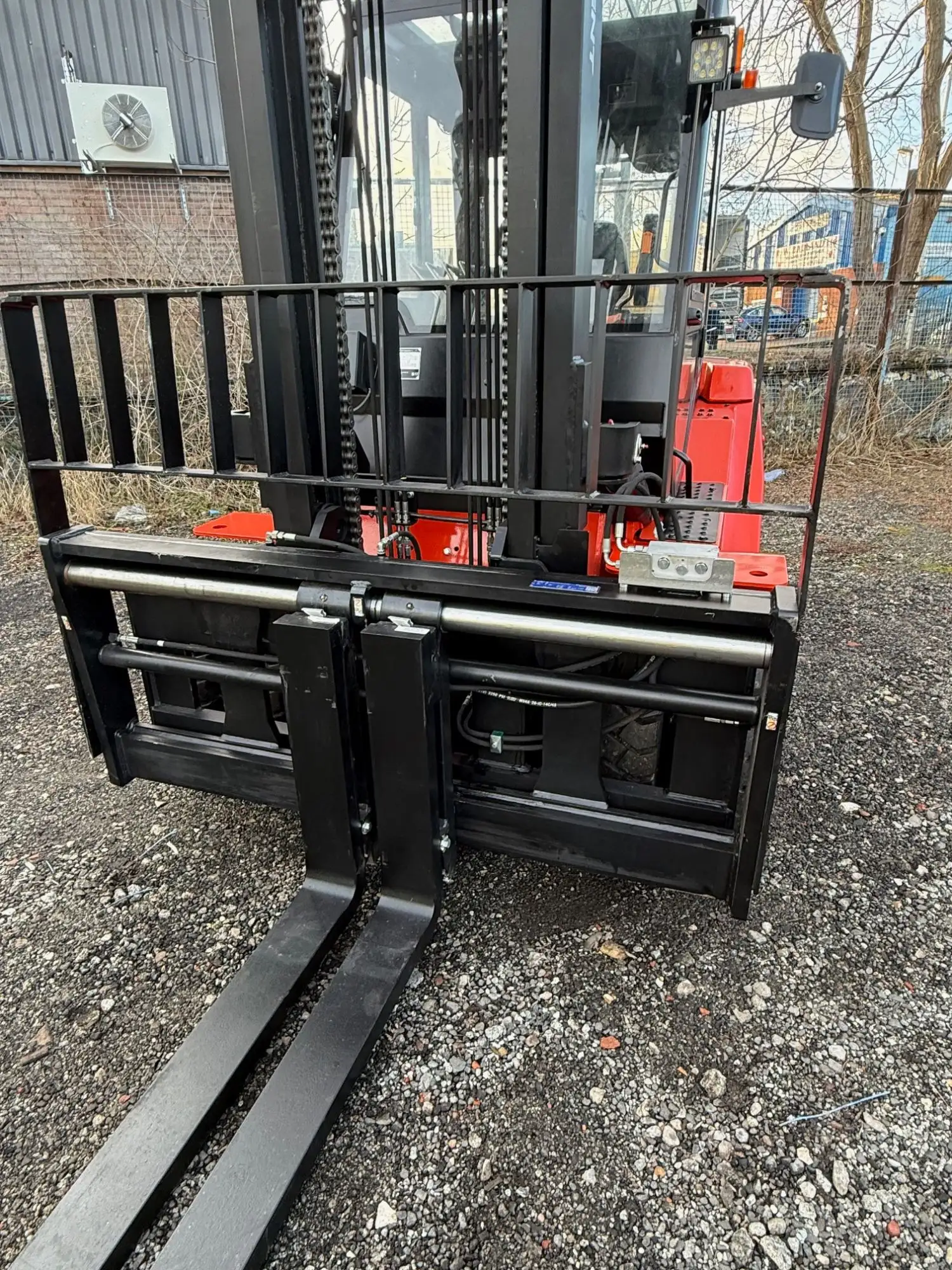

Fork positioner

Full perimeter lighting

1820mm forks
