EcoWarrior Semi Electric Drum Tippler 300Kg – WRPOTR-03

The EcoWarrior WRPOTR-03 Semi Electric Drum Tippler is a safe and cost-effective solution for lifting, rotating and emptying drums into mixing vessels, tanks, and other containers. Featuring semi-electric hydraulic lifting and powered 360-degree rotation with anti-roll control, it allows smooth, precise discharge of contents while reducing manual handling risks. The drum is securely supported at the top and bottom rims and held in place by a three-position locking cradle system. Designed for stability and ease of use, the WRPOTR-03 provides an efficient and ergonomic method for high level drum tipping in industrial environments.

Rotating Gear set of 360 Degrees with anti runaway gear

Lift by means of semi electric hydraulic pump unit

Drum tippled by electro mechanical gearbox

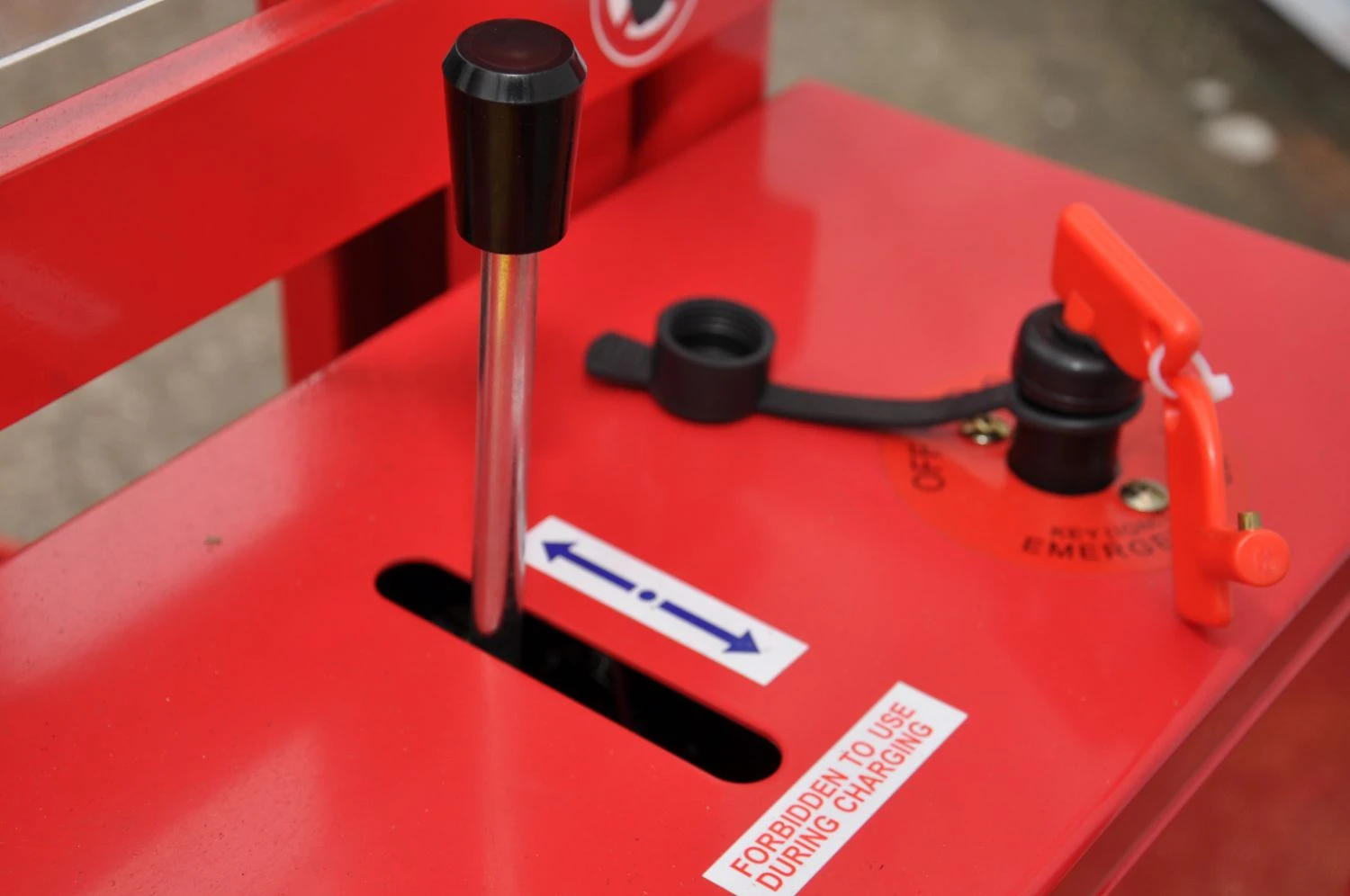

Lift by lever

Tilt by corded remote control

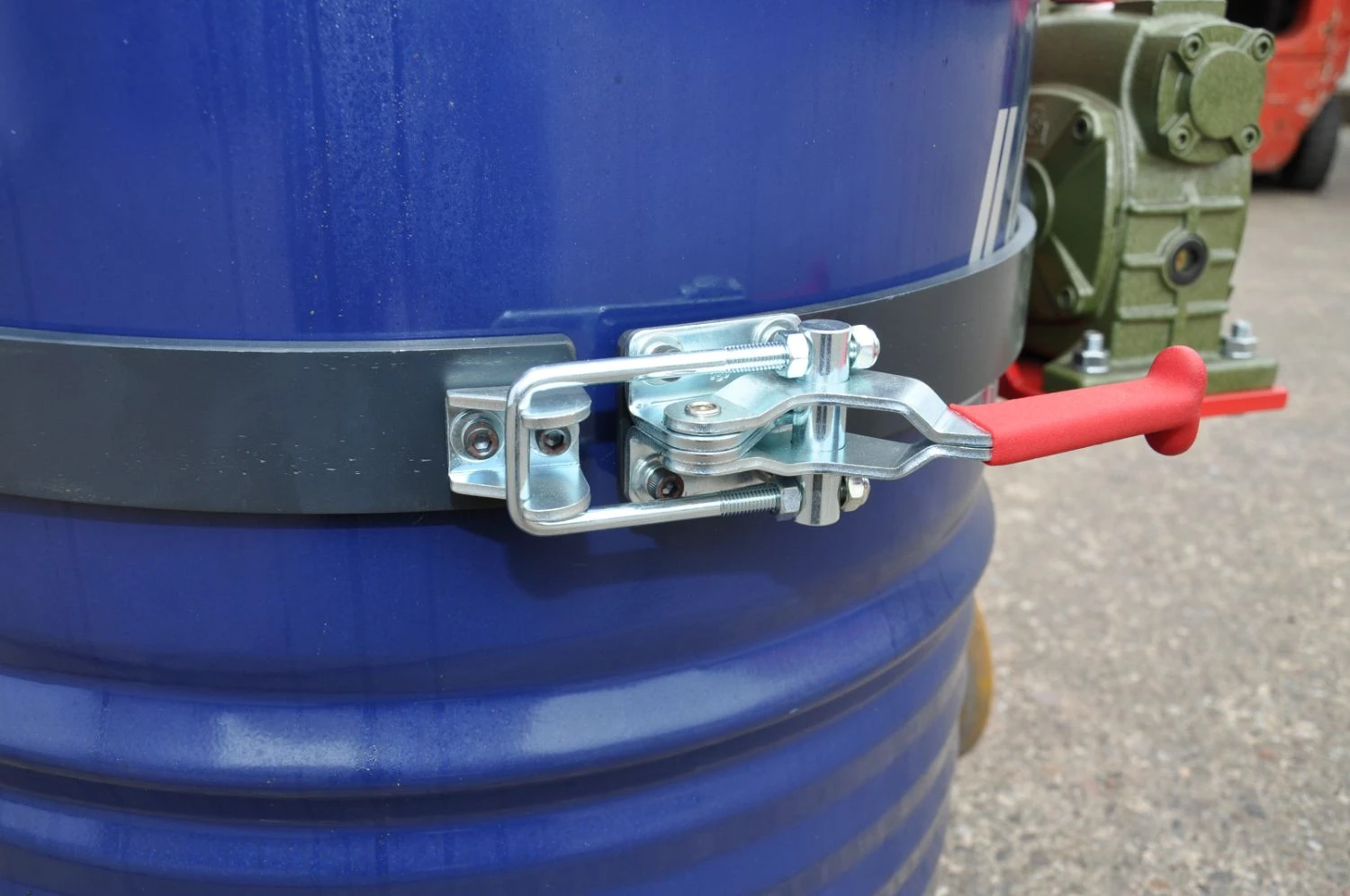

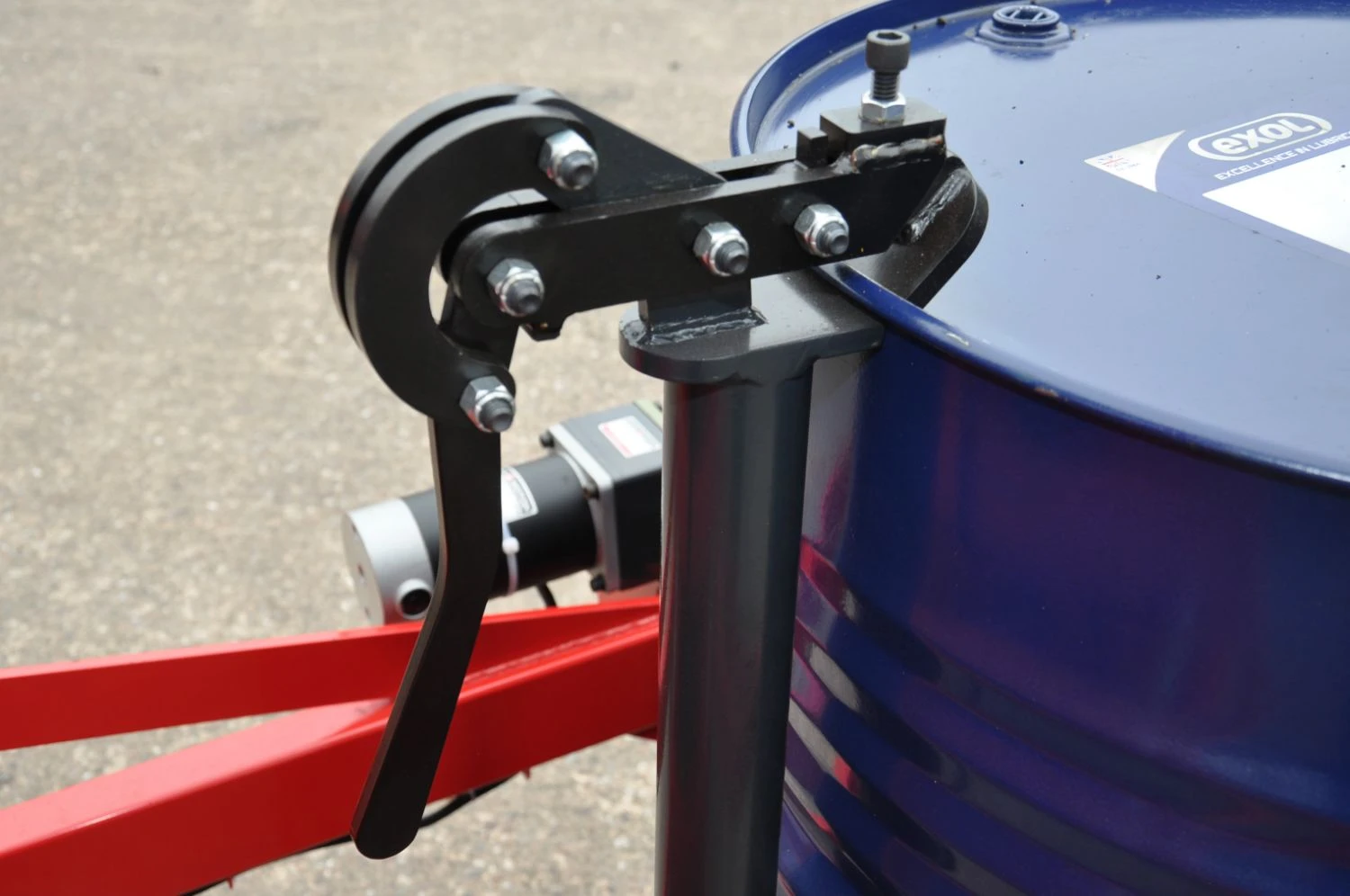

Clamp easy and light to use

• Capacity:

  300 Kg @ 700mm Load Centre

• Minimum Lift Height from Top of Oil Drum:

  3450 mm

• Minimum Lift Height from Bottom of Oil Drum:

  2370 mm

• Overall Length:

  1350 mm

• Overall Width:

  915 mm

• Minimum Mast Height:

  1980 mm

• Turning Radius:

  1300 mm

• Standard Oil Drum:

  580 x 890 mm

• Straddle Length:

  770 mm

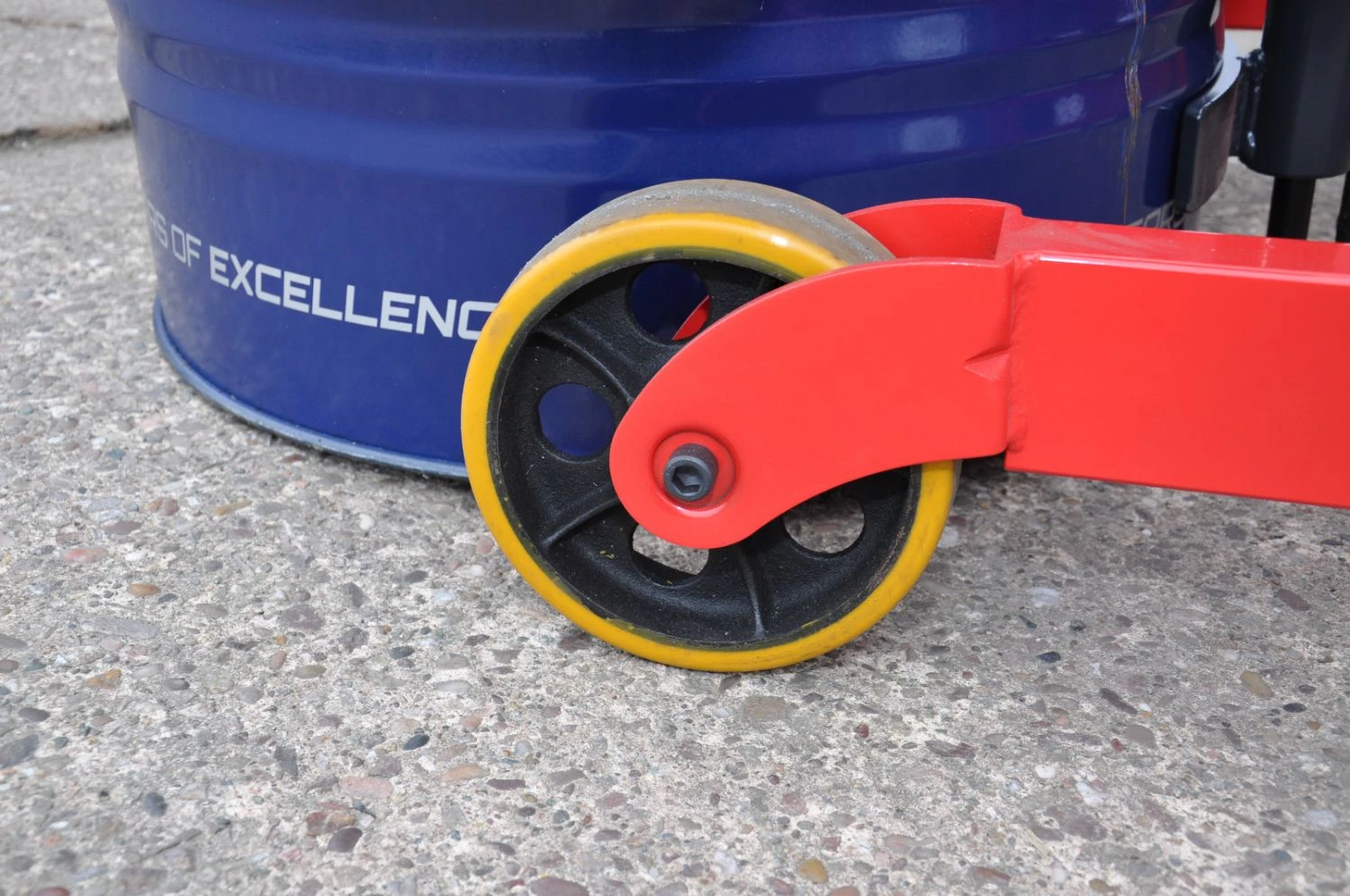

• Front & Rear Wheels:

  180 x 50 mm

• Battery:

  135V/12V

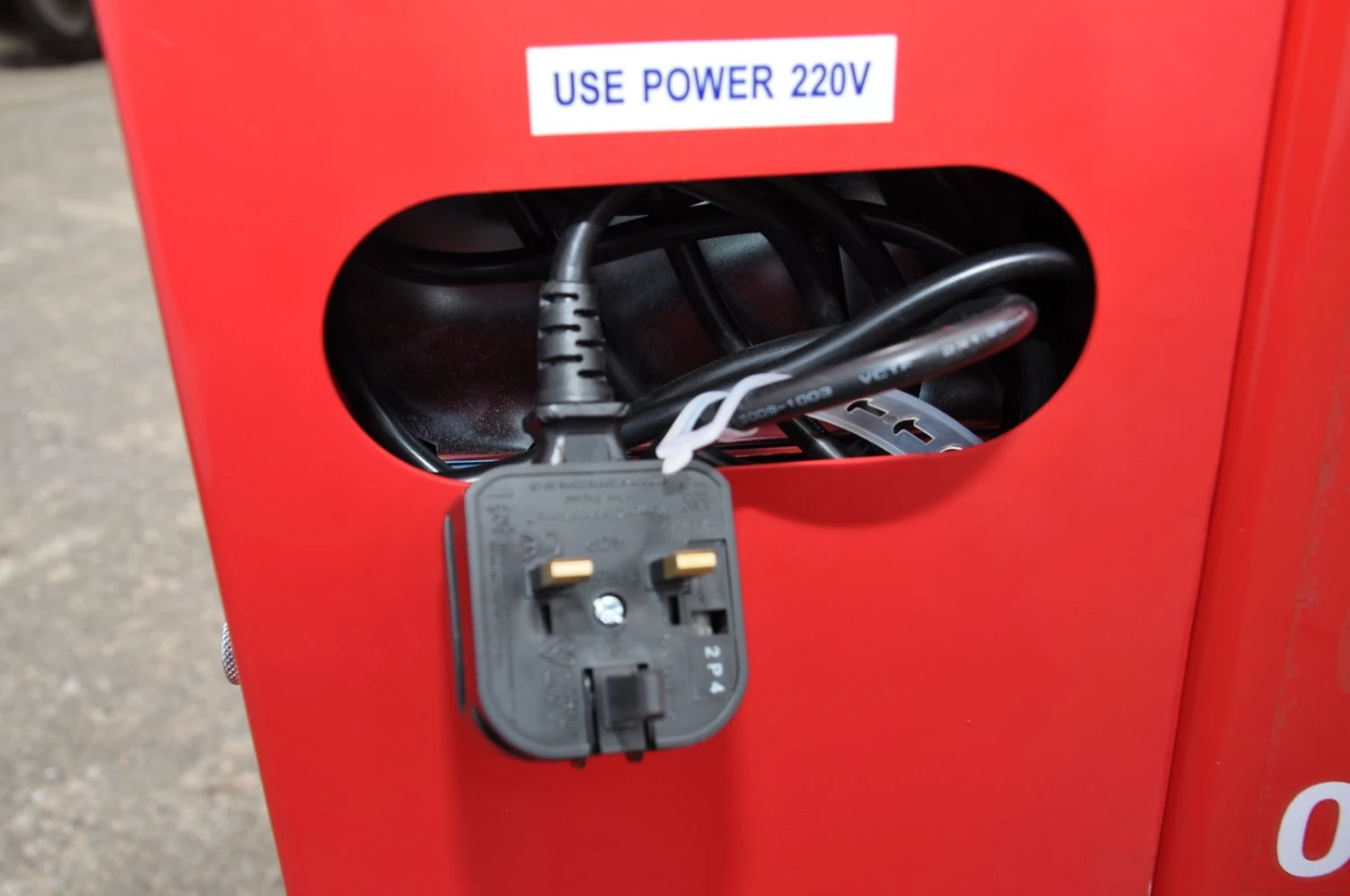

• Charger:

  220V/12V-12A

• Net Weight:

  320 Kg

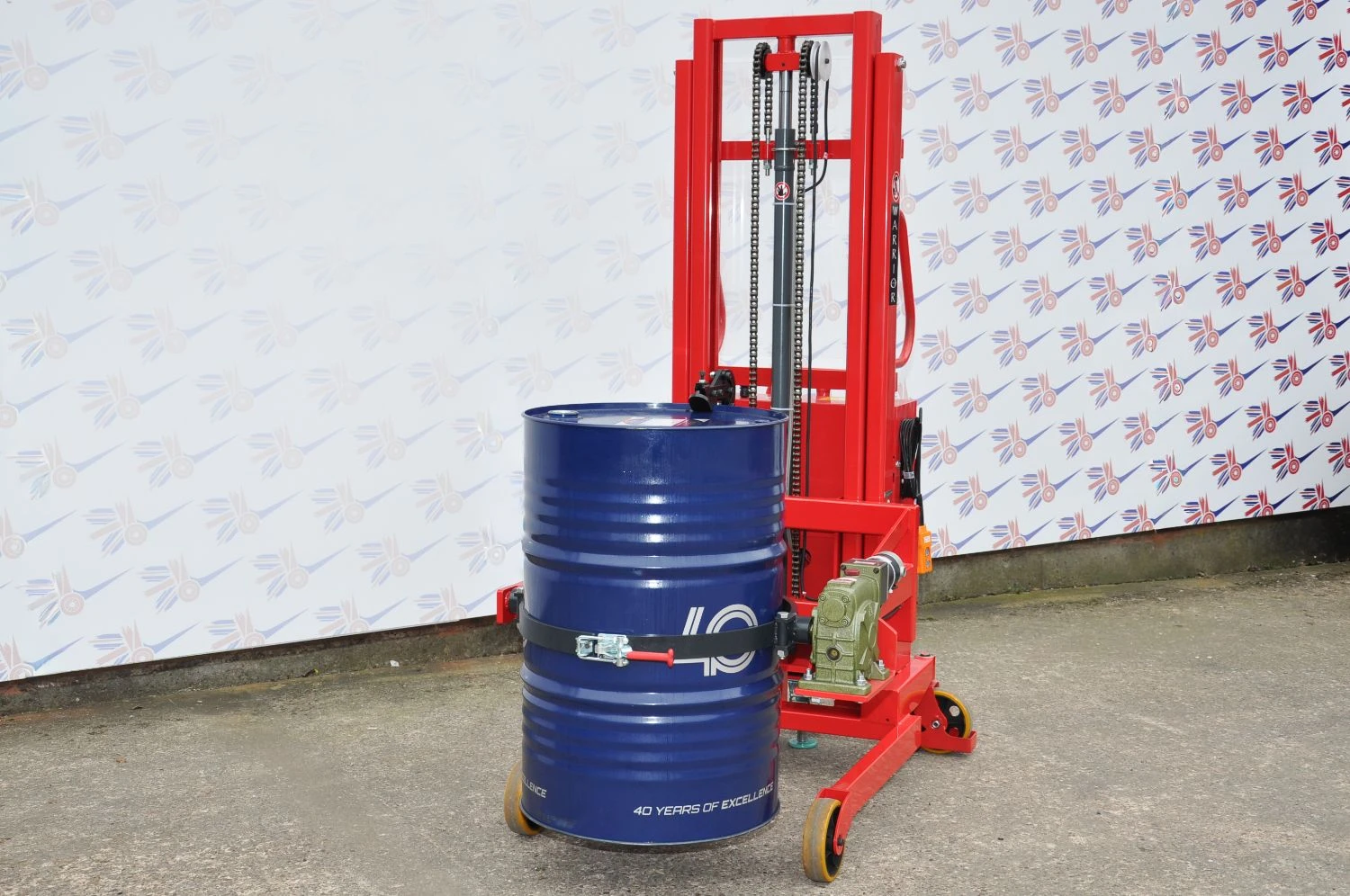

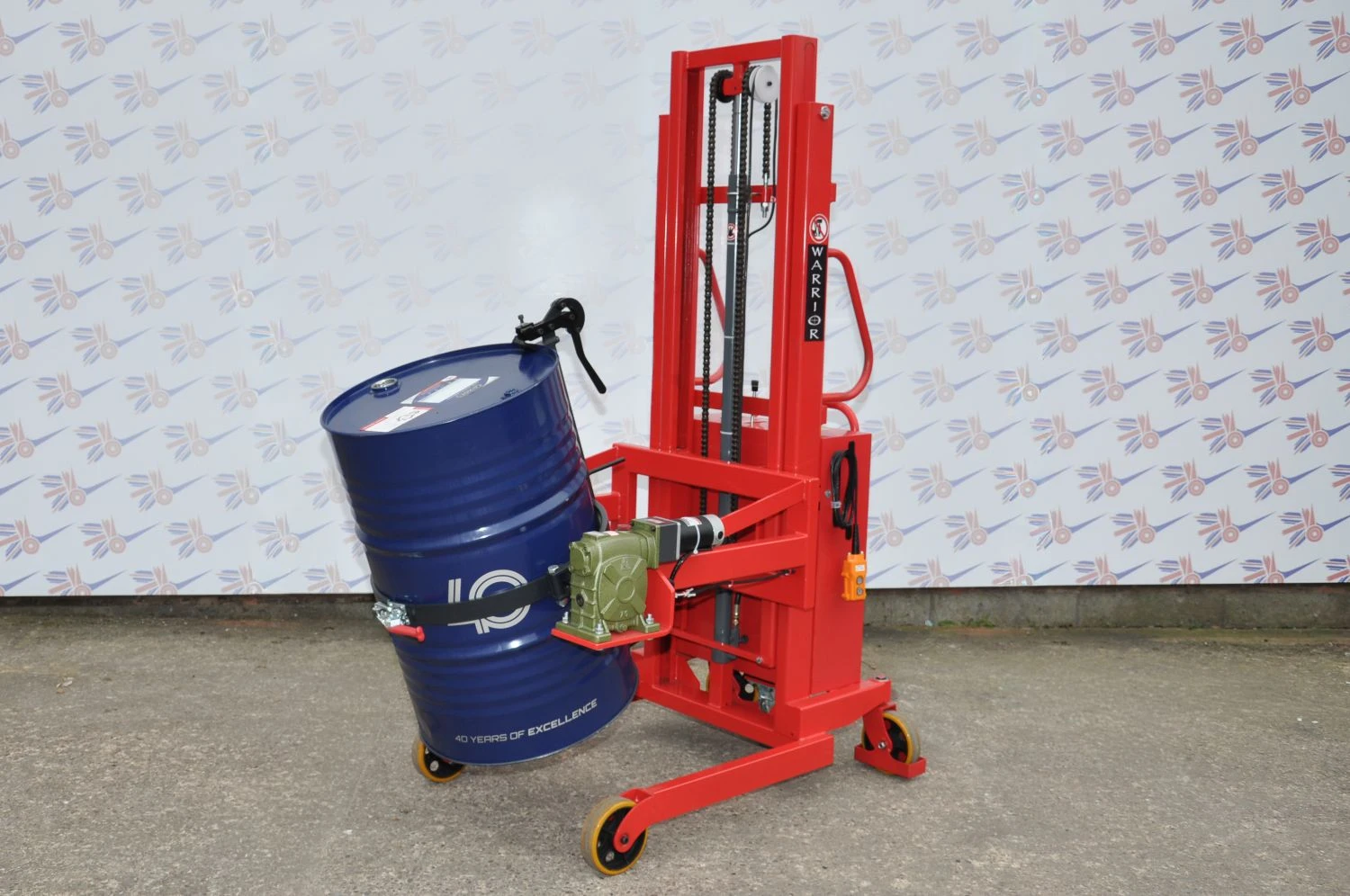

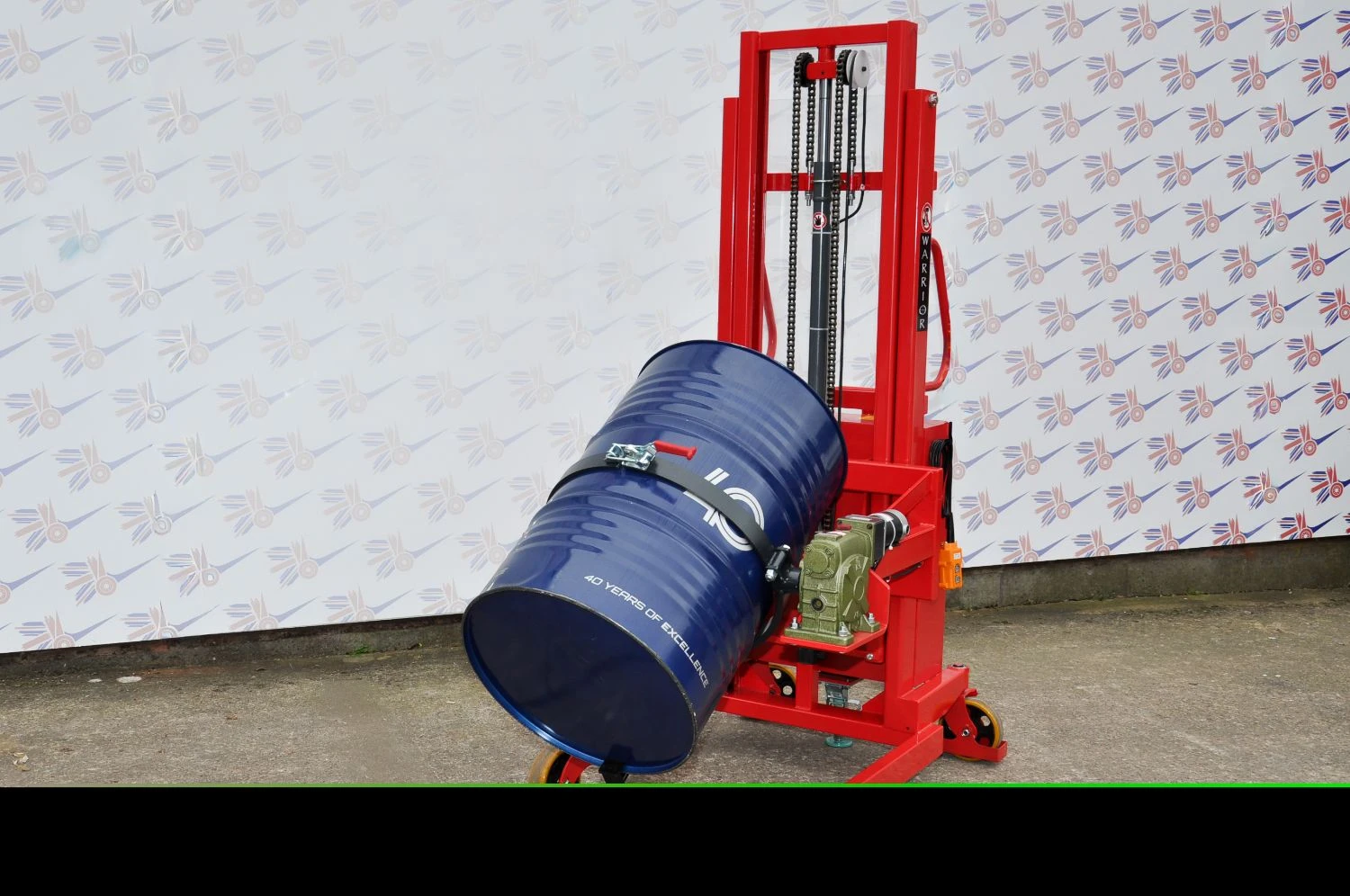

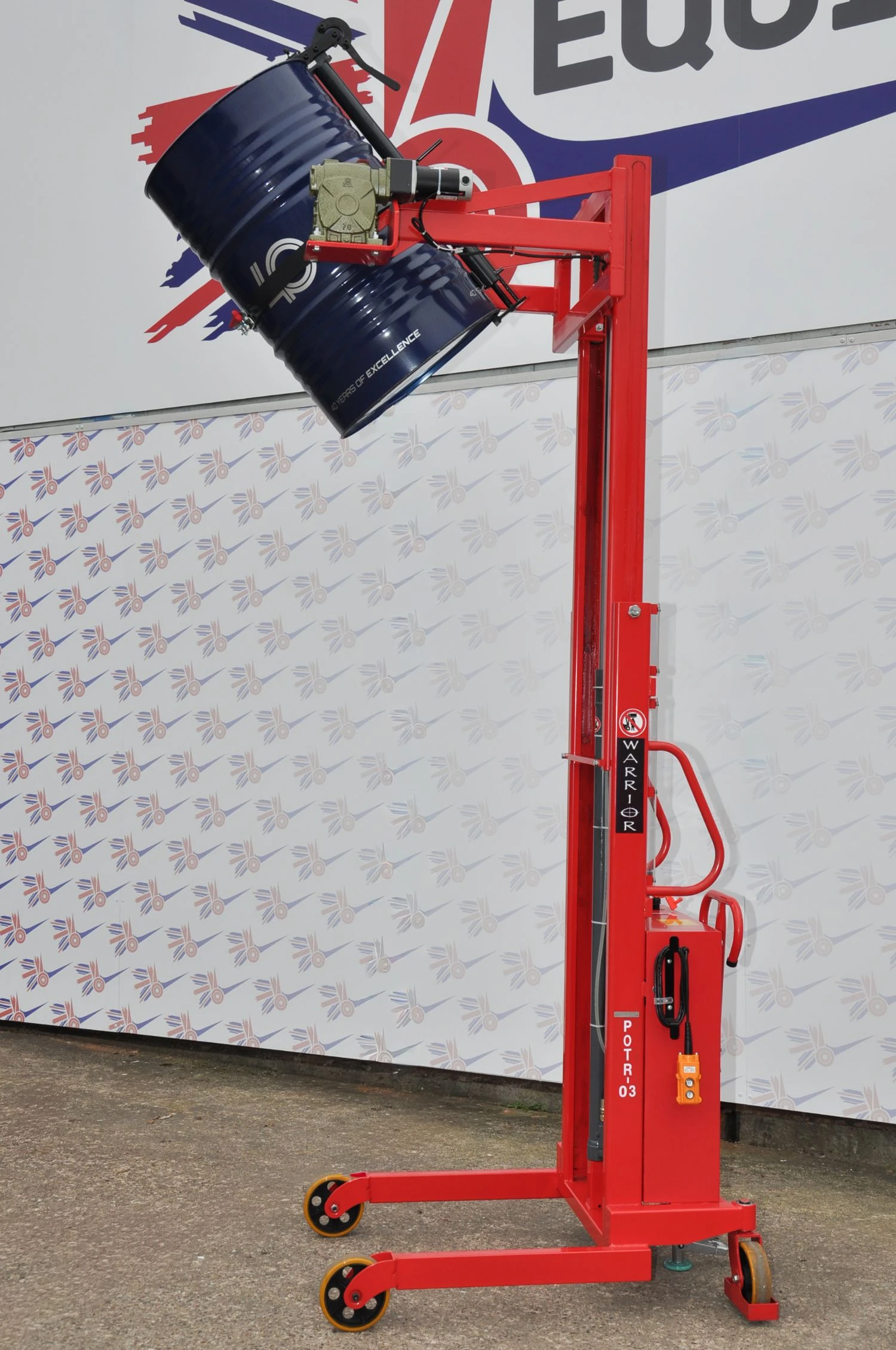

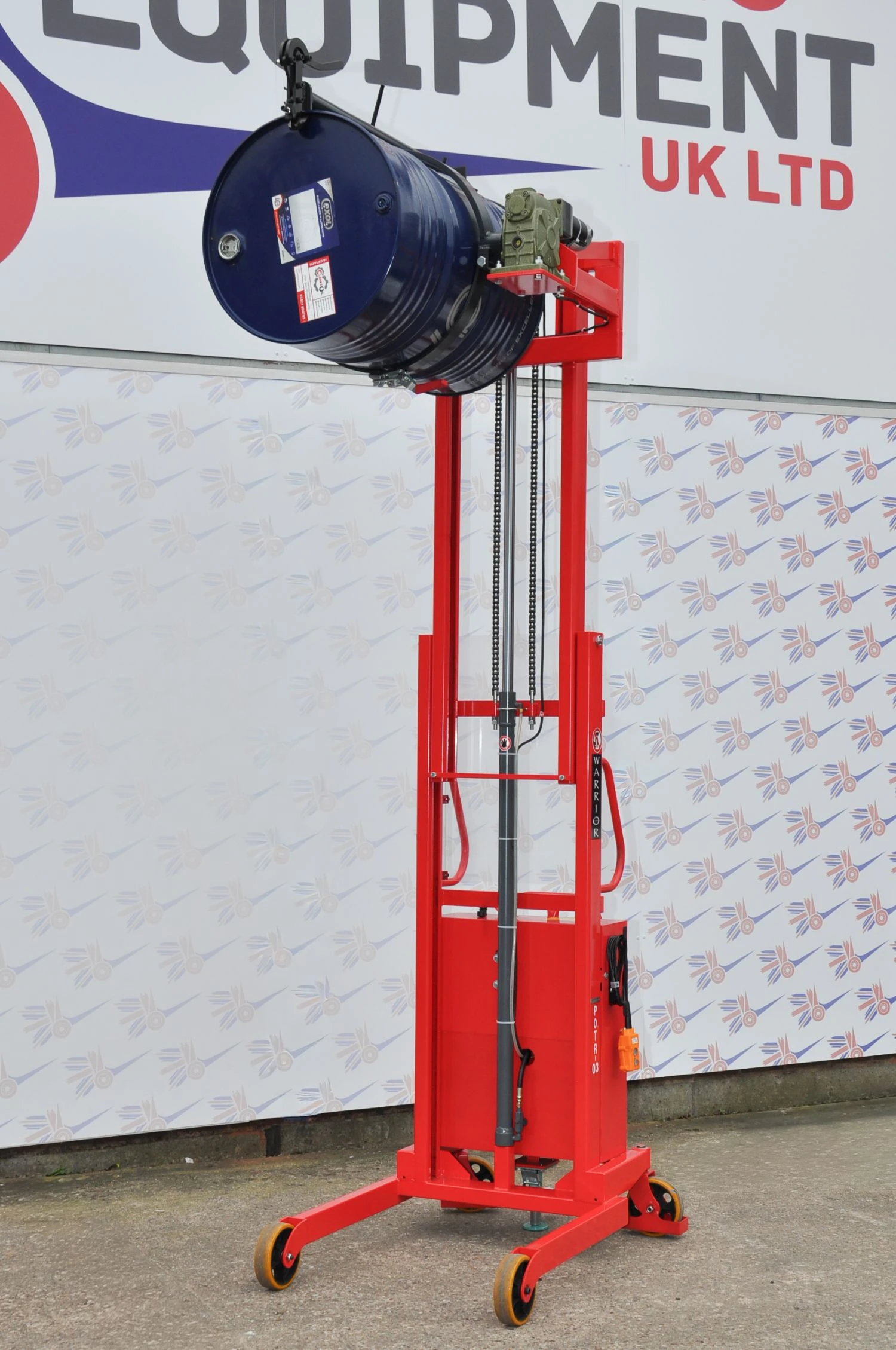

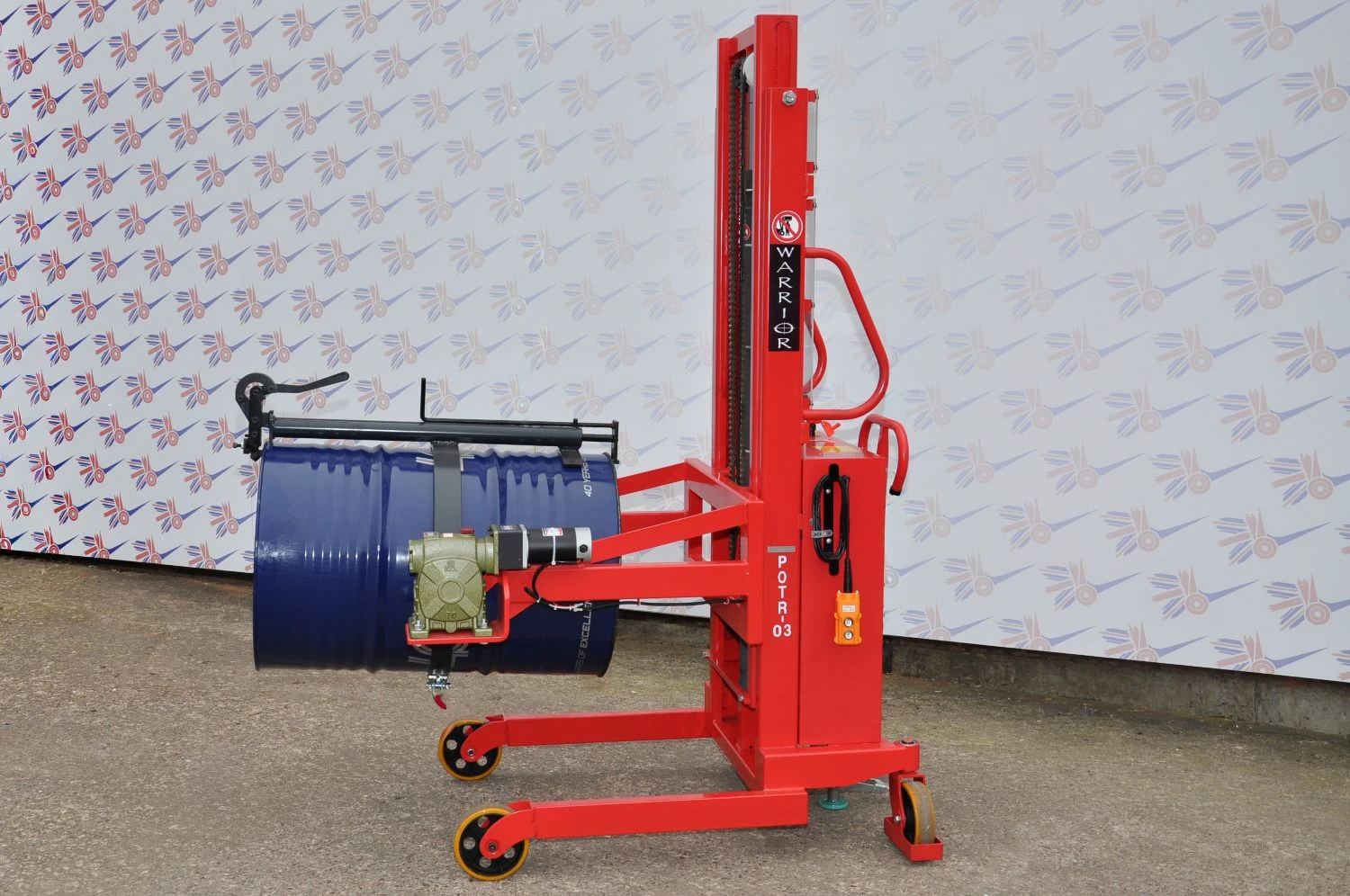

Semi Electric Drum Tipper

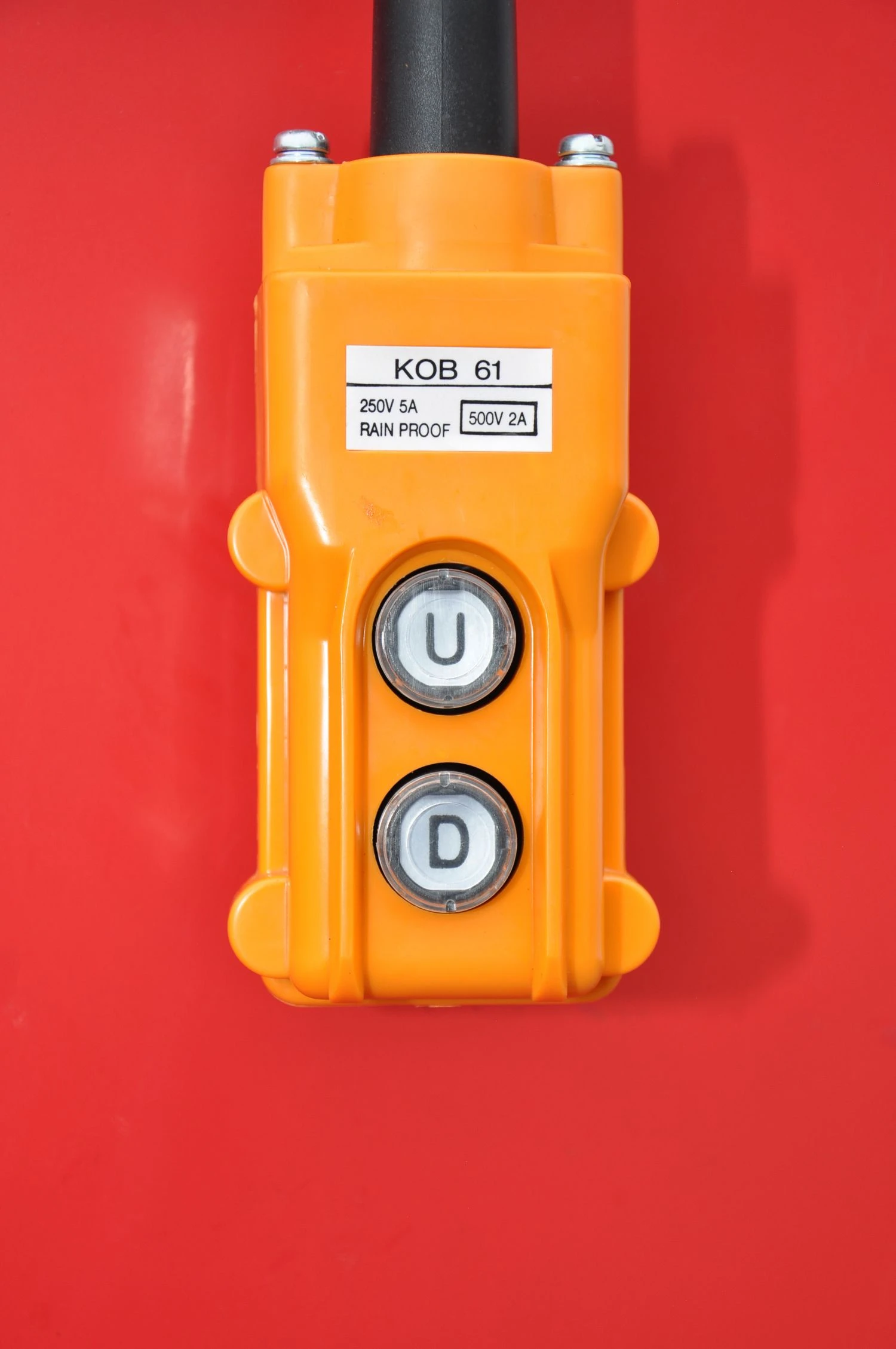

Remote Control

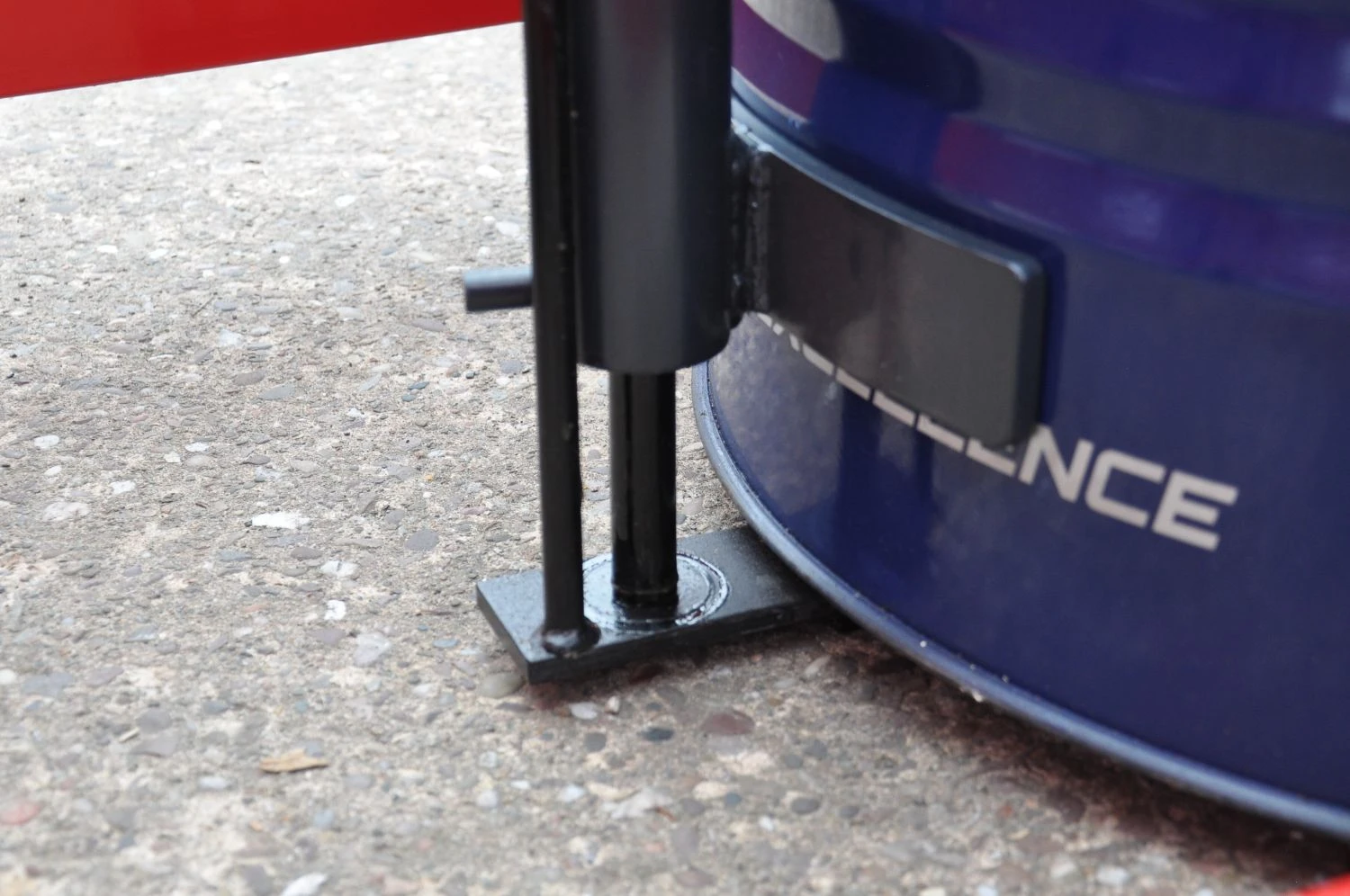

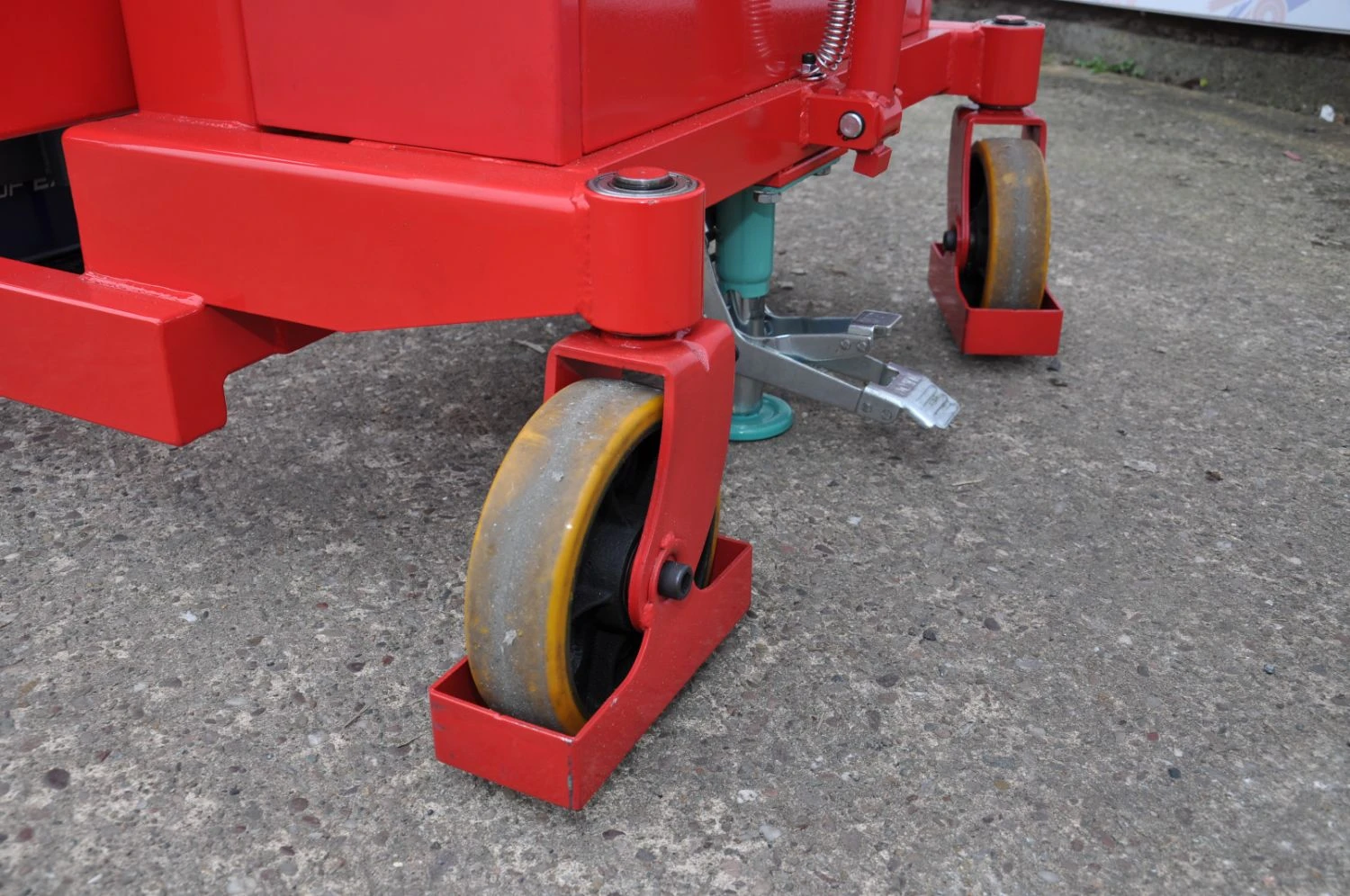

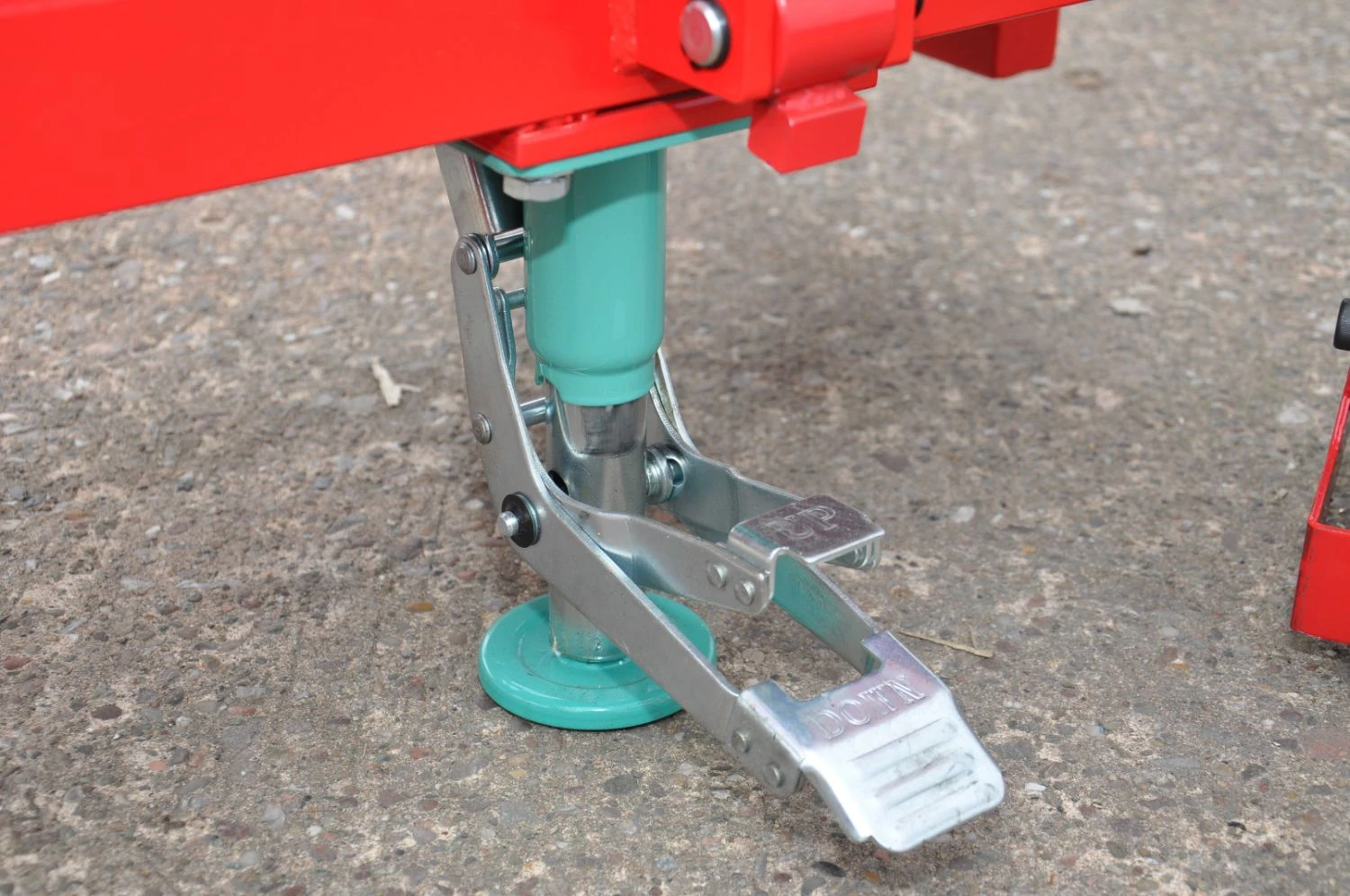

Foot Operated Floor Lock
